Copper Casting

Copper Casting

We are one of the leading producers of Copper Casting Components from India. We have been supplying superior‑quality Copper castings to both domestic and international markets for over 29 years. Our foundry in Jamnagar, Gujarat is equipped with advanced sand‐casting and investment‐casting facilities capable of handling parts up to 20 kg. We specialize in electrical castings, pump parts, impellers, bushes, and other complex geometries. Post‑casting CNC machining is available in‑house at very competitive prices, ensuring tight tolerances, excellent surface finish, and full-service supply.

Product Overview

Copper Castings are precision‑molded components produced by pouring molten copper alloys into sand or investment molds. Known for exceptional electrical and thermal conductivity, corrosion resistance, and mechanical strength, copper castings are essential in electrical switchgear, pump assemblies, heat exchangers, marine hardware, and industrial machinery.

Alloys & Standards

Alloy UNS / EN Key Properties Typical Use Cases
C92700 CuSn5Zn5Pb5 Leaded tin bronze, high machinability Electrical connectors, fittings
C94300 CuSn12 High strength, good corrosion resistance Pump impellers, valve bodies
C83600 CuZn36Pb2As Free‑cutting brass‑bronze blend Electrical components, terminals
C84400 CuZn39Pb3 Excellent fluidity, castability Bushings, bearings
C86300 CuZn35 High tensile strength Pump housings, marine fittings
C92200 CuSn10 Phosphor bronze, wear resistance Gears, bearing shells

We comply with:

  • ASTM B62 (Bronze Sand Castings)

  • ASTM B111 (Copper‑Nickel Castings)

  • IS 318 (Bronze Castings)

  • EN 1982 (Copper Alloys)

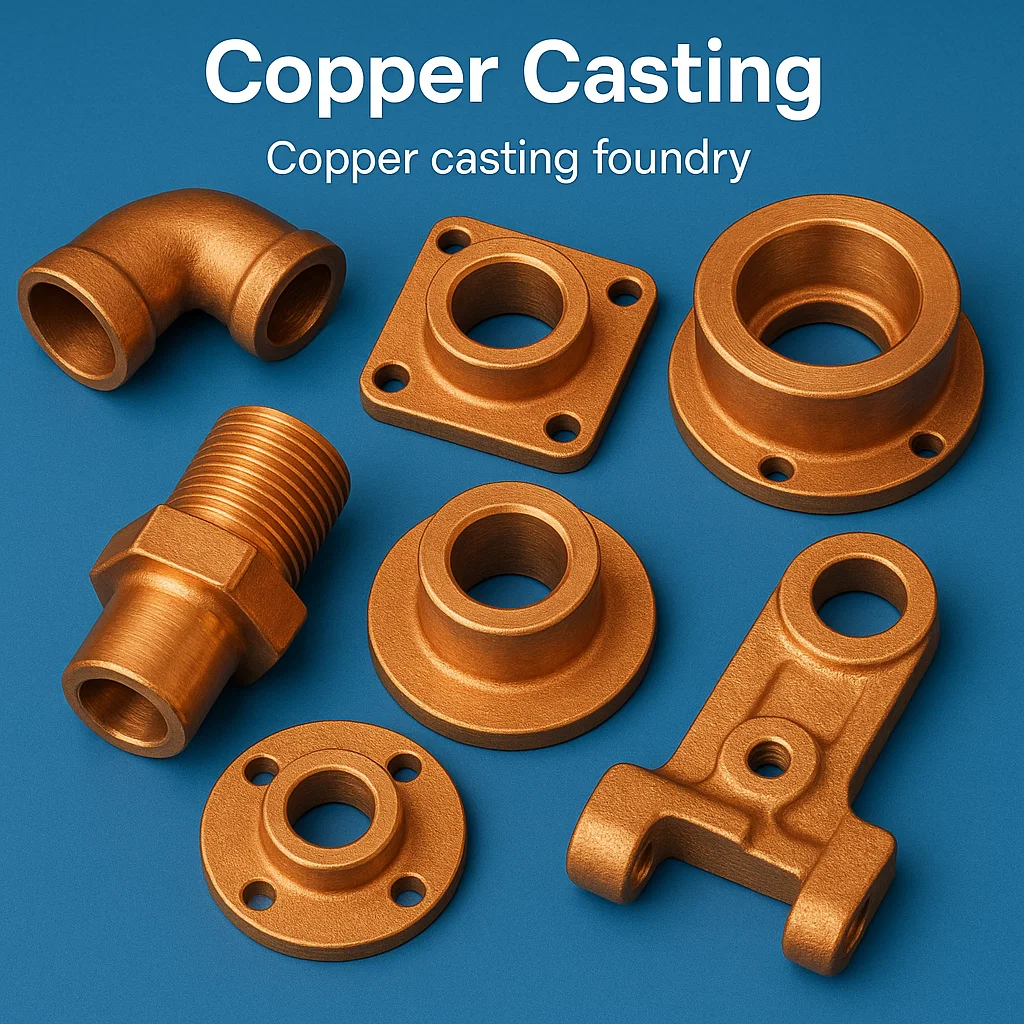

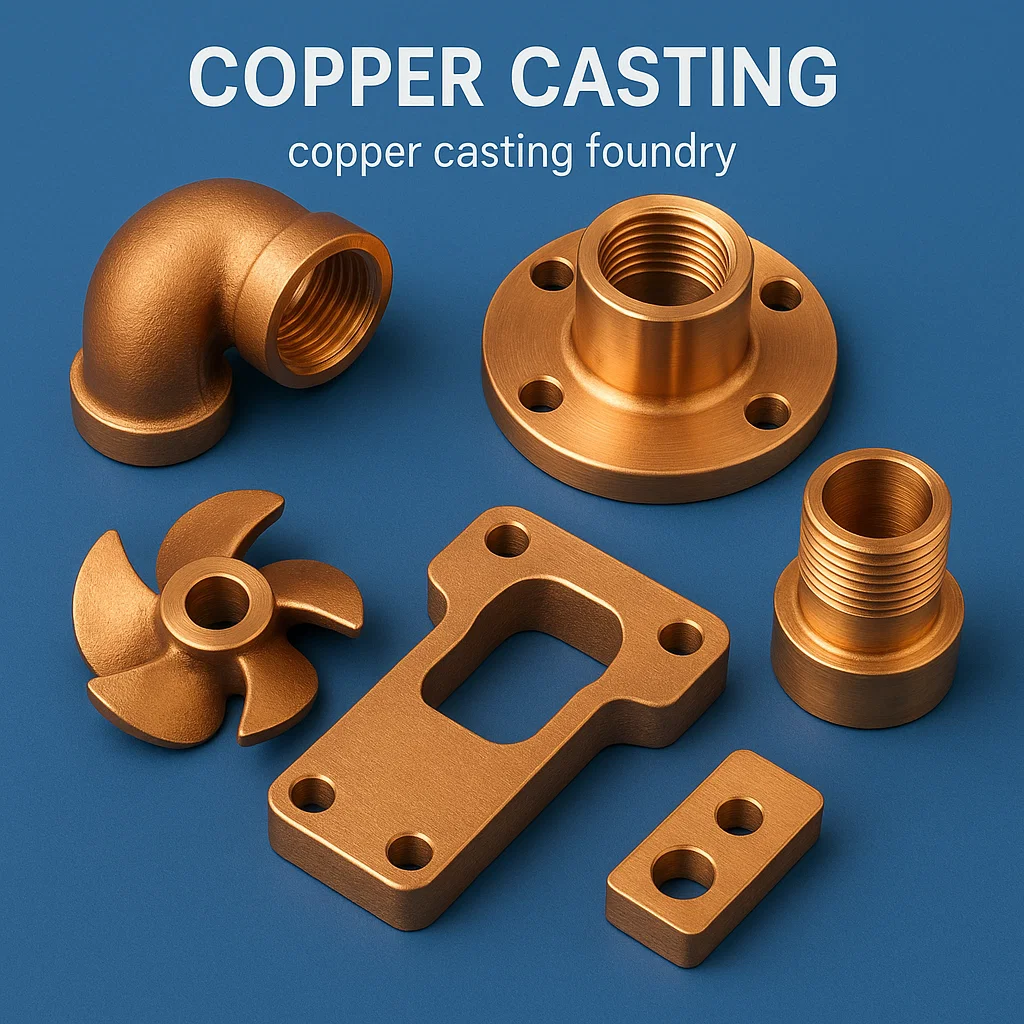

Range of Components

Component Type Weight Range Typical Dimensions

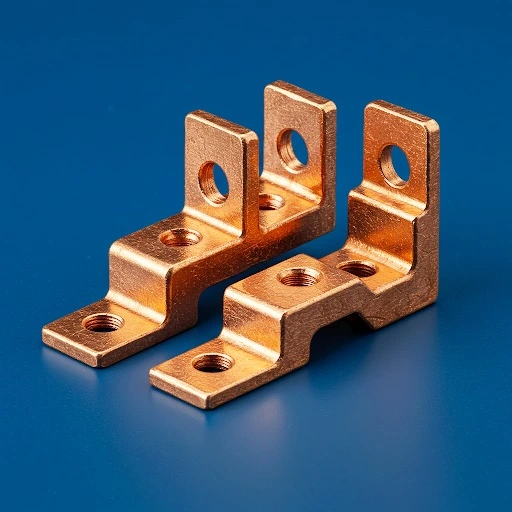

Electrical Castings 0.1 kg – 5 kg Custom shapes & cores
Pump Parts & Impellers 0.5 kg – 20 kg Diameters up to 300 mm
Bushes & Bearings 0.05 kg – 3 kg ID/OD as per drawing
Custom Cast Parts Up to 20 kg Complex geometries

Custom designs available per CAD/CAM drawings or samples.

Manufacturing Process

  1. Pattern Design & Tooling

  2. Sand Casting – Green‑sand or resin‑bonded molds

  3. Investment Casting – Wax patterns & ceramic shells

  4. Shakeout & Fettling – De‑sanding, flash removal

  5. Heat Treatment (if required)

  6. CNC Machining – Turning, milling, drilling, boring

  7. Deburring & Surface Finishing

  8. Inspection & Testing – Dimensional, metallurgical, and NDT

Tolerances & Surface Finish

Feature Tolerance Finish (Ra µm)
Linear Dimensions ± 0.3% of nominal 3.2 – 12.5 (as‑cast)
Machined Surfaces ± 0.02 mm 0.8 – 3.2
Roundness & Cylindricity 0.05 mm N/A
Weight Variation ± 3% N/A

Turnaround Time

  • Standard Sand Castings: 4–6 weeks

  • Investment Castings & Tooling: 6–8 weeks

  • CNC Machining & Delivery: Additional 2–3 weeks

  • Expedited Services: Available upon request

Frequently Asked Questions

  1. What maximum weight can you cast?
    Up to 20 kg per piece in sand or investment casting.

  2. Do you machine castings in‑house?
    Yes—full CNC turning, milling, and drilling services.

  3. Can you handle copper‑nickel alloys?
    Yes—ASTM B111 alloys like C70600 and C71500.

  4. Are non‑destructive tests offered?
    Yes—dye‑penetrant and ultrasonic inspections available.

  5. What is your MOQ?
    Prototype runs from 10 pcs; standard MOQ 100 pcs.

  6. Do you provide material certifications?
    Yes—MTCs per ASTM, IS, or EN standards.

  7. Can you produce hollow or core‑filled parts?
    Yes—sand cores and lost‑wax cores allow complex internal features.

  8. What packaging do you use?
    Wooden crates or foam‑lined boxes, labeled per part.

  9. Is heat treatment available?
    Yes—annealing or stress‑relief per customer specs.

  10. Do you ship globally?
    Yes—we export worldwide via sea, air, or express courier.

Why Choose Our Copper Castings?

  • 29+ Years’ Experience in copper alloy castings

  • Advanced Foundry & CNC Shop under one roof

  • Wide Alloy Capability: Tin, phosphor, nickel, brass‑bronze blends

  • Precision Machining: Tight tolerances & fine finishes

  • Comprehensive Quality Assurance: Metallurgical testing & NDT

  • Flexible MOQs & Rapid Prototyping

  • End‑to‑End Service: Pattern design through finished part

  • Global Compliance: ASTM, IS, EN certifications

Packaging & Shipping

Finished components are packed in anti‑rust paper, foam inserts, and sturdy wooden crates for heavy parts. We ship under FOB, CIF, or DDP Incoterms with full documentation—packing lists, MTCs, NDT reports, and CoO.

Customer Testimonial

Dr. Elena Petrova – Russia
“Their Copper Castings for our electrical switchgear are flawless. The combination of precise casting and in‑house machining saves us time and cost. Highly recommended!”

Glossary of Terms

Term Definition
Investment Casting Lost‑wax casting for high‑precision, complex parts.
Green‑Sand Casting Traditional sand mold process for robust, cost‑effective parts.
NDT Non‑Destructive Testing—methods like ultrasonic and dye‑penetrant inspection.
MTC Material Test Certificate—documents alloy composition and mechanical properties.
Core Sand or wax insert to form internal cavities in castings.

Partner with us for precision Copper Castings—from pattern design through finished parts!
