Aluminum Brackets & Aluminum Pipe Brackets (Pressed) – AA5052 AA6061 | Brass & Copper Parts India

Pressed aluminum brackets and aluminum pipe brackets are precision sheet metal structural and support components manufactured from AA5052, AA6061, and AA3003 aluminum alloy sheet using progressive die stamping, press brake forming, and CNC punching for use in electrical enclosures, cable management, pipe support, panel mounting, and structural framing applications. Brass & Copper Parts India manufactures aluminum brackets and pipe brackets to customer drawings and standard configurations — supplying USA electrical OEMs, EPC contractors, solar energy system manufacturers, HVAC equipment producers, commercial kitchen equipment makers, and construction material distributors. Aluminum brackets deliver structural performance at one-third the weight of equivalent steel brackets, with inherent corrosion resistance eliminating the need for paint or plating in most outdoor and industrial environments.

Product Overview

Aluminum brackets are formed sheet metal components that provide structural support, positional registration, or mechanical connection between two or more parts of an assembly. Aluminum pipe brackets (also called pipe clamps, pipe clips, or pipe saddles) specifically support pipe or conduit runs against walls, ceilings, cable trays, or structural steelwork. Both bracket types are produced by press forming (stamp bending, deep drawing, or progressive die) from aluminum sheet in thicknesses of 1.0–6.0 mm. Standard configurations include L-brackets (90° angles), U-channels, Z-sections, hat sections, pipe saddles, and back-plate clamps. Custom brackets are designed from customer CAD drawings with in-house die tooling for production programs.

Key Features

• Weight Reduction: Aluminum brackets are approximately 65% lighter than equivalent steel brackets — critical for overhead cable tray support, solar panel racking, and weight-constrained structural applications.
• Corrosion Resistance Without Painting: AA5052 and AA6061 provide natural atmospheric corrosion resistance in outdoor, industrial, and marine environments — eliminating paint cost and maintenance overhead in most applications.
• AA5052 and AA6061 Structural Grades: AA5052-H32 (230 MPa UTS, excellent fatigue resistance) for marine and vibration-critical applications; AA6061-T6 (310 MPa UTS) for higher-load structural brackets.
• In-House Progressive Die and Press Brake Tooling: Complex high-volume bracket forms are produced with in-house progressive die tooling; lower-volume custom brackets are formed on CNC press brakes with ±0.3° angular tolerance.
• Pipe Size Range ½” to 8″ NPS: Pressed pipe brackets available for ½” through 8″ NPS pipe and conduit OD, with single-bolt, twin-bolt, and U-bolt attachment configurations.
• Anodize and Powder Coat Finishes: Natural mill finish, Type II anodize (clear or color), Type III hard anodize, and polyester powder coat available for appearance, corrosion protection, or identification color-coding requirements.

Technical Specifications

Aluminum Alloy Grade Equivalents

Product Types and Variants

Pressed Aluminum L-Brackets and Angle Brackets

L-shaped aluminum angle brackets are the most widely used bracket form — a simple 90° bent profile with fixing holes on both flanges used to support shelving, cable tray sections, panel sub-assemblies, and equipment mounting plates. Manufactured from 1.5–4.0 mm AA5052-H32 or AA6061-T6 sheet using press brake forming or progressive die stamping. Flange lengths from 25 mm to 200 mm, hole patterns to customer specification or standard M6/M8/M10 patterns. These are supplied to electrical enclosure OEMs, racking system manufacturers, and commercial construction fitting distributors as stock hardware items.

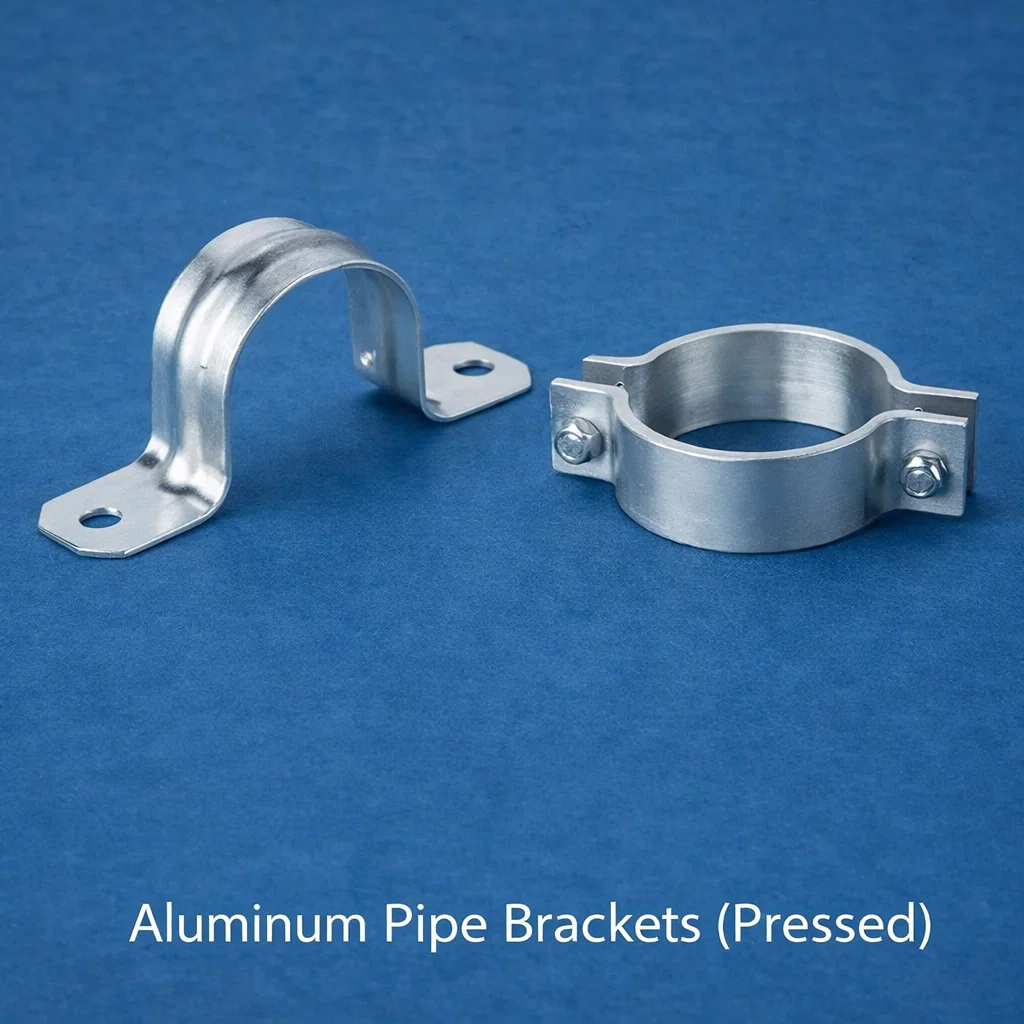

Aluminum Pipe Saddle Brackets (Single-Bolt and Twin-Bolt)

Aluminum pipe saddle brackets support pipe runs against walls, decks, or structural members by cradle-supporting the pipe in a pressed saddle seat machined or formed to match the pipe OD. Single-bolt versions are used for lightweight piping on ½” to 2″ NPS; twin-bolt back-plate designs are specified for larger-bore or heavier piping on 2″ to 6″ NPS. Manufactured from 2.0–3.0 mm AA5052 or AA6061 sheet with pressed saddle seat and drilled fixing holes. Commonly used in food processing plant utility piping, commercial kitchen gas lines, solar facility water supply, and HVAC chilled water distribution where lightweight and corrosion-resistant pipe supports are required.

Aluminum U-Bolt Pipe Clamp Assemblies

Aluminum U-bolt pipe clamp assemblies consist of a formed aluminum U-bolt and a pressed aluminum back-plate, used to clamp pipe runs tightly to structural supports for vibration dampening and axial restraint. The U-bolt wraps around the pipe and threads through the back-plate holes, clamping the pipe firmly to the mounting surface. Available for pipe diameters ½” to 4″ NPS in AA5052 and AA6061, with M8 or M10 U-bolt threads. These are widely used in solar mounting systems, shipboard pipe support, and marine facility piping where non-magnetic, lightweight, and salt-atmosphere-resistant pipe clamps are specified over galvanized steel.

Aluminum Electrical Panel and Mounting Brackets

Precision-formed aluminum brackets for electrical distribution boards, switchgear mounting, DIN rail installation, and panel frame sub-assembly are manufactured from 1.5–4.0 mm AA5052 or AA6061 sheet with punched holes, formed lips, and weld studs or threaded inserts as required by OEM specifications. These brackets maintain precise dimensional relationships between panel components — critical for terminal block alignment, bus bar spacing, and door hinge registration in metal electrical enclosures. Custom bracket programs are supported by DfM review, first article inspection, and SPC quality tracking for ongoing OEM supply programs.

Solar Panel Mounting Brackets (Pressed Aluminum)

Aluminum solar panel mounting brackets — mid-clamps, end-clamps, splice bars, and rail mounting brackets — are manufactured from AA6061-T6 or AA6063-T5 extrusion-compatible alloys by press forming and CNC punching. These are used in rooftop, ground-mount, and carport solar PV racking systems where aluminum is the universally preferred material for its combination of light weight, strength, corrosion resistance, and anodize finish durability. We manufacture both standard racking system bracket configurations and custom OEM-specific solar mounting hardware to supplied drawings and load calculations.

Applications by Industry

• Electrical Enclosures and Switchgear: Panel mounting brackets, DIN rail supports, bus bar spacers, and internal structural sub-frames in metal electrical enclosures and distribution boards.
• Solar PV Systems: Racking system mounting brackets, mid-clamps, end-clamps, and wire management clips for utility-scale, commercial, and residential solar photovoltaic installations.
• HVAC and Building Services: Pipe support brackets for chilled water, heating water, and compressed air distribution in commercial and industrial buildings where lightweight and aesthetically clean support systems are specified.
• Food Processing and Pharma: Pressed AA5052 or AA6061 pipe brackets for stainless steel pipe support systems in food processing and pharmaceutical plants where non-ferrous support hardware prevents galvanic corrosion with SS piping.
• Marine and Offshore: Lightweight aluminum pipe clamps and structural brackets for topside piping, cable support, and equipment mounting on offshore platforms and naval vessels.

Manufacturing Process

Aluminum brackets are produced from sheet coil (AA-specified, ASTM B209 / EN 485 with 3.1 certs) by progressive die stamping for high-volume standard configurations, or CNC press brake forming for custom and lower-volume parts. Die tooling is designed in-house using SolidWorks and manufactured from D2 tool steel hardened to 58–62 HRC. For press brake formed parts, CNC back-gauge control holds angular and dimensional tolerances consistently across production batches. Punched holes are deburred and parts are inspected per AQL 2.5. Surface treatment (anodize, powder coat, chromate) is applied in-house or by certified subcontract processors, and finished parts are dimensionally verified before packing with full material traceability documentation.

Quality Standards and Certifications

• ISO 9001:2015 Certified
• Material conformance to ASTM B209 / EN 485 with EN 10204 3.1 test certs
• Dimensional inspection reports per batch; first article inspection for OEM programs
• Anodize per MIL-A-8625 (Type II and Type III) available on request
• Powder coat per AAMA 2604/2605 for solar and outdoor construction applications
• RoHS and REACH compliant

Why Choose Brass & Copper Parts India

• Solar Industry Experience: Established supply programs with USA solar racking OEMs — familiar with UL 2703 system requirements and PV racking load specifications for bracket design.
• In-House Die and Press Brake Capability: Full bracket fabrication from sheet to finished part — no subcontracting of forming, punching, or surface treatment operations.
• AA5052 and AA6061 Structural Grades: Both marine-grade and high-strength structural aluminum alloys available for bracket manufacture to match customer environment and load requirements.
• Custom OEM Programs: From prototype (25 pieces) to production volume (100,000+ pieces/month) on the same tooling with consistent quality and full traceability.

Frequently Asked Questions

What is the best aluminum alloy for outdoor pipe brackets?

AA5052-H32 is the preferred alloy for outdoor pipe brackets in coastal and marine environments due to its excellent seawater corrosion resistance (Mg content inhibits pitting). For higher load structural brackets, AA6061-T6 is used. Both alloys perform well without painting in most outdoor industrial environments.

Can aluminum brackets be used as substitutes for galvanized steel brackets?

Yes, aluminum brackets are commonly substituted for galvanized steel in corrosive environments, overhead installations (weight reduction), and applications where magnetic-neutral materials are required. Load ratings must be recalculated for the specific alloy and geometry, as aluminum has a lower Young’s modulus (70 GPa vs 200 GPa for steel) — compensated for by increased section thickness or ribbing in the bracket design.

What anodize specification do you use for solar panel mounting brackets?

For solar outdoor exposure, we apply Type II clear anodize (per MIL-A-8625F Type II) with a minimum coating thickness of 10 µm (Class 2), which provides 20+ year outdoor service life in accordance with AAMA 611 specifications for architectural aluminum. Thicker Type III hard anodize (25 µm) is available for highest-wear contact points on racking systems.

What is the minimum order quantity for custom aluminum brackets?

Press brake custom brackets: MOQ 25 pieces, 2–3 week lead time. Progressive die brackets (new tooling): MOQ 500 pieces; tooling 3–5 weeks. Standard catalog pipe brackets: no minimum for small orders; bulk pricing at 100+ pieces per SKU.

Can you supply DIN rail mounting brackets in aluminum?

Yes. DIN 35 (standard) and DIN 75 (heavy duty) aluminum DIN rail mounting brackets and back panels for distribution board and control panel assembly are available in AA5052 and AA6061 from standard tooling. Custom DIN rail assemblies with multiple rail positions and cable entry knockouts are produced to OEM drawings.

What fixing bolt standard do you use for pipe brackets?

Standard metric (M6, M8, M10, M12) fixing holes for European/global standard bolts; inch (¼”, 5/16″, 3/8″) for US market hardware. Mixed metric/inch configurations on the same bracket are available for OEM programs that need to meet both market requirements.
