Aluminum Terminal Bars & Aluminum Neutral Bars/Links – Distribution Board & Switchgear | Brass & Copper Parts India

Aluminum terminal bars and aluminum neutral bars (neutral links) are extruded, machined, and drilled multi-connection current-carrying bus bars used in electrical distribution boards, panelboards, load centers, consumer units, motor control centers (MCCs), and switchgear assemblies as neutral conductor connection points, equipotential bonding bars, and multi-circuit terminal connection assemblies. Brass & Copper Parts India manufactures aluminum terminal bars and neutral bars from AA1350 (electrical-grade aluminum), AA6101-T6, and AA6061-T6 alloys to UL 869A, IEC 60947-7-1, BS EN 60947-7-1, and ANSI/NEMA standards — supplying USA electrical OEMs, panelboard manufacturers, switchgear assemblers, EPC contractors, and electrical distribution equipment distributors. Aluminum neutral bars are extensively used in residential and commercial panelboards in North America as the standard UL-listed neutral bus bar, providing reliable, low-resistance connections for 4–24 neutral and ground conductors in a single compact assembly.

Product Overview

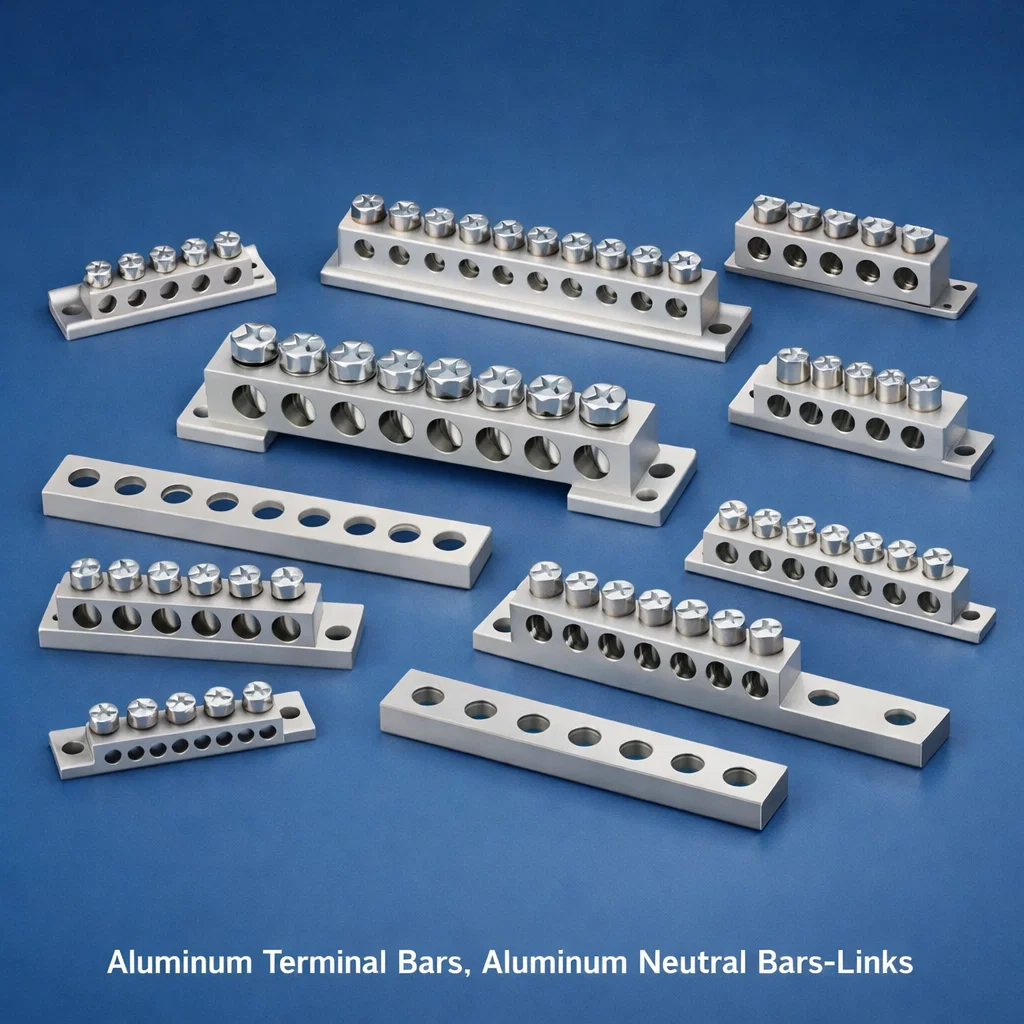

An aluminum terminal bar (or neutral bar) is a machined aluminum alloy bar drilled and tapped with a series of threaded holes accommodating screw-terminal connectors. The bar is mounted to the distribution board enclosure using insulated standoffs (for isolated neutral bars) or directly to the enclosure (for combined neutral/ground bars). In a residential or commercial panelboard, the neutral bar receives all the neutral (white) conductors from individual circuit breakers, connecting them to the system neutral conductor from the utility transformer. In industrial switchgear and MCCs, terminal bars provide a common connection rail for control wiring, instrument transformer secondary terminals, and protective relay circuits.

Key Features

• Electrical-Grade AA1350 Aluminum: AA1350 (EC grade aluminum, ≥99.5% Al, 61% IACS conductivity) provides optimal electrical conductivity for neutral and terminal bus bars — approaching pure copper conductivity at one-third the weight.
• UL 869A Listed: Terminal bars manufactured to UL 869A (Service Equipment) performance requirements for panelboard neutral buses — mandatory for inclusion in UL-listed residential and commercial panelboards sold in the USA market.
• Multi-Circuit Configurations: Available in 4-way, 6-way, 8-way, 12-way, 20-way, and 24-way configurations (number of connection screws) to match standard residential and commercial panelboard circuit counts from 2-pole to 42-pole panel layouts.
• Accepting Mixed Wire Sizes: Terminal bar screw terminals designed to accept wire range from #14 AWG to #4/0 AWG (or as specified by the UL listing) covering the full range of residential and commercial branch circuit and feeder conductor sizes.
• Tin-Plated or Bare Aluminum: Tin-plated (electroplated or hot-dip tin) aluminum terminal bars are available for improved contact resistance at the screw-to-wire interface and for Al-Cu joint compatibility at mixed wiring connections.
• Custom Configuration Supply: Non-standard hole spacing, bar length, mounting hole patterns, and conductor size ranges are produced to OEM panelboard manufacturer drawings for production supply programs.

Technical Specifications

Aluminum Alloy Grade Equivalents for Terminal Bars

Product Types and Variants

Residential Panelboard Aluminum Neutral Bars (UL 869A Listed)

Residential neutral bars are the standard configuration installed in USA residential load centers (circuit breaker panels) for 100 A and 200 A service entrance panels. They are produced from AA1350-H14 electrical-grade aluminum with machined screw terminals accepting #14 AWG to #4/0 AWG wire per UL 869A wire range requirements, with brass screws providing reliable aluminum-to-copper conductor connection. Standard configurations are 12-way, 16-way, and 20-way to match common 24-circuit, 30-circuit, and 40-circuit residential panelboard sizes. UL 869A listing documentation is provided with each production lot supply to panelboard OEM customers.

Commercial and Industrial Terminal Bars (IEC 60947-7-1)

Commercial and industrial aluminum terminal bars for IEC-standard distribution boards, motor control centers, and industrial panelboards are manufactured to IEC 60947-7-1 (low-voltage switchgear and controlgear terminal blocks) dimensional and performance requirements. These bars are rated from 100 A to 400 A per terminal bar and are available in configurations from 4-way to 24-way to match European and international switchgear panel layouts with metric (M5, M6, M8) screw terminals. AA1350 or AA6101-T6 is used depending on the current rating and mechanical strength requirements.

Aluminum Neutral Link Bars for Distribution Boards (DIN Rail Mount)

DIN rail-mounted aluminum neutral link bars are assembly-ready neutral bus units that snap onto standard 35 mm DIN rails in consumer units, small distribution boards, and sub-distribution panels. Available in 4-way to 12-way configurations with compression-type or screw-type terminals accepting wire ranges from 1.5 mm² to 25 mm² (IEC) or #14 to #2 AWG (ANSI). These are manufactured from AA6061-T6 for the rail-mount housing and AA1350 for the current-carrying bus element, with tin plating at the wire contact surfaces. DIN rail neutral bars are used by panel board assemblers in both European IEC-standard and USA NEC-compliant custom panel builds.

Aluminum Grounding/Earthing Bus Bars (Direct Mount)

Aluminum earthing bus bars are used as equipment grounding conductors (EGC) in distribution panels, connected directly to the panel enclosure (earth) and accepting all ground (green or bare) conductors from branch circuits. Manufactured from AA1350 or AA6061 with green-marked terminals for NEC 250.148 identification compliance. These are produced with pre-drilled mounting holes for direct enclosure fixing and are available in standard widths (25 mm to 50 mm) and lengths (100 mm to 600 mm) to match standard panelboard widths. Custom lengths and configurations are available for OEM panelboard production programs.

Aluminum Three-Phase Bus Bars for Switchgear and MCCs

Three-phase aluminum bus bar sets for motor control centers (MCCs), distribution switchboards, and industrial panelboards are manufactured from AA1350-H14 or AA6101-T6 flat bar (per ASTM B236 / IS 5082) in standard cross-sections from 25×3 mm to 100×10 mm for current ratings from 100 A to 1,600 A. These are drilled with standard phase-to-phase spacing holes, chamfered edges for reduced corona in MV applications, and supplied in sets of 3 phases with tinned contact surfaces at joint interfaces. Custom bend profiles and welded offsets are produced to OEM switchgear assembly drawings.

Applications by Industry

• Residential Panelboards (USA Market): UL 869A listed neutral bars in residential 100 A and 200 A main circuit breaker panels and sub-panels per NEC Article 408 requirements.
• Commercial Distribution Boards: Multi-circuit neutral and terminal bars in commercial building main distribution boards, sub-distribution panels, and lighting and power distribution panels per NFPA 70 (NEC) and IEC 60364.
• Industrial Motor Control Centers: Aluminum terminal bars for control wiring, instrument transformer secondary connections, and protective relay circuit terminal points in industrial MCC buckets and switchgear cubicles.
• Solar PV Combiner Boxes: Aluminum DC terminal bars in photovoltaic string combiner boxes and DC distribution boards for utility-scale and commercial solar installations.
• EV Charging Infrastructure: Aluminum neutral and grounding bars in EVSE (Electric Vehicle Supply Equipment) panel boards and distribution infrastructure for commercial and utility-scale EV charging facilities.
• Telecom Power Systems: Aluminum bus bars in -48 VDC telecom power distribution units (PDUs), rectifier shelves, and battery connection bars in central office and remote power facilities.

Manufacturing Process

Aluminum terminal bars are produced from AA1350-H14 or AA6101-T6 extruded bar or flat bar stock (ASTM B236 / IS 5082) in the required cross-sectional dimensions. CNC machining centers drill and tap all terminal holes to the specified pitch, depth, and thread class in a single setup using multi-spindle drill heads for production efficiency. Countersinks, mounting holes, and label engraving are added in subsequent operations. For tin-plated bars, electroplating (matte tin, min 5 µm per ASTM B545) is applied after machining. Final inspection verifies all terminal hole positions (±0.2 mm), thread quality (Go/No-Go gauges), cross-section dimensions, and plating thickness by X-ray fluorescence (XRF) measurement. Material certifications confirming AA1350 or AA6101 alloy and ASTM B236 / IS 5082 conformance are issued per production lot.

Quality Standards and Certifications

• ISO 9001:2015 Certified Quality Management System
• UL 869A listed (for panelboard service equipment application) — listing available for supply to UL-listed panelboard OEM programs
• Performance per IEC 60947-7-1 (terminal blocks for low-voltage switchgear)
• Material conformance to ASTM B236 / IS 5082 with electrical conductivity test reports
• Tin plating per ASTM B545 (electrodeposited tin) with XRF thickness reports
• RoHS and REACH compliant; REACH SVHC declaration for EU market supply

Why Choose Brass & Copper Parts India

• UL 869A Panelboard Neutral Bar Expertise: Deep experience supplying UL-listed neutral bars to USA residential panelboard OEMs — familiar with UL listing submission, sample testing, follow-up inspection, and production quality requirements.
• AA1350 Electrical-Grade Aluminum: We specify and stock AA1350 (EC grade) aluminum — not the more common AA6061 structural grade — for terminal and neutral bars where maximum conductivity is the primary design requirement.
• Full Range – Residential to Industrial: 4-way residential neutral bars through 400 A industrial bus bar sets from a single source — simplifying panelboard OEM procurement.
• Tin Plating In-House: Matte tin electroplating in-house (ASTM B545) for improved aluminum-to-wire contact resistance and Al-Cu interface compatibility — not all neutral bar manufacturers offer this capability.
• Custom OEM Programs: Custom hole spacings, lengths, wire ranges, and screw specifications developed to OEM drawings with full UL listing and IEC conformance documentation support.

Frequently Asked Questions

What is the difference between a neutral bar and a grounding bus bar in a panelboard?

In a main panel (service entrance panel), the neutral bar and grounding bus are typically bonded (connected) together per NEC 250.24(A) — forming the neutral-ground bond. In a sub-panel, NEC 250.142(B) requires the neutral and ground to be separated (isolated neutral bar on standoffs, separate grounding bus connected to enclosure). The distinction determines whether the neutral bar is isolated or direct-mounted to the enclosure.

What is AA1350 aluminum and why is it used for neutral bars?

AA1350 is electrical conductor (EC) grade aluminum with ≥99.5% aluminum purity and minimum 61% IACS electrical conductivity. It is the standard material for aluminum electrical conductors (wires, cables, bus bars) because its high conductivity allows smaller bar cross-sections compared to structural aluminum alloys like AA6061 (43% IACS) — reducing material cost and weight for the same current rating.

Are aluminum neutral bars suitable for both aluminum and copper wire connections?

Yes. Aluminum neutral bars with brass screws (or tin-plated terminals) accept both aluminum and copper branch circuit conductors per UL 869A listing requirements. Direct contact between bare aluminum bar and copper wire without tin plating at the contact surface can eventually develop galvanic corrosion increasing contact resistance — tin plating at the contact zone prevents this and is provided on premium-grade neutral bars for both conductor types.

What is the current rating for a standard residential aluminum neutral bar?

Standard residential neutral bars are rated at 100 A (for 100 A panels) or 200 A (for 200 A panels) continuous current carrying capacity through the bus bar cross-section. Individual terminal screw ratings are 20 A (for #14–#10 AWG wire) or 30–60 A (for #8–#4/0 AWG wire) per the UL 869A listing. Always verify the neutral bar’s UL-listed current rating matches the panelboard’s service amperage.

What is the wire acceptance range for standard neutral bar terminals?

Standard residential neutral bar screw terminals are UL-listed to accept #14 AWG to #4/0 AWG copper conductors and #12 AWG to #4/0 AWG aluminum conductors in the larger terminal screws. Specific wire ranges depend on terminal screw size — refer to the UL listing card and terminal marking on the bar for the actual wire range for each terminal position.

Do you supply aluminum bus bars in custom lengths and cross-sections?

Yes. Aluminum bus bars are supplied in standard ASTM B236 cross-sections (flat bar from 12×3 mm to 100×12 mm) or to custom dimensions from extruded aluminum bar stock. Standard drilling and tapping patterns are applied; custom patterns are produced to customer drawings. Cut-to-length and punched bus bar sets for switchgear assembly are produced with 3–4 week lead time for custom configurations.

What is IEC 60947-7-1 and how does it apply to terminal bars?

IEC 60947-7-1 is the international standard for terminal blocks (auxiliary circuit terminal blocks) used in low-voltage switchgear and controlgear. It specifies current ratings, temperature rise, dielectric strength, and short-circuit withstand requirements for terminal connection devices including bus bar terminal strips in distribution boards and industrial control panels. Our IEC 60947-7-1 terminal bars are designed to meet these requirements for use in IEC-standard electrical equipment.

What is the minimum order quantity for aluminum terminal bars?

For standard residential neutral bar configurations (12-way, 16-way, 20-way in AA1350): MOQ 100 pieces; bulk pricing at 1,000+ pieces for OEM panelboard programs. Custom configurations: MOQ 500 pieces with tooling. Annual OEM supply programs with monthly delivery releases are the preferred supply model for panelboard manufacturers.
