We are one of the leading manufacturers and exporters of Brass Battery Terminals from India. We have been supplying high-quality Battery Terminals to the global market for over 29 years. Based in Jamnagar, Gujarat, our manufacturing facility is equipped to handle a wide variety of Brass Terminal types such as Automotive Battery Terminals, Solar Battery Terminals, Inverter Terminals, and Marine Terminals. Our terminals are known for high conductivity, dimensional accuracy, corrosion resistance, and compatibility with global standards. Whether you’re sourcing for the automotive, energy, industrial, or marine sector, we can fulfill standard and custom orders with efficient lead times and top-tier quality.
Product Overview
Brass Battery Terminals are electro-mechanical connectors used to join electrical cables to battery posts in vehicles, solar systems, UPS units, and heavy machinery. Designed to carry high current with minimal loss, our terminals are manufactured from high-conductivity Brass alloys and are available in various standards such as SAE, DIN, JIS, and IS.
Our range includes Positive and Negative Terminals, L-Type, U-Type, Strip-Type, Angle Terminals, and customized designs, available with screws, clamps, or solder-type configurations. These terminals ensure stable current flow, vibration resistance, and long operational life in extreme environments.
Material Grades & International Standards
| Region | Standard | Brass Grade | Properties |
|---|---|---|---|
| USA | ASTM | C36000, C37700 | High machinability, conductivity |
| Europe | EN/DIN | CW614N, CW617N | Good corrosion resistance |
| UK | BS | CZ121, CZ122 | Free-cutting brass for terminals |
| India | IS | IS 319 Grade I & II | Conductive and durable |
| China | GB | H62, H65 | High strength, fair corrosion resistance |
| Japan | JIS | C3602, C3604 | Precision machining and finishing |

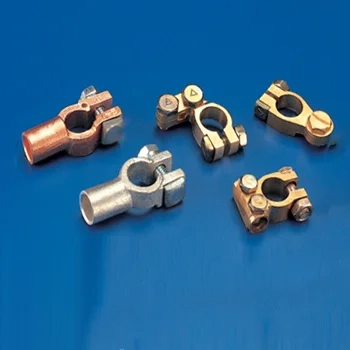

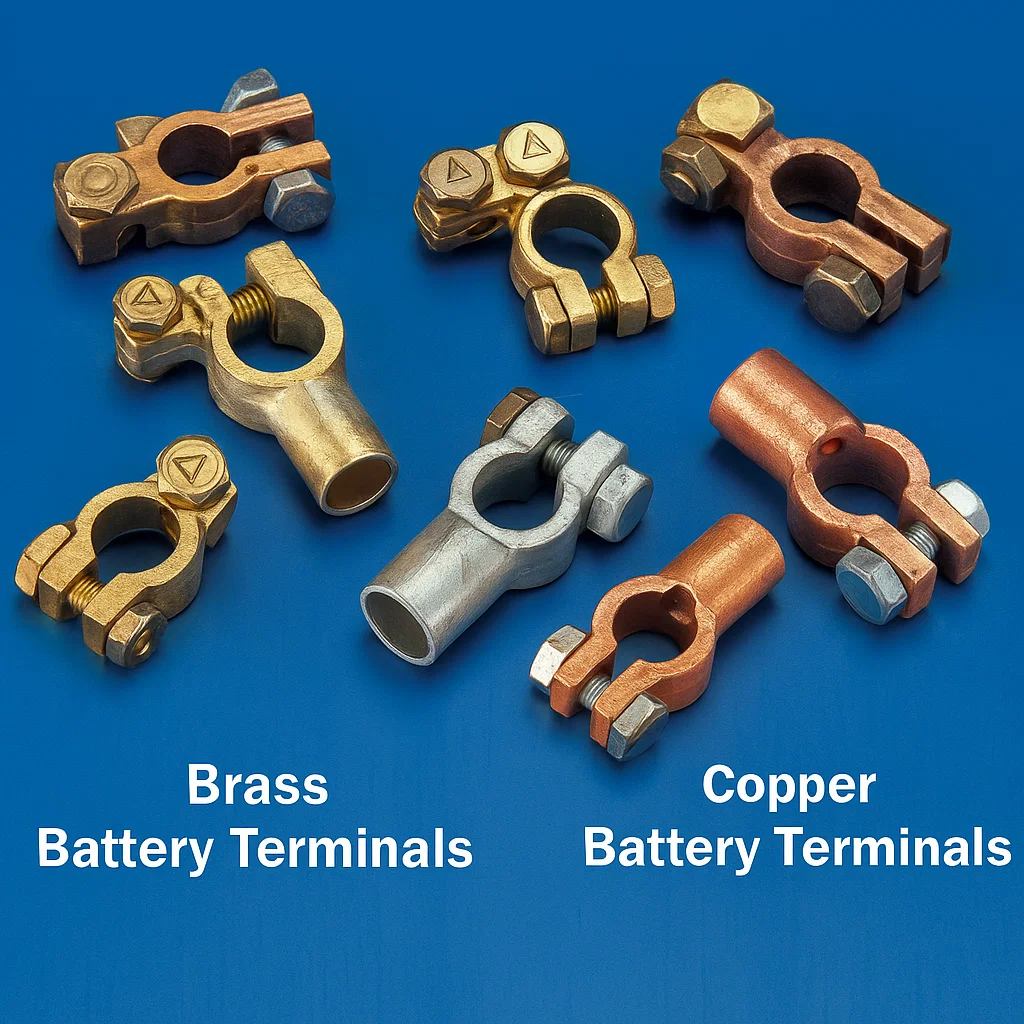

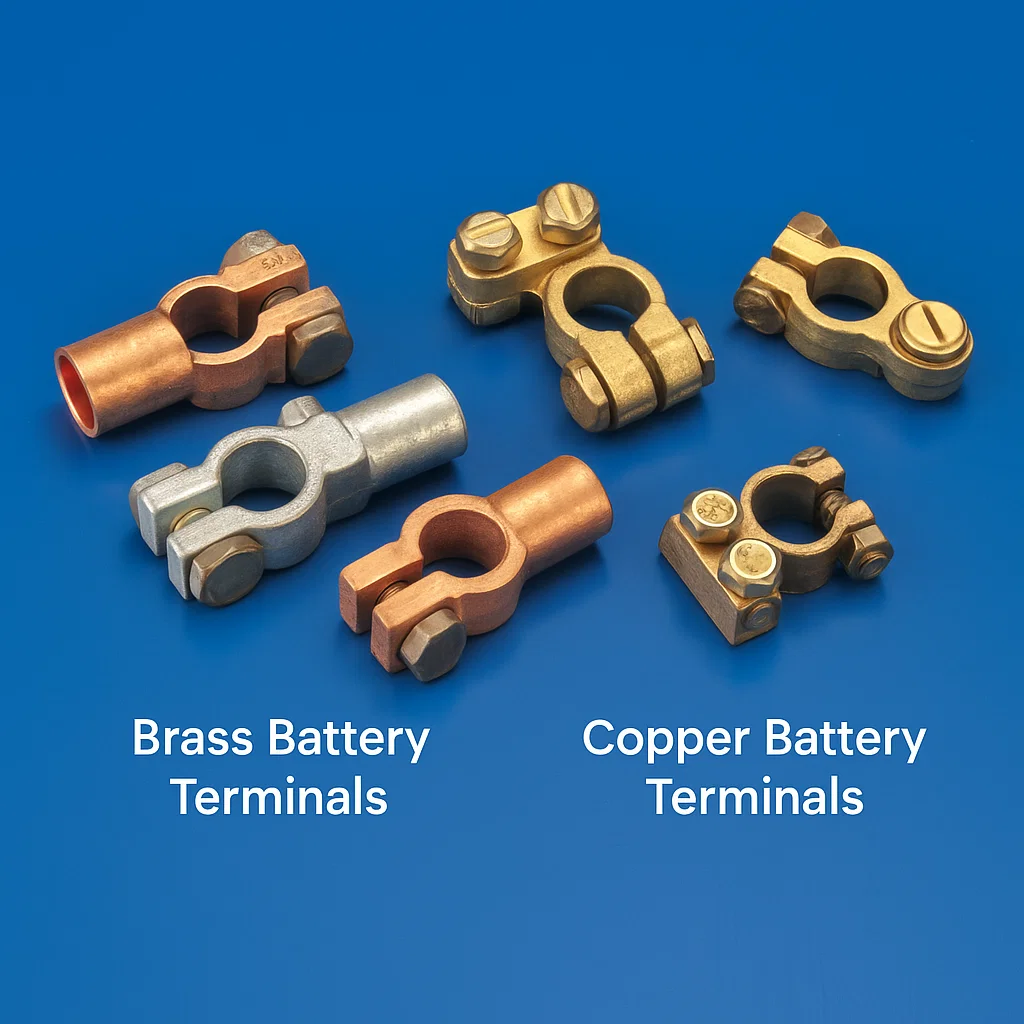

Types of Brass Battery Terminals We Offer
-
Automotive Battery Terminals (SAE Type)
-
DIN Standard Battery Terminals
-
JIS Type Battery Terminals
-
Marine Terminals
-
Solar/Inverter Terminals
-
Angle Type / Strip Type / L-Type / U-Type
-
Bolt Clamp, Wing Nut, Screw Type, Solder Type
Dimensions & Drawing Reference
| Type | Bolt Size | Cable Entry (mm²) | Length (mm) | Width (mm) | Finish |
|---|---|---|---|---|---|
| SAE Positive | M8 | 10–70 | 42 | 24 | Natural / Nickel |
| SAE Negative | M8 | 10–70 | 42 | 22 | Natural / Nickel |
| DIN Type | M10 | 16–95 | 50 | 28 | Tin Plated |
| JIS Type | M8 | 10–60 | 40 | 20 | Brass Yellow |
<em>Custom dimensions as per drawing/sample available</em>
Manufacturing Process
-
Raw Material Inspection – High-grade Brass rods and billets
-
Precision Machining – CNC turning, multi-slide forming
-
Cold Forging / Hot Stamping – Shape formation
-
Threading / Bolt Fitting – As per SAE/DIN
-
Surface Treatment – Deburring, polishing, plating
-
Final Testing & Inspection – Mechanical and dimensional checks
Machinery Used
| Machine Type | Function |
|---|---|
| CNC Turning Machines | Precision shaping |
| Forging Presses | Head & body formation |
| Thread Rollers | External & internal threading |
| Vibratory Polishers | Burr removal & smooth finish |
| Plating Plants | Tin/Nickel coating |
Surface Finish Options
-
Natural Brass Finish (Polished)
-
Nickel Plated
-
Tin Plated
-
Silver Plated (on request)
-
Custom Coating (as per customer needs)
Key Applications
-
Automotive Vehicles (Car, Truck, Tractor)
-
Solar Energy Systems
-
Power Inverters & UPS Units
-
Heavy Industrial Batteries
-
Marine Equipment & Boats
Tolerances & Performance
| Parameter | Value |
|---|---|
| Dimensional Tolerance | ±0.05 mm |
| Electrical Conductivity | ≥ 28% IACS |
| Tensile Strength | ≥ 300 MPa |
| Hardness (Brinell) | 80–100 HB |
| Corrosion Resistance | Excellent – 500 hrs salt spray |
Turnaround Time
-
Standard Orders: 4–6 weeks
-
Custom Orders: May vary based on volume/design
-
Express Production: Available on priority basis
Frequently Asked Questions (FAQ)
-
What is the current rating of your Brass Battery Terminals?
Depending on the size, terminals support up to 600 amps in peak conditions. -
Can you customize terminal shape and cable size?
Yes, customization is our strength—just send a drawing/sample. -
Do you supply positive and negative pairs?
Yes, both are available as sets or individual units. -
Are your terminals RoHS compliant?
Yes, we follow RoHS and REACH compliance standards. -
Do you offer private labeling?
Yes, we offer packaging with your logo, barcode, and branding. -
Can we get plated terminals (tin/nickel)?
Yes, we offer various plating options. -
Is soldering needed?
We offer both solder and clamp types based on your application. -
Do you provide test certificates?
Yes, MTC and plating test certificates are available on request. -
What is your MOQ?
Generally 1,000 pieces, but negotiable for bulk customers. -
Do you ship globally?
Yes, we export to over 35 countries across the USA, EU, Middle East, and Africa.
Why Choose Us?
-
29+ Years of Experience in Export & Manufacturing
-
Based in Jamnagar – Brass Industry Hub of India
-
Customization in Size, Plating, and Packaging
-
ISO 9001:2015 Certified Quality Systems
-
Flexible MOQs and Quick Production Cycle
-
Responsive Customer Support via Phone, Email, and WhatsApp
-
Global Shipping with Competitive Freight Support
Packaging & Shipping
Our terminals are packed in moisture-proof polybags and corrugated boxes, with custom labeling and branding available. Bulk orders are palletized for sea shipment. We offer air, sea, and courier shipping using FOB, CIF, or DDP Incoterms. All packages include packing list, invoice, HS code, and Certificate of Origin.
Customer Testimonial
Michael Davis – Texas, USA
“The quality of Brass Battery Terminals is top-notch, and they’ve never missed a shipment. Their team is professional, communication is excellent, and they even matched our packaging requirements. Highly recommend!”
Glossary of Terms
| Term | Meaning |
|---|---|
| IACS | International Annealed Copper Standard – measures electrical conductivity |
| DIN/SAE/JIS | Different global standards for battery terminal design |
| RoHS | Restriction of Hazardous Substances directive for material compliance |
| Cold Forging | Forging method done at room temperature for strength and durability |
| Plating | Electrochemical process that adds a metal coating (e.g., tin or nickel) |
