We are one of the leading manufacturers and exporters of Bronze Fittings from India. We have been supplying Bronze Fittings to the world market for many decades. Based in Jamnagar, Gujarat, our foundry and machine shop produce high‑performance Bronze Cast and Machined Fittings from the 85‑5‑5‑5 Copper Alloy. Our comprehensive range—Elbows, Couplers, Pipe Nipples, End Caps, Tees, Crosses, Thread Converters, and Water Meter Parts—serves sanitary, plumbing, marine, and industrial applications across the USA, Europe, Middle East, and Africa.
Product Overview
Bronze Fittings are corrosion‑resistant connectors and adaptors used to join, branch, or terminate piping systems in water, steam, and oil applications. Manufactured via sand casting or precision CNC machining, our fittings offer superior dimensional accuracy, leak‑proof joints, and long service life—even in harsh environments.
Material & Standards
| Specification | Alloy | Composition (%) | Key Properties |
|---|---|---|---|
| 85-5-5-5 Bronze | Cu‑Sn‑Zn‑Pb | Cu 85, Sn 5, Zn 5, Pb 5 | Excellent corrosion resistance, machinability |
We comply with:
-
ASTM B62 (Bronze Sand Castings)
-
BS 1400 CZ121 (Bronze Alloy Castings)
-
IS 318 LTB2 (Bronze Castings)

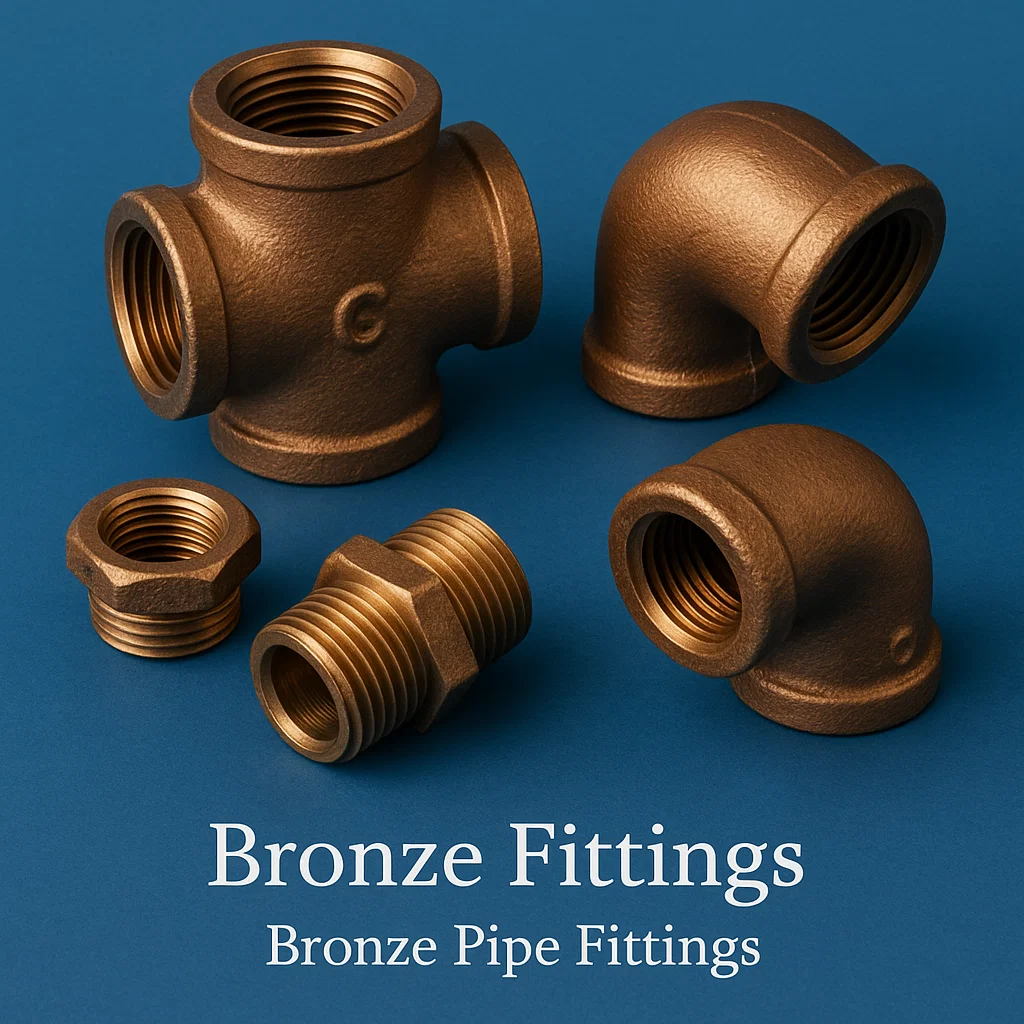

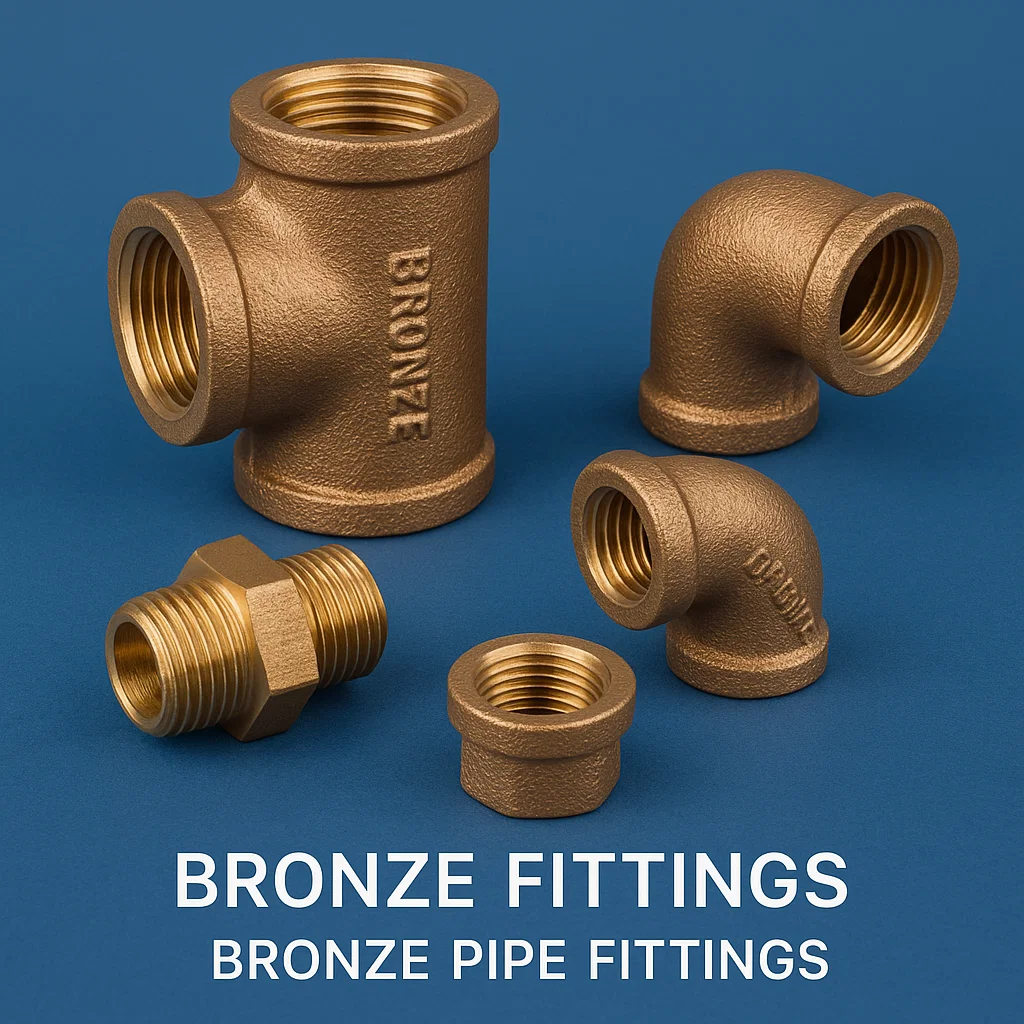

Range of Bronze Fittings
| Fitting Type | Connection | Standard Sizes (inches) |
|---|---|---|
| Elbows (45°/90°) | Socket / Threaded | ½″ – 4″ |
| Tees (Equal/Unequal) | Socket / Threaded | ½″ – 3″ |
| Crosses | Threaded | ½″ – 2″ |
| Couplers | Socket / Threaded | ½″ – 4″ |
| Pipe Nipples | Threaded | ½″ × 50 mm – 4″ × 200 mm |
| End Caps / Plugs | Threaded | ½″ – 4″ |

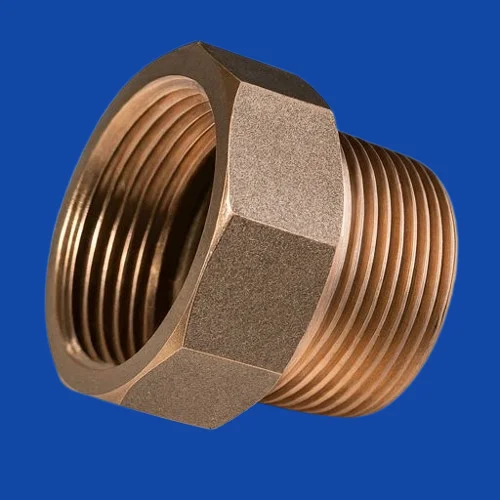

| Thread Converters | M/F BSP / NPT | ½″ – 2″ |
| Water Meter Parts | Custom | As per meter make & model |
Custom dimensions and BSP/NPT thread types available on request.
Manufacturing Process
-
Pattern & Mold Making: CNC‑cut patterns for sand casting.
-
Sand Casting: Molten bronze poured into green‑sand molds.
-
Shakeout & Fettling: Removing sand and flash, rough cleaning.
-
CNC Machining: Turning, milling, drilling, threading to finalize dimensions.
-
Deburring & Shot Blasting: Smooth edges and uniform finish.
-
Final Inspection: Dimensional checks (CMM), pressure/leak testing, visual quality.
Surface Finish Options
| Finish Type | Description |
|---|---|
| Natural (As‑Cast) | Rustic patina, matte texture |
| Sand Cast Texture | Uniform, granular surface |
| Polished Machined | Smooth, shiny finish (optional) |
Applications & Industries
Bronze Fittings find use in:
-
Sanitary Plumbing – water supply, fittings for fixtures
-
Marine & Shipbuilding – saltwater piping, seawater pumps
-
HVAC Systems – chilled water loops, hydronic circuits
-
Oil & Gas – low‑pressure pipelines, meter connections
-
Instrumentation – pressure gauge interfaces
-
Fire Protection – sprinkler and hose connections
Dimensional Tolerances & Performance
| Parameter | Tolerance / Value |
|---|---|
| Linear Dimensions | ± 0.5% of nominal |
| Thread Fit | BSP/NPT Class B |
| Leak Test Pressure | Up to 10 bar (water) |
| Operating Temp Range | –20 °C to +150 °C |
| Corrosion Resistance | Excellent in potable and seawater service |
Lead Time
-
Standard Stock Sizes: 4–6 weeks
-
Custom Machined Parts: 6–8 weeks
-
Expedited Orders: Available upon request
Frequently Asked Questions
-
What casting method is used?
We employ green‑sand casting for high‑volume parts and resin sand for intricate or low‑volume runs. -
Can fittings be pre‑assembled with seals?
Yes—PTFE or NBR O‑rings, gaskets, and washers can be fitted. -
Are your fittings potable‑water safe?
Yes—lead‑free bronze alloys and NSF/ANSI 61 compliance on request. -
Do you supply complete kits?
We can package fittings, fasteners, and accessories per project requirements. -
Can we get drawing approvals?
CAD drawings and 3D models provided for customer approval before production. -
What’s the MOQ?
Prototype runs from 50 pcs; standard MOQ 200 pcs per design. -
Are custom alloys available?
Yes—tellurium bronze, phosphor bronze, and other Cu‑Sn alloys upon request. -
Do you provide pressure‑testing certificates?
Yes—all fittings ship with hydrostatic test reports. -
Is any secondary plating or coating possible?
We offer nickel or tin plating on machined surfaces upon request. -
Do you ship globally?
Yes—we export via sea, air, and courier with FOB, CIF, or DDP Incoterms.
Why Choose Our Bronze Fittings?
-
Decades of Expertise in bronze casting and machining
-
Integrated Foundry & CNC Unit for end‑to‑end control
-
Global Compliance: ASTM, BS, IS, NSF certifications
-
Customization: Patterns, alloys, finishes, assemblies
-
Quality Assurance: SPC/SQC, CMM inspection, leak testing
-
Reliable Lead Times & Flexible MOQs
-
Dedicated Support: Engineering, logistics, post‑sales
Packaging & Shipping
Fittings are packaged in corrugated cartons with protective liners, labeled per part number. Heavy or bulk orders palletized and crated. All shipments include packing lists, test certificates, and export documentation.
Customer Testimonial
Carlos Alvarez – Spain
“The precision and finish of these Bronze Fittings elevate our marine plumbing systems. Their hydrostatic test certificates give us full confidence. Excellent partner!”
Glossary of Terms
| Term | Definition |
|---|---|
| Green‑Sand Casting | Traditional sand casting method using clay‑bonded silica sand. |
| Resin Sand | Sand mixed with chemical binders for superior surface finish and detail. |
| Hydrostatic Testing | Pressurizing fittings with water to check for leaks. |
| CMM | Coordinate Measuring Machine—for precise dimensional inspection. |
| NSF/ANSI 61 | Standard for drinking-water system components. |
