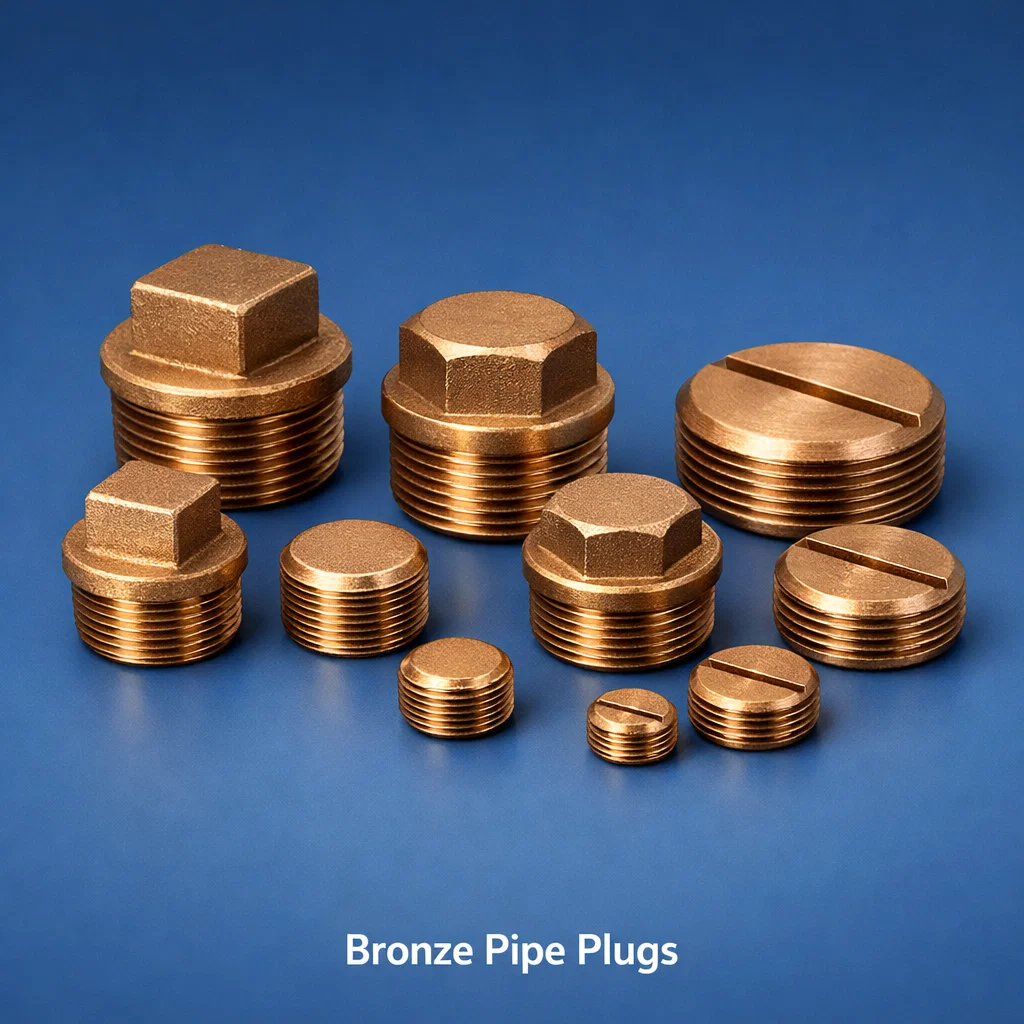

Bronze pipe plugs are threaded male fittings used to seal open pipe ends, test ports, unused tee branches, and instrument takeoff connections in pressurized pipe systems. Brass & Copper Parts India manufactures pipe plugs from LG2 gunmetal (BS 1400 LG2 / ASTM B62), phosphor bronze (PB1 / ASTM B139), and standard brass alloys in BSP (ISO 228, ISO 7), NPT (ASME B1.20.1), and metric thread forms — supplying USA power utilities, EPC contractors, industrial OEMs, marine engineering companies, and process plant operators. Our bronze pipe plugs are manufactured to BS 5200, ASME B16.14, and MSS SP-95 standards and are suitable for steam, compressed air, hydraulic, water, gas, and chemical service.

Product Overview

A pipe plug is a simple but critical pipe system component — an improperly sealed port can result in system leaks, contamination, or catastrophic pressure failure. Bronze plugs are preferred over steel in corrosive service, seawater systems, steam condensate lines, and where non-sparking properties are required. Our pipe plugs are precision-machined from cast or bar bronze with hexagonal or square drive heads for torque application, and are available in hollow (hex socket) or solid (hex or square head) designs. Taper pipe thread designs (NPT, BSPT) provide self-sealing capability when assembled with PTFE tape or pipe sealant.

Key Features

• LG2 Bronze and Phosphor Bronze Material Options: LG2 gunmetal for general pressure service; phosphor bronze (PB1) for higher strength, spring-hard applications and marine environments requiring superior fatigue resistance.
• Self-Sealing Taper Thread Design: NPT and BSPT taper threads seal on the thread flanks when properly torqued with PTFE tape or anaerobic pipe sealant — suitable for gas and steam service.
• Non-Sparking and Non-Magnetic: Bronze pipe plugs are specified in oxygen-enriched environments, explosive atmospheres (ATEX zones), and marine magnetic minesweeper vessels where non-magnetic materials are mandatory.
• Wide Thread Range: Available in 1/8″ BSP/NPT through 4″ BSP/NPT in both hollow hex socket and solid hex/square head designs.
• High Pressure Rating: LG2 bronze plugs rated to Class 150 and Class 300 per ASME B16.14 for steam, hydraulic, and compressed air service.
• Corrosion Resistant in Multiple Media: LG2 bronze resists seawater, steam, condensate, compressed air, and most industrial liquids without dezincification — ideal for long-service-life sealed ports.

Technical Specifications

Bronze Alloy International Grade Equivalents

Product Types and Variants

LG2 Bronze Hex Head Pipe Plugs (BSP and NPT)

Hexagonal head bronze pipe plugs are the standard configuration for general industrial, marine, and process plant pipe systems. The hex body provides a spanner flat for torque application, and the taper BSPT or NPT thread seals against the female fitting thread when assembled with PTFE tape or thread sealant. Available in 1/8″ to 4″ BSP and NPT male thread in LG2 bronze (BS 1400 LG2 / ASTM B62). These are manufactured to BS 5200 dimensional standards and ASME B16.14 for the US market. They are the most commonly specified bronze plug in steam, condensate, and seawater pipe systems.

LG2 Bronze Square Head Pipe Plugs

Square head bronze plugs are used in applications where higher installation torque is required or where the plug must be visually distinguishable as a removable/inspection port. The square head provides superior grip for conventional box spanners and torque wrenches compared to hex head designs, and the distinctive head shape helps maintenance personnel identify plugged ports during inspection and maintenance operations. Available in ½” to 2″ BSP and NPT male thread in LG2 bronze to ASME B16.14 dimensions.

Bronze Hollow Hex Socket Pipe Plugs (Allen Key Drive)

Hollow hex socket (internal hex / Allen key) bronze plugs are used in space-constrained locations where a protruding hex or square head would foul adjacent pipework, equipment, or structural members. The countersunk or flush-face socket design allows the plug to sit level with or below the pipe face. Available in ¼” to 2″ BSP and NPT male thread in LG2 bronze or brass. Commonly used in hydraulic manifolds, valve bodies, cylinder ports, and instrument block tapping points where low-profile closure is required.

Phosphor Bronze Pipe Plugs (PB1 Grade)

Phosphor bronze (ASTM B139 / PB1) pipe plugs provide higher tensile strength (370 N/mm² min), improved fatigue resistance, and excellent spring-back properties compared to LG2 gunmetal — making them the preferred choice for dynamic (vibrating) pipe systems, marine applications with cyclical loading, and precision instrument ports subject to repeated removal and re-installation. PB1 phosphor bronze also offers superior resistance to seawater corrosion and biofouling. Available in ¼” to 1½” BSP and NPT male thread.

Bronze Countersunk Pipe Plugs and Flush Plugs

Countersunk bronze plugs are designed to sit flush or recessed below the face of a flange, manifold, or fitting — essential in applications where protruding plugs would interfere with mating surfaces, sealing gaskets, or structural clearances. The conical countersunk head distributes clamping load over the flange face. These are used in hydraulic valve bodies, pressure vessel instrument nozzles, and precision manifolds. Manufactured from LG2 bronze or brass to customer drawings with any specified thread form.

Applications by Industry

• Steam and Condensate Systems: Sealing unused tapping points, test ports, and drain connections on steam headers, condensate return lines, and heat exchangers in power plants and industrial steam systems.
• Marine Pipe Systems: Plugging unused ports on seawater cooling manifolds, ballast water systems, bilge headers, and fire main distribution systems on naval and commercial vessels.
• Hydraulic Systems: Sealing unused ports on hydraulic cylinders, valve bodies, and manifold blocks in mobile equipment, presses, and industrial machinery.
• Compressed Air and Gas: Sealing unused distribution points, test connections, and instrument takeoffs in compressed air, nitrogen, and inert gas systems.
• Instrumentation and Process Plant: Plugging instrument tapping connections that are temporarily unused during plant construction, commissioning, or maintenance turnarounds.
• Oil and Gas Processing: Sealing test ports, corrosion coupon fittings, and chemical injection points on production and process piping in refineries and gas processing plants.

Manufacturing Process

Bronze pipe plugs are manufactured by either casting (for larger sizes) or CNC-turning from bronze bar stock (for sizes up to 2″). For cast plugs, the casting is produced from BS 1400 LG2 or ASTM B62 alloy and subsequently CNC-machined for thread cutting and head forming. For bar-turned plugs, LG2 or phosphor bronze bar is precision-turned to head and shank dimensions, and the hex or square head is milled to across-flats dimension per BS 5200 / ASME B16.14. Pipe threads are cut on CNC lathes and verified with calibrated thread gauges. All parts are degreased and inspected dimensionally before packing. Hydrostatic testing at 1.5× working pressure is performed on a sample basis per ASME B16.14 requirements.

Quality Standards and Certifications

• ISO 9001:2015 Certified Quality Management System
• Manufactured to BS 5200, ASME B16.14, and MSS SP-95 dimensional standards
• Material conformance to BS 1400 LG2 / ASTM B62 (LG2 plugs) and ASTM B139 (phosphor bronze plugs)
• Thread inspection per ASME B1.20.1 (NPT) and ISO 7/1 (BSPT) calibrated gauges
• EN 10204 2.2 and 3.1 material test certificates available
• Third-party inspection (Lloyds Register, DNV GL, BV) available for marine/offshore projects

Why Choose Brass & Copper Parts India

• Multiple Alloy Options from One Source: LG2 bronze, phosphor bronze, and brass pipe plugs all produced in-house — simplifying procurement for multi-material projects.
• Full Size Range in Stock: Standard sizes from 1/8″ to 2″ maintained in LG2 bronze and brass from stock; larger and custom sizes on short production lead times.
• BS 5200 and ASME B16.14 Dual-Standard Compliance: Single source for both US (ASME/NPT) and UK/European (BS/BSP) market requirements.
• Marine Classification Society Inspection: Lloyds Register and DNV GL third-party witness inspection available for shipbuilding project supply.
• Project Bulk Supply: Large project quantities (5,000+ pieces) supplied with complete documentation packages for power plant and marine EPC contractors.

Frequently Asked Questions

What is the difference between LG2 bronze and brass pipe plugs?

LG2 gunmetal (BS 1400 LG2 / ASTM B62) offers higher tensile strength, superior dezincification resistance, and better performance in steam, seawater, and aggressive water chemistry compared to standard brass (IS 319 / C36000). LG2 is specified in marine, power generation, and fire protection applications. Brass plugs are used in less demanding domestic plumbing, compressed air, and general service applications.

When should phosphor bronze plugs be used instead of LG2?

Phosphor bronze (ASTM B139 / PB1) is selected when higher tensile strength (370 N/mm² vs 230 N/mm² for LG2), improved fatigue resistance, or better spring-back on repeated assembly/disassembly cycles are required. Typical applications include vibrating pipelines, dynamic hydraulic systems, and marine instrument ports subject to repeated maintenance access.

Do bronze pipe plugs require any sealant?

Taper-threaded plugs (NPT and BSPT) are assembled with PTFE thread tape or anaerobic pipe sealant (e.g., Loctite 577) to achieve a leak-free seal. Parallel-threaded (BSPP) plugs rely on a face seal gasket or O-ring, not the thread, for sealing. Always follow the applicable pipe system design code for sealant selection and application method.

What is the torque specification for bronze pipe plug installation?

Installation torque depends on plug size, thread type, and system pressure. As a general guide for NPT/BSPT taper-threaded bronze plugs: 1/8″ – 8–10 N·m; ¼” – 15–20 N·m; ½” – 30–40 N·m; 1″ – 60–80 N·m. Consult the system design engineer or pipe standard for precise torque requirements for your application.

Are bronze plugs suitable for oxygen gas service?

Bronze (LG2 and phosphor bronze) is an acceptable material for oxygen service per ASTM G63 (Oxygen Compatibility Assessment). Bronze is non-sparking and has acceptable oxygen compatibility at standard industrial working pressures. However, oxygen system assembly requires special cleaning (oxygen-clean degreasing) and approved sealants. Consult CGA Pamphlet G-4 for oxygen system material and design requirements.

Can you supply BSP parallel (BSPP, ISO 228) plugs as well as taper (BSPT)?

Yes. We supply both BSPP (parallel, ISO 228) and BSPT (taper, ISO 7/1) bronze plugs. Please specify your thread type when ordering. BSPP plugs require a face seal (gasket or O-ring groove) and are used in metric European and hydraulic systems; BSPT taper plugs are used in pipe systems where the thread itself seals with sealant, similar to NPT.

What is the maximum size of bronze pipe plug you manufacture?

We manufacture bronze pipe plugs from 1/8″ (DN6) to 4″ (DN100) in standard configurations. Larger sizes up to 6″ are available as special order items with a production lead time of 4–6 weeks. Custom drive types (square drive, broached socket) are available for bespoke OEM requirements.

What is the minimum order quantity?

Standard stock sizes (1/8″ to 2″): No MOQ for small orders; bulk pricing available from 100 pieces per SKU. Larger sizes (2½” to 4″): MOQ 25 pieces, 3–4 week lead time. Phosphor bronze grades: MOQ 50 pieces for standard NPT/BSP sizes.
