Deep Drawn Parts of Copper and Brass – Precision Deep Drawing Manufacturer & Exporter

We are a leading manufacturer and global exporter of Deep Drawn Parts in Copper and Brass, supplying high-precision drawn components to industries across North America, Europe, Australia, the Middle East, and Southeast Asia. With over three decades of deep drawing experience and a dedicated press shop equipped with single-action, double-action, and hydraulic deep drawing presses up to 500 tonnes, we produce cups, shells, cylinders, canisters, housings, and complex formed shapes with exceptional wall thickness consistency and dimensional accuracy.

Deep drawing is a cold-forming sheet metal process that transforms flat blanks into hollow three-dimensional shapes without material removal. Copper and brass are exceptionally well-suited to deep drawing due to their high ductility, low yield-to-tensile strength ratio, and excellent formability. Our engineers apply advanced blank development calculations, draw ratio analysis, and ironing pass sequences to deliver deep drawn parts with depth-to-diameter ratios exceeding 3:1.

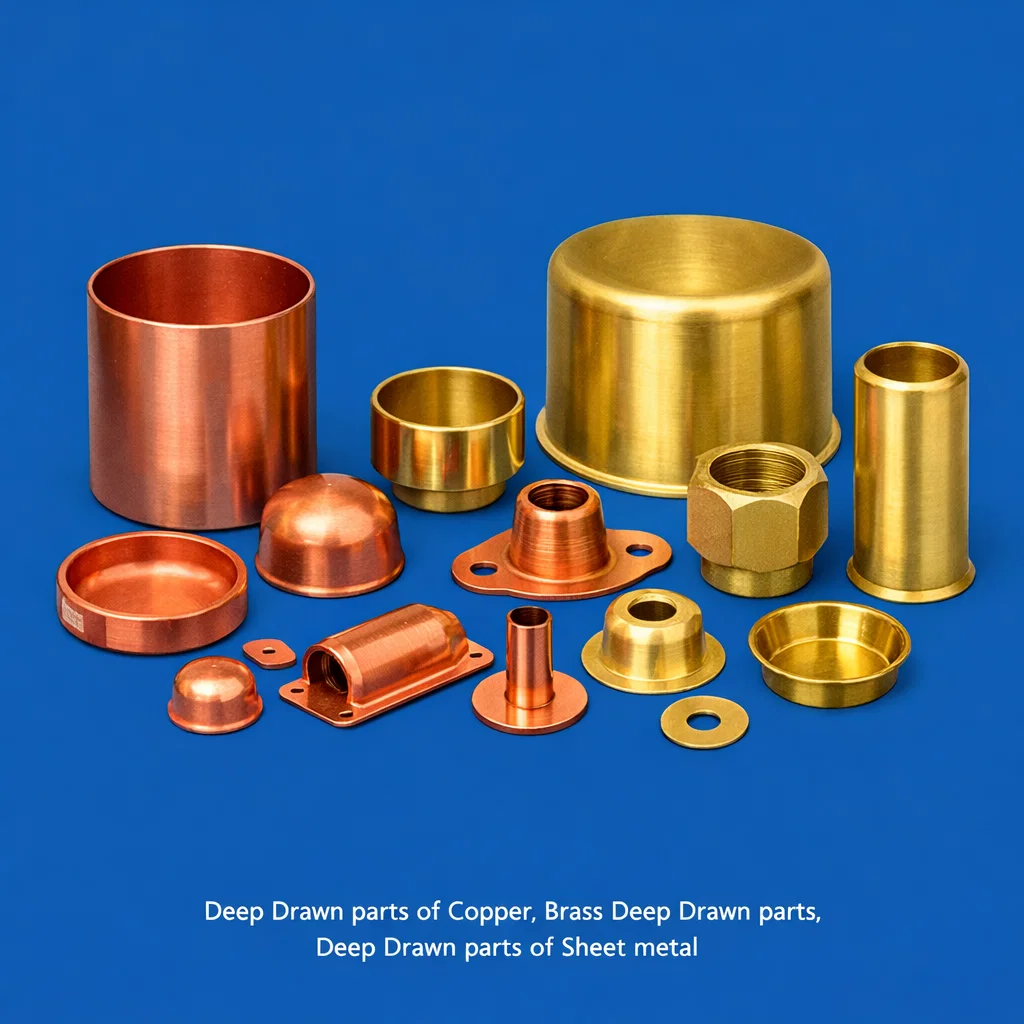

Brass Deep Drawn Parts

Brass deep drawn parts are among the most widely manufactured precision components in the non-ferrous metals industry, prized for the alloy’s exceptional ductility, low friction against tooling, and natural resistance to corrosion and dezincification. The deep drawing process allows brass — typically in grades such as CZ108, CZ126, or IS 410 — to be formed into seamless hollow profiles including cups, shells, ferrules, cartridge casings, plumbing fittings, and electrical housings with consistent wall thickness and smooth internal surfaces. Because brass flows readily under compressive die loads, it achieves high draw ratios with minimal intermediate annealing, making it one of the most cost-efficient materials for high-volume deep drawn component production.

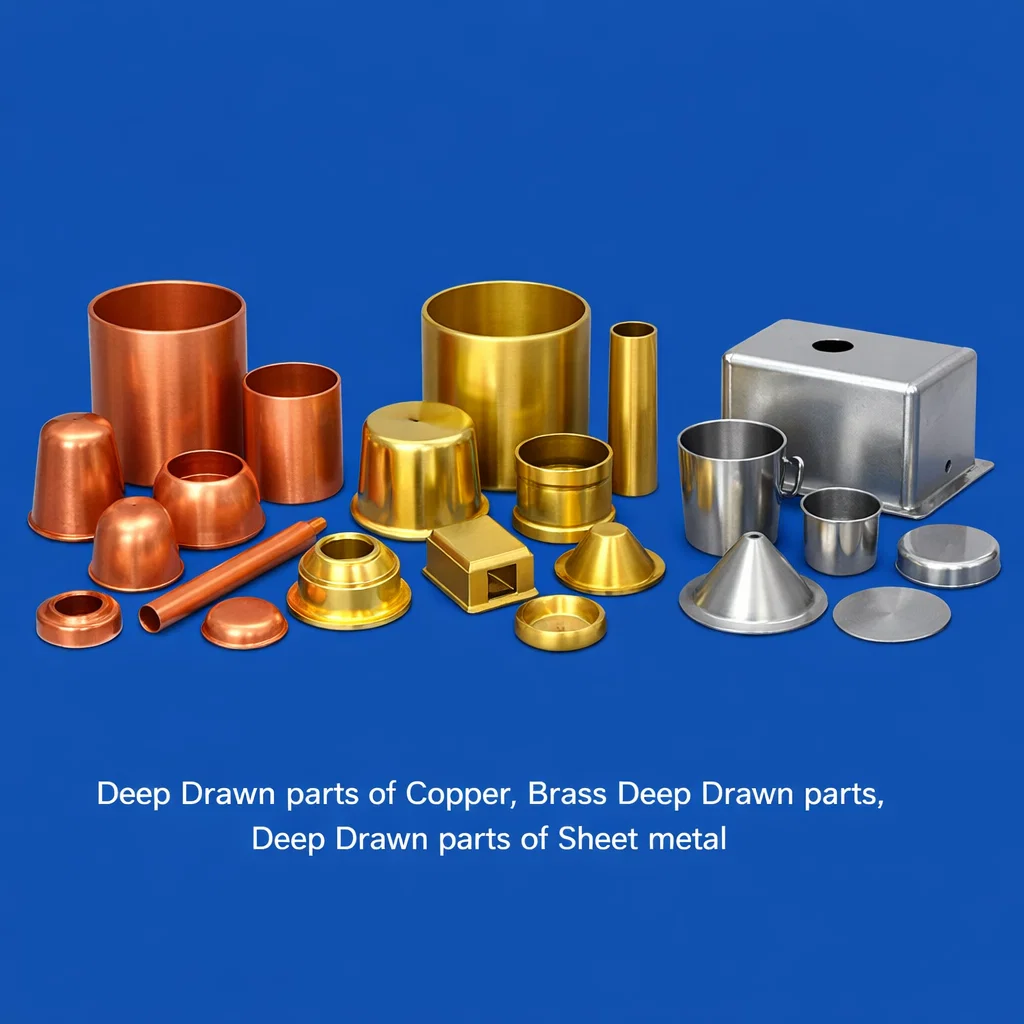

Copper Deep Drawn Parts

Copper deep drawn parts leverage the metal’s outstanding electrical conductivity, thermal performance, and inherent antimicrobial properties to serve critical applications in electrical engineering, heat exchange, refrigeration, and medical equipment manufacturing. Pure copper and high-conductivity alloys such as ETP copper (C11000) respond exceptionally well to deep drawing operations, allowing manufacturers to produce seamless tubes, contact sleeves, terminal caps, rotor end rings, and heat sink housings with precise dimensional control and excellent surface integrity. The softness and malleability of copper demand careful press parameter management — particularly blank-holder pressure and draw speed — but when correctly executed, copper deep drawing yields components that combine functional precision with the unmatched physical properties the base metal offers.

Deep Drawing of Sheet Metal

Deep drawing of sheet metal is a controlled plastic deformation process in which a flat metal blank is progressively drawn into a die cavity by a punch to form a seamless, hollow three-dimensional component. Unlike cutting or bending operations, deep drawing redistributes metal through a combination of radial tension and circumferential compression, requiring precise coordination of blank-holder force, lubrication, punch radius, and draw ratio to prevent common defects such as wrinkling, tearing, earing, or wall thinning. The process is highly scalable — suitable for single-action and progressive die configurations — and is applied across a diverse range of metals including brass, copper, stainless steel, aluminium, and mild steel to produce components for automotive, aerospace, electrical, and consumer goods industries with minimal material waste and high dimensional repeatability.

Deep Drawn Pressed Parts

Deep drawn pressed parts represent the convergence of forming precision and material efficiency, offering engineers a manufacturing route that produces complex hollow geometries in a single or multi-stage die operation without welds, joints, or secondary assembly. The absence of seams gives these parts superior structural integrity and leak-proof performance, which is why deep drawn pressed parts are routinely specified for pressure vessels, hydraulic components, battery cans, cartridge bodies, relay housings, and fluid handling fittings. With modern progressive tooling and servo press technology, manufacturers can hold tight dimensional tolerances across millions of cycles, making deep drawn pressed parts an economical, reliable choice for OEMs demanding both functional precision and supply-chain consistency.

What Is Deep Drawing? Key Process Parameters

Deep drawing begins with a flat circular or rectangular blank that is clamped and drawn into a die cavity by a punch. The blank holder force, draw speed, die radius, punch radius, lubrication, and material temper are all carefully optimized to prevent wrinkling, tearing, earing, and surface defects. For high draw ratios, multiple re-drawing operations (first draw, second draw, redraw) progressively reduce the diameter and increase the depth. Inter-draw annealing restores ductility between operations.

Material Grades – Copper & Brass for Deep Drawing with International Equivalents

Typical Size / Dimensional Capability Chart – Deep Drawn Parts

Common Deep Drawn Copper & Brass Products We Manufacture

Our deep drawing capabilities cover a wide range of applications: cartridge cases, bullet jackets, plumbing tube caps, valve bodies, heat exchanger headers, battery cups, electrical housing shells, capacitor cans, relay capsules, pressure vessel end-caps, anode containers, fuel system components, sensor housings, and many more. We also produce rectangular drawn parts, oval drawn cans, and non-circular deep drawn shapes for specialized applications.

Our Technical Expertise in Deep Drawing Copper and Brass

Deep drawing copper and brass demands precise control of material temper, blank holding force, and tooling radii. Our metallurgical team selects the correct material temper (annealed, quarter-hard, half-hard) for each application and designs optimal blank development. Our CAD/CAM die design includes FEA simulation for thinning and fracture prediction. We use precision-ground tool steel dies with PVD-coated punch surfaces to minimize friction and maximize die life.

For high draw ratio parts requiring multiple redraw passes, we operate in-house batch annealing furnaces with controlled atmosphere (nitrogen blanketing for copper) to prevent oxidation during inter-draw annealing. Post-drawing operations include trimming, piercing, flanging, curling, beading, and thread forming — all performed in-house on secondary press tooling.

Performance Metrics – Deep Drawing Operations

Why Choose Our Deep Drawn Copper and Brass Parts?

• Specialist Deep Drawing Know-How: 30+ years of copper and brass deep drawing expertise — we understand material behavior, springback, thinning, and earing like no other.
• Global Standards Compliance: Parts manufactured to ASTM, EN, BS, IS, JIS standards, with full material certification and dimensional inspection reports.
• Integrated Operations: Blanking, drawing, re-drawing, annealing, trimming, piercing, flanging, plating — all under one roof for faster turnaround and tighter cost control.
• Faster Delivery: Industry-leading lead times — prototypes in 10–21 days, production in 4–6 weeks post-approval.
• Global Export Track Record: 50+ countries served, with deep experience in customs documentation, export packaging, and international logistics.
• Customization at Every Level: Alloy selection, temper, surface finish, plating, trimming profile, secondary operations — all customizable.

What Separates Us from Other Deep Drawing Manufacturers

Our deep drawing capability is built around copper and brass as primary materials — not as occasional requests. We maintain dedicated deep drawing press lines optimized for non-ferrous metals, with tooling and lubrication systems specifically designed for copper’s and brass’s unique tribological properties. Our in-house controlled-atmosphere annealing eliminates oxidation on inter-draw passes, preserving surface quality throughout the forming sequence. This level of material-specific specialization is rarely found in general-purpose sheet metal shops — and it translates directly into higher part quality and lower defect rates for our customers.

Our Flexibility to Customize Deep Drawn Parts

We work from customer drawings, 3D models (STEP, IGES, SolidWorks), or physical samples. Custom wall thinning ratios, specific surface finishes (Ra values), special flange geometries, internal threading, external knurling, and selective plating (silver, tin, nickel, gold) are all achievable. We also offer private-label packaging and drop-shipping for customers who resell our parts under their own brand.

Export Packaging for Deep Drawn Parts

Deep drawn copper and brass parts are cleaned, inspected, and packed in VCI anti-tarnish poly bags or wrapped in anti-oxidation tissue. Small parts are packed in corrugated inner trays or thermoformed blister packs to prevent contact and surface scratching. Export cartons are double-walled, moisture-sealed, and labeled with full traceability data. Pallet arrangements comply with ISPM-15 phytosanitary standards.

Customer Testimonials

“We needed a supplier for deep drawn brass caps with very tight wall thickness tolerances for our precision instruments. This company delivered exactly what we needed — consistent, clean, perfectly dimensioned parts. Their engineering communication is superb, and they proactively suggested a material temper change that actually improved our assembly process. Excellent partner.”

— David Thornton, R&D Director, Canada

“We source deep drawn copper canisters for our electronic assembly and the quality is simply outstanding. Perfectly round, smooth surface, and exactly the right wall thickness every time. Deliveries arrive on schedule, well-packaged, and with complete documentation. We have referred them to three other suppliers in our group.”

— Liam O’Brien, Manufacturing Manager, Australia

Top Q&A – Deep Drawn Parts of Copper and Brass

Q1: What is the maximum draw ratio you can achieve?
A: We achieve limiting draw ratios (LDR) up to 3.5:1 with intermediate annealing for copper and up to 3.0:1 for brass. Very deep components are produced in multiple redraw passes.

Q2: What is the difference between drawing and redrawing?
A: The first draw converts a flat blank into a cup. Redrawing reduces the diameter and increases the depth of an already-drawn shell. Multiple redraws, with inter-draw annealing, allow production of very deep parts.

Q3: Can you produce non-circular deep drawn shapes?
A: Yes. We produce rectangular, oval, oblong, and irregular deep drawn shapes using matched punch-die tooling. FEA simulation helps optimize blank development for non-circular shapes.

Q4: What is the typical wall thickness variation in deep drawn parts?
A: In standard deep drawing, wall thickness increases toward the open end due to compressive strain. Ironing passes can normalize wall thickness to ±3% of nominal.

Q5: Can you produce deep drawn parts with holes or flanges?
A: Yes. Post-draw operations include bottom piercing, flange piercing, flanging, curling, beading, and thread forming — all performed in-house.

Q6: What lubricants are used in deep drawing of copper and brass?
A: We use sulphurized cutting oils, chlorinated drawing compounds, and wax-based lubricants depending on material grade, draw ratio, and required surface finish. Lubricants are fully removed in post-draw cleaning operations.

Q7: Is annealing necessary between draw passes?
A: For high draw ratios (typically >2.2:1) or thick materials, inter-draw annealing restores ductility and prevents work-hardening fracture. We use controlled-atmosphere annealing to prevent surface oxidation.

Q8: What surface finish can be achieved on deep drawn copper parts?
A: Natural deep drawn finish is typically Ra 0.8–3.2 µm. Mirror polishing, vibratory finishing, electropolishing, and plating are available for improved surface quality.

Q9: Can you produce threaded deep drawn parts?
A: Yes. Internal and external threads can be formed, rolled, or tapped in deep drawn parts as secondary operations.

Q10: What quality control methods do you use for deep drawn parts?
A: 100% visual inspection, CMM dimensional sampling, wall thickness measurement (ultrasonic), surface roughness measurement, and hardness testing (Vickers/Rockwell).

Q11: Do you offer electroplating on deep drawn copper and brass parts?
A: Yes. We offer nickel, tin, silver, gold, chrome, and zinc plating on deep drawn parts, with selective masking available.

Q12: Can you supply deep drawn parts in annealed condition?
A: Yes. Final stress relief or full anneal after deep drawing is available per customer specification.

Q13: What is earing in deep drawing and how do you control it?
A: Earing is the formation of scalloped peaks at the cup rim due to anisotropy in the strip material. We select low-earing temper material and design optimal blank holder force to minimize earing. Post-draw trimming removes any residual earing.

Q14: Can you match an existing deep drawn part from a sample?
A: Yes. We perform 3D scanning or CMM measurement of customer samples to reverse-engineer and produce matched tooling.

Q15: Do you accept small prototype orders for deep drawn parts?
A: Yes. We accept prototype orders from 200 pcs using bridge tooling or soft tooling where applicable. Production hard tooling is commissioned after prototype approval.

Glossary of Related Parts & Technical Terms

Limiting Draw Ratio (LDR): The maximum ratio of blank diameter to punch diameter that can be achieved in a single draw without fracture.

Earing: Scalloped ridges at the top rim of a deep drawn cup caused by crystallographic anisotropy in the sheet material.

Ironing: A secondary deep drawing operation that reduces wall thickness to a precise, uniform dimension by passing the cup through a die with clearance less than the wall thickness.

Redrawing: Subsequent draw operations performed on an already-drawn shell to increase depth and reduce diameter.

Controlled Atmosphere Annealing: Heat treatment performed in nitrogen or hydrogen atmosphere to restore ductility without surface oxidation.

Related Parts: deep drawn brass cups, deep drawn copper canisters, drawn brass shells, copper cartridge cases, brass bullet jackets, deep drawn battery cups, copper capacitor cans, brass relay capsules, deep drawn plumbing caps, copper valve bodies, brass sensor housings, deep drawn anode containers, copper electrical housing shells, brass pressure vessel endcaps, deep drawn heat exchanger headers, brass instrument housings, copper filter housings

Contact Us – Deep Drawn Copper & Brass Specialist

Looking for a trusted manufacturer of deep drawn copper and brass parts? Share your drawings, specifications, or samples and our team will respond with a detailed technical and commercial proposal within 24 hours.
