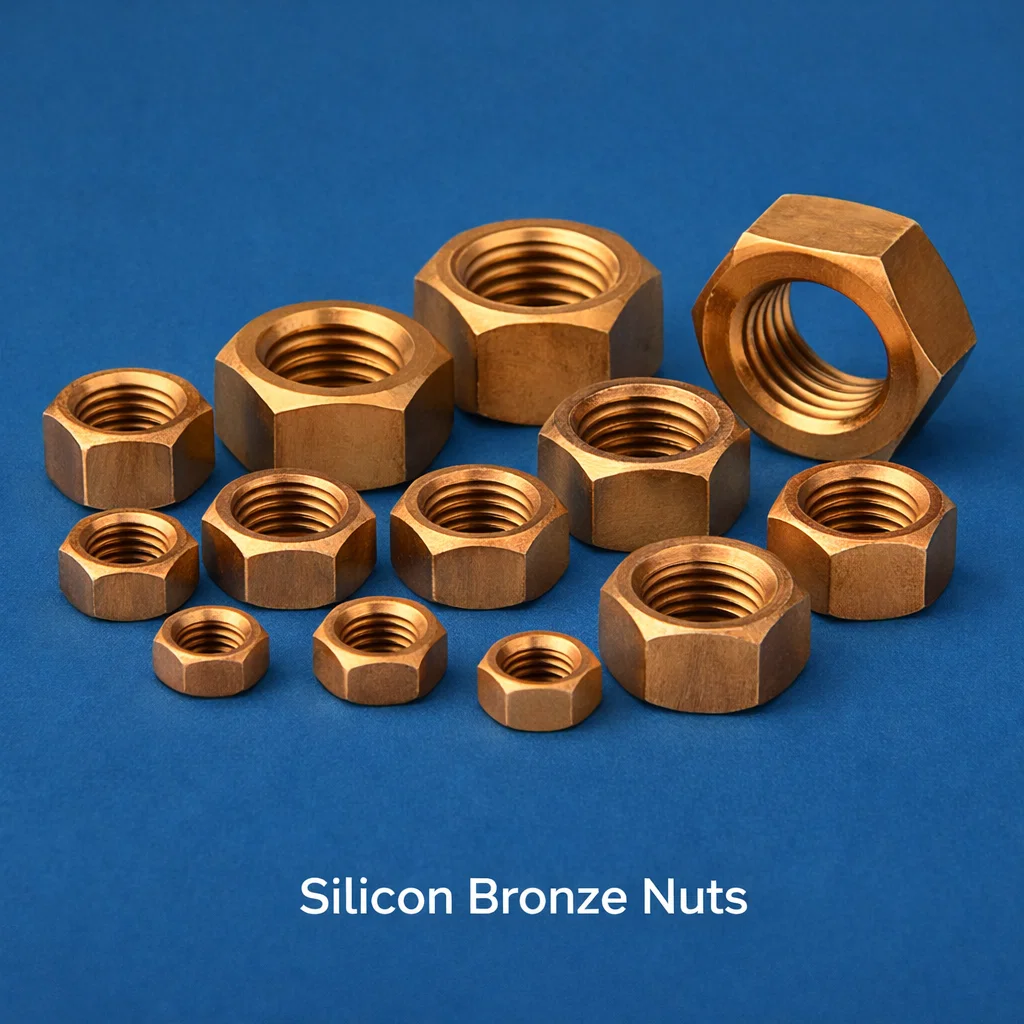

Silicon Bronze Nuts

Silicon Bronze Nuts – Corrosion-Resistant Copper Alloy Nuts for Industrial Fastening

Silicon bronze nuts are precision-engineered fasteners manufactured from C651 and C655 copper-silicon alloy per ASTM B98, providing superior corrosion resistance, non-magnetic characteristics, and reliable mechanical performance. Used by electrical OEMs, EPC contractors, marine engineers, and power utilities in the USA and internationally, silicon bronze nuts are the preferred choice in aggressive environments where standard steel or zinc-plated nuts are susceptible to corrosion, galvanic attack, or magnetic interference.

Product Overview

Brass and Copper Parts manufactures silicon bronze nuts to ASME, ASTM, DIN, and ISO standards. Silicon bronze (C65500) contains approximately 96% copper with 3% silicon and 1% manganese, delivering yield strength up to 70,000 psi alongside excellent ductility. These nuts pair directly with silicon bronze bolts, stainless steel studs, or other non-ferrous fasteners in corrosion-critical assemblies. They are widely used in marine deck hardware, electrical substation grounding, chemical plant piping, and offshore structures.

Product Types and Variants

Silicon Bronze Nut Types

• Silicon Bronze Hex Nuts – Standard full hex nuts, ASME B18.2.2 / DIN 934 / ISO 4032, UNC, UNF, and Metric threads
• Silicon Bronze Heavy Hex Nuts – Larger across-flats for high-load flanged applications, ASME B18.2.2
• Silicon Bronze Coupling Nuts (Hex Long Nuts) – Extended length for rod coupling, DIN 6334
• Silicon Bronze Jam Nuts (Half Nuts) – Low-profile locking nut, ASME B18.2.2 / DIN 439
• Silicon Bronze Flange Nuts – Integrated flange face for load distribution
• Silicon Bronze Cap Nuts (Acorn Nuts) – Domed cap for thread protection and appearance, DIN 1587
• Silicon Bronze Wing Nuts – Hand-tightened, for removable panel assemblies
• Silicon Bronze Square Nuts – For channel framing and structural bolting
• Silicon Bronze T-Nuts – For furniture, woodworking, and composite panel inserts
• Silicon Bronze Weld Nuts – Projections or flange base for welded assemblies

Key Features

• Outstanding corrosion resistance in marine, chemical, and high-humidity environments
• Non-magnetic – suitable for electrical, instrumentation, and sensitive equipment applications
• Non-sparking – safe for use in explosive and flammable atmospheres
• Excellent anti-galling performance when mated with silicon bronze or stainless steel fasteners
• High conductivity – 7% IACS for grounding and earthing assemblies
• Compatible with UNC, UNF, and ISO metric thread standards
• RoHS 2 compliant; lead-free grades available
• Good machinability for custom profiled nuts

Technical Specifications

Raw Material Grades and International Equivalents

Applications in Industry

• Electrical and Power Utilities: Substation grounding assemblies, busbar connections, transformer terminal nuts, earthing conductor fasteners
• Marine and Offshore: Deck hardware, seawater piping flanges, propeller shaft assembly, dock and hull fittings
• EPC and Petrochemical: Process piping flange nuts, chemical plant structural fasteners, heat exchanger assemblies
• Water and Wastewater Treatment: Pump casing bolting, filter press hardware, desalination plant fasteners
• Oil and Gas: Wellhead equipment, subsea fastener assemblies, offshore structure hardware
• Construction and Architectural: Coastal and waterfront structures, cladding fixings, bridge hardware in marine zones

Manufacturing Process

Silicon bronze nuts at Brass and Copper Parts are produced from C651 or C655 silicon bronze bar stock conforming to ASTM B98. The manufacturing process involves hot forging or cold forging of the hex blank, followed by CNC tapping and thread cutting. For precision metric and inch nuts, thread accuracy is verified against ASME B1.1 and DIN 13 thread gauges. All nuts undergo dimensional verification of across-flats, across-corners, bearing face, and thread pitch before packaging and dispatch. Heavy hex nuts and special profiles are available from hot-forged or machined bar stock.

Quality Standards and Certifications

• ASTM B98 – Silicon Bronze Rod, Bar, and Shapes
• ASME B18.2.2 – Hex Nuts and Heavy Hex Nuts (Inch)
• DIN 934 – Hexagon Nuts (Metric)
• ISO 4032 / ISO 4033 – Hexagon Nuts, Style 1 and Style 2
• DIN 439 – Hexagon Thin Nuts (Jam Nuts)
• DIN 1587 – Hexagon Cap Nuts
• RoHS 2 Directive Compliant
• Material Test Certificates (MTC) per EN 10204 3.1
• ISO 9001:2015 Quality Management System

Why Choose Brass and Copper Parts

• Complete range of silicon bronze nut types – hex, heavy hex, flange, cap, coupling, jam, and more
• In-house forging and thread tapping with calibrated thread gauges
• Export-ready packaging and documentation for USA, Europe, and Middle East customers
• Material traceability from mill to finished part
• Custom nut profiles, non-standard thread sizes, and special flanges available
• Responsive technical support for OEM and EPC project requirements

Frequently Asked Questions

What is silicon bronze and why is it used for nuts?

Silicon bronze is a copper alloy containing silicon (1–4%) and manganese. It combines corrosion resistance comparable to 90/10 copper-nickel with tensile strength suitable for structural fastening. It is used for nuts in marine, electrical, and chemical environments where steel corrodes rapidly.

Are silicon bronze nuts compatible with stainless steel bolts?

Yes. Silicon bronze nuts can be used with stainless steel bolts or studs. The galvanic potential difference is moderate; in submerged or highly aggressive environments, use isolation washers or ensure a compatible corrosion protection system.

What thread sizes are available?

We supply silicon bronze nuts from #6 to 2″ (UNC and UNF) and M4 to M48 (metric). Non-standard thread pitches are available on request with minimum order quantities.

Can silicon bronze nuts be used for electrical grounding?

Yes. C651 silicon bronze has electrical conductivity of approximately 7% IACS, making it suitable for grounding conductor connections, busbar nuts, and earthing assemblies in power utility and substation applications.

What is the difference between a hex nut and a heavy hex nut?

Heavy hex nuts have a larger across-flats dimension and greater thickness than standard hex nuts, providing higher bearing load capacity. They are used in high-stress flanged connections and structural applications per ASME B18.2.2.

Do you offer silicon bronze flange nuts?

Yes. We manufacture silicon bronze flange nuts with a serrated or plain integrated flange face, eliminating the need for a separate washer and providing better load distribution on soft or composite substrates.

What surface finishes are available for silicon bronze nuts?

Standard supply is as-machined (natural bronze finish). We can provide polished, bright dipped, or passivated finishes upon request for decorative or anti-tarnish requirements.

Do you supply material test certificates?

Yes. EN 10204 3.1 Mill Test Certificates with full chemical composition and mechanical properties are available for all silicon bronze nut orders.

What is the minimum order quantity?

Standard hex nuts are available from 100 pieces per size. Special profiles and large diameters have varying MOQs. Contact us for project-specific requirements.

Can silicon bronze nuts be used in food processing or pharmaceutical applications?

Copper and copper alloys have inherent antimicrobial properties. Silicon bronze nuts are used in food-grade applications where copper alloy contact is acceptable. Consult applicable regulations and confirm material suitability for your specific application.

Suggested Schema Markup

Recommended structured data: Product schema (name, brand: Brass and Copper Parts, material: Silicon Bronze C655, manufacturer), FAQPage schema for the FAQ section, and BreadcrumbList schema for: Home > Fasteners and Fixings > Silicon Bronze Nuts.

Suggested Image Alt Texts

• “Silicon bronze hex nuts C655 ASTM B98 – Brass and Copper Parts India”
• “Silicon bronze heavy hex nuts UNC thread – marine grade fasteners”
• “C655 silicon bronze coupling nuts – corrosion resistant DIN 6334”
• “Silicon bronze cap nuts acorn nuts – DIN 1587 copper alloy”

Request a Quote

Looking for silicon bronze nuts in standard or custom configurations? Brass and Copper Parts supplies the complete range of silicon bronze nuts to electrical OEMs, EPC contractors, power utilities, and industrial distributors in the USA and worldwide. Contact us for technical specifications, pricing, and delivery timelines.
