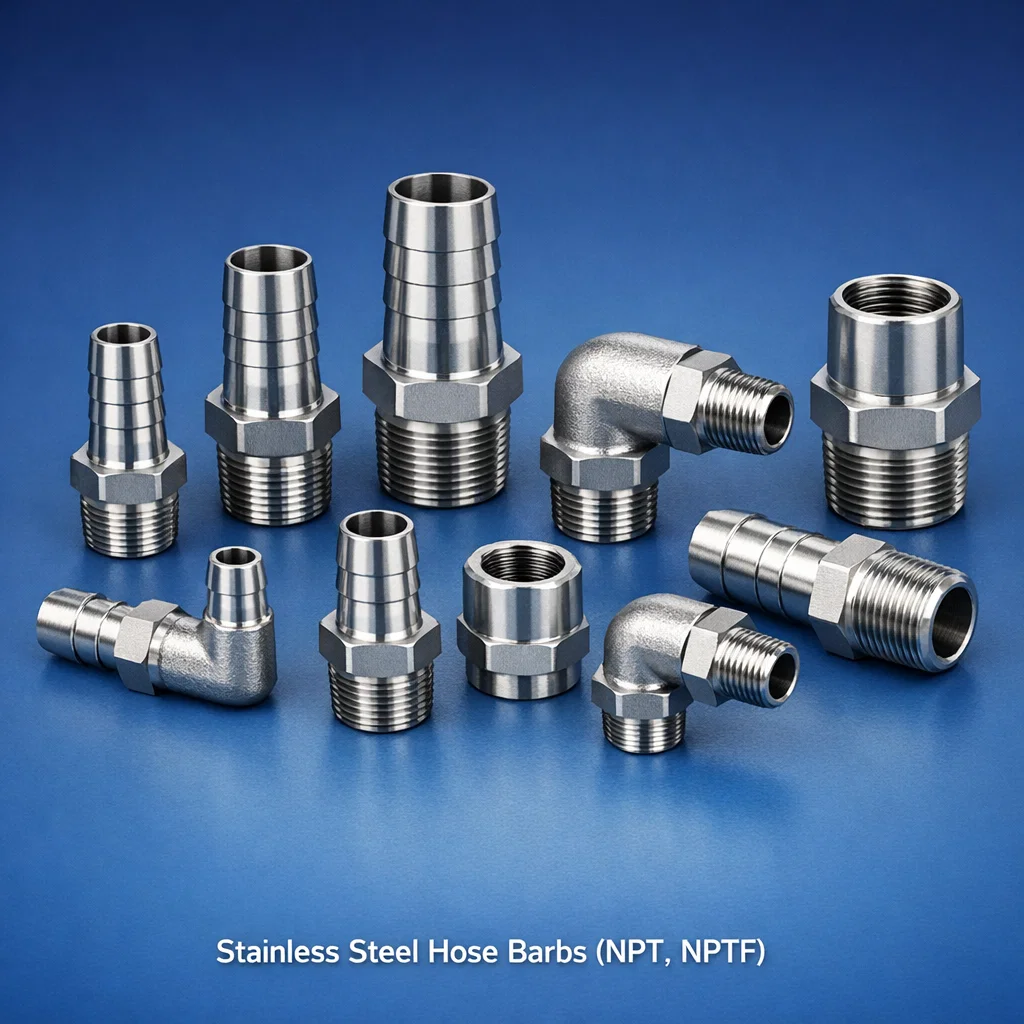

Stainless Steel Hose Barbs – NPT & NPTF Thread | Brass & Copper Parts India

Stainless steel hose barbs with NPT and NPTF threads are precision-machined fluid connectors designed for high-pressure, corrosive, and high-temperature fluid transfer applications where standard brass fittings are unsuitable. Brass & Copper Parts India manufactures stainless steel hose barbs in AISI 304 (SS304), AISI 316 (SS316), and SS316L grades to ASME B16.11 and ASTM A182 standards, supplying USA OEMs, chemical processing plants, food and beverage equipment manufacturers, and pharmaceutical industry contractors. These fittings are available in NPT (ASME B1.20.1) and NPTF (ASME B1.20.3 Dryseal) thread forms from 1/8″ to 2″ with single, double, or multi-barb configurations.

Product Overview

Stainless steel hose barbs are used to create a secure, clamp-free or hose-clamp-assisted connection between a threaded pipe or fitting and a flexible rubber, silicone, or thermoplastic hose. The barb profile — consisting of one or more annular ridges — mechanically grips the hose bore when inserted, and the assembly is secured with a screw clamp or crimp fitting. NPTF (Dryseal) threads provide a metal-to-metal seal at the thread roots and flanks, eliminating the need for PTFE tape or pipe sealant in pressure-critical applications. Our stainless steel hose barbs are CNC-turned from solid SS304 or SS316 bar stock per ASTM A276, with full material certification per ASTM A484.

Key Features

• Dual Thread Availability (NPT & NPTF): NPT threads are available for standard pipe connections requiring sealant; NPTF Dryseal threads provide metal-to-metal seal for high-integrity, fluid-critical applications.
• Grade Options – SS304 and SS316/316L: SS304 for general corrosion resistance; SS316/316L for chloride environments, marine, and pharmaceutical applications where superior pitting resistance is required.
• Barb Retention Design: Barb geometry is engineered for positive hose retention under working pressure — single barb for low-pressure flexible lines, double barb for medium-pressure, and multiple barb for push-on hose assemblies.
• Wide Size Range: Available in 1/8″ through 2″ NPT/NPTF in single and double barb configurations; odd sizes and custom barb diameters available for OEM programs.
• Smooth Interior Bore: Internal bore is turned and polished to minimize flow restriction and prevent bacteria or deposit accumulation — critical for food, pharma, and beverage applications.
• Passivation Finish: All stainless steel barbs are passivated per ASTM A967 (citric or nitric acid bath) to restore the chromium oxide passive layer after machining.

Technical Specifications

Stainless Steel Grade International Equivalents

Product Types and Variants

SS304 Single Barb NPT Male Fittings

Single barb NPT male hose barbs are the most common configuration, suited for low-to-medium pressure flexible hose connections in general industrial service. The threaded end is NPT per ASME B1.20.1 for use with pipe sealant or PTFE tape, and the barb shank is sized for standard hose bore diameters from ¼” to 2″. These are CNC-turned from AISI 304 bar stock (ASTM A276) with passivation finish, and are widely used in cooling water, compressed air, chemical lines, and process water systems.

SS316 Double Barb NPTF Dryseal Fittings

Double barb SS316 fittings with NPTF Dryseal threads are designed for corrosive fluid service — offshore, chemical processing, and pharmaceutical applications where chloride stress corrosion cracking resistance of 316 is required and a reliable metal-to-metal seal at the thread is critical. The NPTF thread is gauged with calibrated L1 and L3 Dryseal gauges. Double barb configuration improves hose retention at pressures exceeding 200 PSI. These fittings carry full ASTM A276 material certifications and are available with EN 10204 3.1 mill certs.

SS316L Hygienic Hose Barbs (Food & Pharma Grade)

For food-grade, dairy, brewery, and pharmaceutical fluid transfer, we supply SS316L hose barbs with electropolished internal bore (Ra ≤ 0.8 µm) to facilitate CIP (Clean In Place) procedures. These fittings comply with FDA 21 CFR 177.2600 surface contact requirements and 3-A Sanitary Standards dimensional guidelines. Male NPTF threads provide a reliable, cleanable seal. Available with crevice-free external surfaces to prevent bacterial harboring.

Stainless Steel Reducing Hose Barb Adapters (NPT)

Reducing barb adapters connect a threaded pipe port of one size to a flexible hose of a smaller or larger diameter. For example, a ½” NPT male thread with a ¼” barb shank allows a large valve or pump outlet to connect to smaller-bore tubing. These are frequently required in instrumentation tubing, hydraulic control circuits, and specialty process equipment. Custom reducing configurations are produced to customer drawings with 2–3 week lead time.

Stainless Steel Equal Tee Hose Barbs

Equal tee hose barb fittings provide a three-way connection — one NPT or NPTF threaded end and two hose barb shanks, or three barb shanks — for splitting or combining flow in flexible hose systems. Used in irrigation manifolds, compressed gas distribution, and laboratory fluid systems, these tee fittings are CNC-machined from SS304 or SS316 bar stock and passivated. Available in ¼” to 1″ sizes with barb-to-barb or barb-to-thread configurations.

Applications by Industry

• Chemical Processing: Connecting flexible hoses to stainless steel or plastic pipe systems carrying acids, alkalis, and aggressive solvents where SS316 corrosion resistance is required.
• Food, Beverage & Dairy: SS316L electropolished barbs for product transfer lines, CIP circuits, and cooling water connections meeting 3-A sanitary standards.
• Pharmaceutical & Biotech: WFI (Water for Injection) and process fluid connections in FDA-regulated manufacturing environments requiring clean-in-place compatible fittings.
• Oil & Gas Instrumentation: NPTF Dryseal fittings for instrument tubing connections in offshore and onshore processing where gas-tight joints are mandatory.
• Industrial OEM Equipment: Integrated into pumps, valves, heat exchangers, and filtration systems by OEM equipment manufacturers for fluid handling connections.
• Marine and Offshore: SS316 barbs for seawater cooling systems, ballast water treatment, and deck hose connections in chloride-rich environments.

Manufacturing Process

Stainless steel hose barbs are CNC-turned from solid bar stock (ASTM A276 SS304 or SS316) on Swiss-type CNC lathe centers for high dimensional repeatability. The barb geometry, thread form, and bore are all produced in a single chucking to maintain concentricity within 0.05 mm TIR. NPT threads are cut to ASME B1.20.1 and inspected with calibrated L1 taper thread plug and ring gauges; NPTF Dryseal threads are inspected with L1 and L3 gauge sets per ASME B1.20.3. Parts are then cleaned ultrasonically, passivated per ASTM A967 in a citric acid bath, and dried. Final inspection includes dimensional report, thread gauge record, and visual inspection per AQL 2.5 level II.

Quality Standards and Certifications

• ISO 9001:2015 Certified Quality Management System
• Material conformance to ASTM A276, A182, and ASTM A484 (stainless general requirements)
• Thread inspection per ASME B1.20.1 (NPT) and ASME B1.20.3 (NPTF Dryseal)
• Passivation per ASTM A967 (Method B – citric acid or Method C – nitric acid)
• EN 10204 3.1 Material Test Certificates available
• RoHS and REACH compliant for USA and EU markets

Why Choose Brass & Copper Parts India

• NPTF Dryseal Gauge Capability: We maintain calibrated L1 and L3 NPTF Dryseal gauge sets — essential for gas-tight joints — which few Indian manufacturers possess.
• Dual Grade Capability: SS304, SS316, and SS316L available from the same facility with full traceability and heat-wise certification.
• Electropolish Capability: In-house electropolishing to Ra ≤ 0.8 µm for pharma and food-grade customers.
• EN 10204 3.1 Certs: Full material traceability available for USA and European OEM customers requiring documented supply chains.
• Bulk OEM Supply: High-volume production capability with container-load shipments, vendor-managed inventory options, and Kanban replenishment programs.

Frequently Asked Questions

What is the difference between NPT and NPTF (Dryseal) threads?

NPT (National Pipe Taper) per ASME B1.20.1 relies on a thread sealant (PTFE tape or pipe dope) to achieve a fluid-tight seal. NPTF (National Pipe Taper Fuel) per ASME B1.20.3 — also called Dryseal — is manufactured to tighter tolerances so the thread crests and roots crush together during assembly, creating a metal-to-metal seal without sealant. NPTF is specified for gas-tight and high-pressure fluid applications where sealant failure is not acceptable.

Can SS304 barbs be used in seawater or marine service?

SS304 is not recommended for continuous seawater immersion due to chloride-induced pitting and crevice corrosion. SS316 or SS316L, which contains 2–3% molybdenum, is the correct grade for marine, coastal, and seawater applications. Please specify your service medium when ordering.

What hose types are compatible with stainless steel hose barbs?

Our stainless barbs are compatible with rubber hose (EPDM, NBR, neoprene), silicone hose, PVC hose, polyurethane tubing, and thermoplastic hose. The barb OD must match the hose ID for proper retention. Consult the hose manufacturer’s fitting size recommendation chart before ordering.

Do you offer electropolished stainless steel hose barbs?

Yes. Electropolished SS316L barbs are available for food, pharma, and biotech applications. Please specify the required Ra value (typically ≤ 0.8 µm) and applicable standard (3-A, FDA, EHEDG) when inquiring.

What certifications come with stainless steel hose barbs?

Standard supply includes EN 10204 2.2 works certificate. EN 10204 3.1 certificates from an accredited mill, third-party inspection reports (SGS, Bureau Veritas), and specific material compliance declarations (RoHS, REACH, DFARS) are available on request.

What is the maximum temperature rating for SS316 hose barbs?

SS316 hose barbs have a service temperature range of -60°C to +870°C for the metal component. Practical system temperature is limited by the flexible hose material attached — EPDM hose typically rates to +150°C, silicone to +230°C.

Can you produce stainless steel hose barbs with BSP (BSPT) threads instead of NPT?

Yes. We produce BSPT (British Standard Pipe Taper, ISO 7/1) and BSPP (ISO 228) threads for export to European, Middle Eastern, and Australian customers. NPT, NPTF, BSP, and metric thread forms are all available.

What is the minimum order quantity?

Standard stock sizes: MOQ 200 pieces. Custom sizes or grades: MOQ 500 pieces, 4–6 week lead time. High-volume blanket orders with monthly releases are accepted.

Is DFARS (Defense Federal Acquisition Regulation Supplement) compliance available?

We can supply stainless steel hose barbs from DFARS-compliant bar stock (US-melted and US-manufactured) with full documentation for defense and government contractor supply chains. Please specify DFARS requirement at the time of inquiry.

Do you supply stainless steel hose barbs with integral hex for torquing?

Yes. Hex across-flats (AF) sections are standard on most configurations for wrench-tightening. Custom hex sizes and overall lengths are available to customer drawings.

Suggested Internal Links

• All Pipe and Hose Fittings
• Stainless Steel Parts and Fittings
• Brass Garden Hose Fittings (related product)
• Brass Welding Hose Nuts and Barbs (related product)
• Stainless Steel Pipe Brackets Pressed (related product)

Request a Quote for Stainless Steel Hose Barbs

Brass & Copper Parts India supplies stainless steel hose barbs (NPT and NPTF) in SS304, SS316, and SS316L to USA OEMs, chemical processing contractors, and industrial distributors. Contact us with your thread specification, barb size, grade, quantity, and certification requirements for a competitive quotation. Request a quote today.
