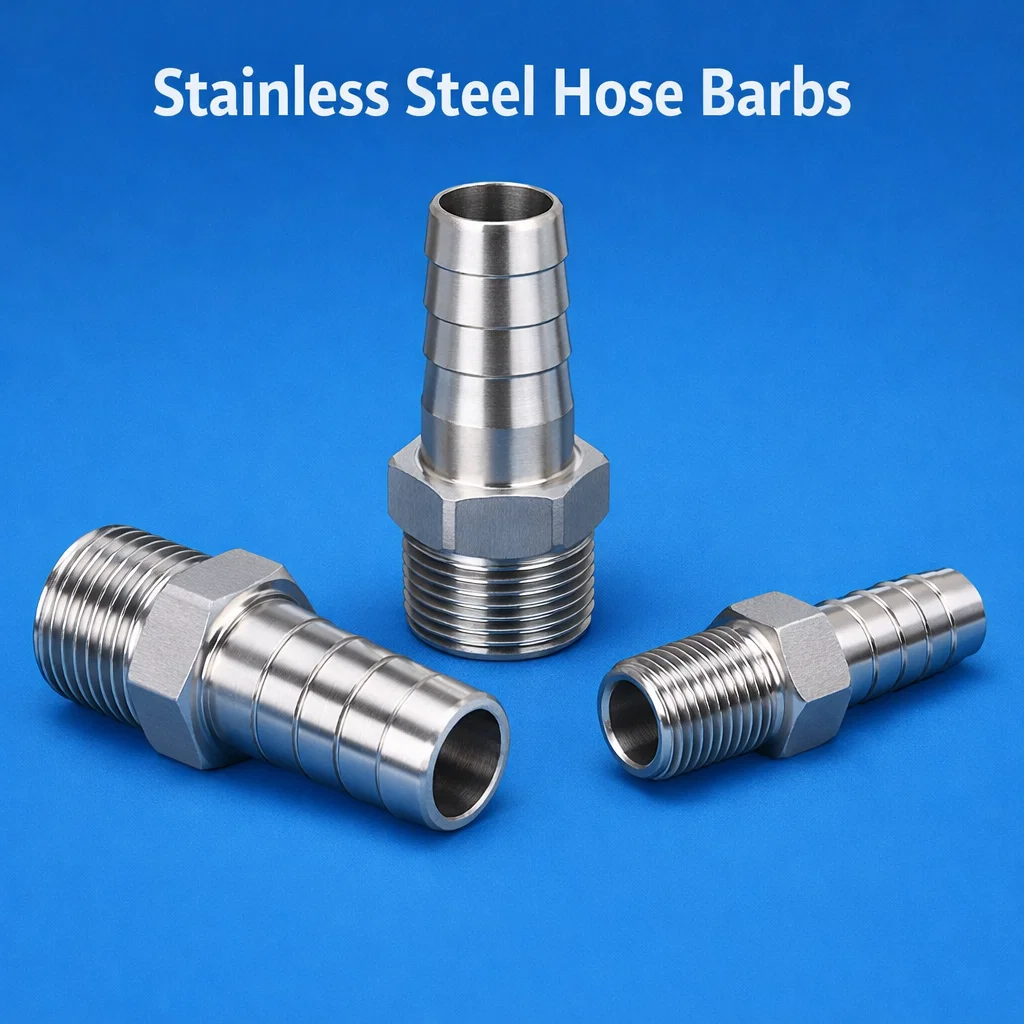

Stainless Steel NPT Hose Barbs

Stainless Steel Hose Barbs, Stainless Steel NPT Hose Barbs

Brass & Copper Parts offers premium-grade Stainless Steel NPT Hose Barbs designed to deliver leak-proof, corrosion-resistant connections across a wide range of fluid handling, pneumatic, and hydraulic systems. Manufactured from high-quality austenitic and duplex stainless steel, our NPT hose barbs combine mechanical strength with superior chemical resistance — making them the ideal choice for industries where reliability is non-negotiable.

With NPT (National Pipe Taper) threading on one end and a serrated barb on the other, these fittings create a secure grip on hoses without the need for clamps in low-to-medium pressure applications. Available in a comprehensive range of sizes and configurations, Brass & Copper Parts’ stainless steel NPT hose barbs meet and exceed industry standards including ASME B1.20.1 for NPT threads.

Key Features & Benefits

• Corrosion Resistance: Ideal for use in aggressive environments including seawater, acids, chemicals, and steam.
• High Strength-to-Weight Ratio: Stainless steel construction provides durability without excessive bulk.
• Leak-Proof Sealing: Tapered NPT threads self-seal with PTFE tape or pipe thread sealant for zero-leak performance.
• Temperature Range: Suitable for applications from -65°F (-54°C) to +450°F (+232°C) depending on hose material.
• Multiple Configurations: Available as straight, 90° elbow, and 45° angled barbs in male NPT threading.
• Hygienic & Food-Safe Options: 316L grade available for food processing and pharmaceutical applications.
• Wide Size Range: Barb sizes from 1/8″ to 1″ with NPT thread sizes from 1/8″ NPT to 1″ NPT.

Material Grades & Specifications

Dimensional Reference Table

Industry Applications

Stainless Steel NPT Hose Barbs from Brass & Copper Parts are trusted across multiple industries including oil & gas, chemical processing, food & beverage, pharmaceuticals, marine engineering, water treatment, HVAC systems, and laboratory equipment. Their combination of NPT threading and serrated barb design ensures fast installation and a secure, long-lasting hose connection that can withstand vibration, pressure pulses, and thermal cycling.

Standards & Compliance

• NPT Thread: ASME B1.20.1
• Material Standard: ASTM A276 / A479 / A182
• Dimensional Standard: MSS SP-114
• Surface Finish: 2B / Electropolished (on request)
• Testing: Hydrostatic tested, PMI (Positive Material Identification) available

Frequently Asked Questions (FAQ)

Q1. What is the difference between SS 304 and SS 316 NPT hose barbs?

SS 316 contains 2–3% molybdenum, which provides enhanced resistance to chloride pitting and crevice corrosion compared to SS 304. For marine, coastal, or chemical environments, SS 316 or 316L is recommended. For general-purpose industrial use, SS 304 is a cost-effective choice.

Q2. Do I need clamps with NPT hose barbs?

In low-pressure applications (below 50 PSI), hose barbs may hold without clamps depending on hose wall thickness and inside diameter tolerance. However, for safety and reliability in pressurized systems, we recommend using appropriately sized hose clamps or ferrules in conjunction with NPT hose barbs.

Q3. Are your stainless steel NPT hose barbs suitable for food-grade applications?

Yes. Our SS 316L hose barbs comply with FDA and ASME BPE standards and are suitable for food processing, dairy, brewing, and pharmaceutical fluid transfer. We also offer electropolished finishes to meet hygienic requirements.

Q4. What thread sealant should I use with NPT hose barbs?

PTFE tape (Teflon tape) or an anaerobic pipe thread sealant compound is recommended for NPT connections. Apply 2–3 wraps of PTFE tape in the direction of threading. Avoid over-tightening as NPT threads are self-sealing by design.

Q5. Can you supply custom sizes or non-standard configurations?

Absolutely. Brass & Copper Parts specializes in custom-engineered stainless steel fittings. We can manufacture NPT hose barbs in non-standard hose IDs, stepped barb configurations, custom lengths, and special alloys including SS 904L, Duplex 2205, and Super Duplex 2507 upon request.

Q6. What is the typical lead time for bulk orders?

Standard sizes are maintained in stock for dispatch within 2–5 business days. Custom or non-standard parts typically require 2–4 weeks depending on order volume and material availability.

Why Choose Brass & Copper Parts?

At Brass & Copper Parts, we combine decades of manufacturing expertise with stringent quality control to deliver fittings that perform under the most demanding conditions. Every batch is inspected for dimensional accuracy, thread quality, and surface finish before dispatch. We serve OEMs, EPC contractors, distributors, and MRO buyers across India and international markets.
