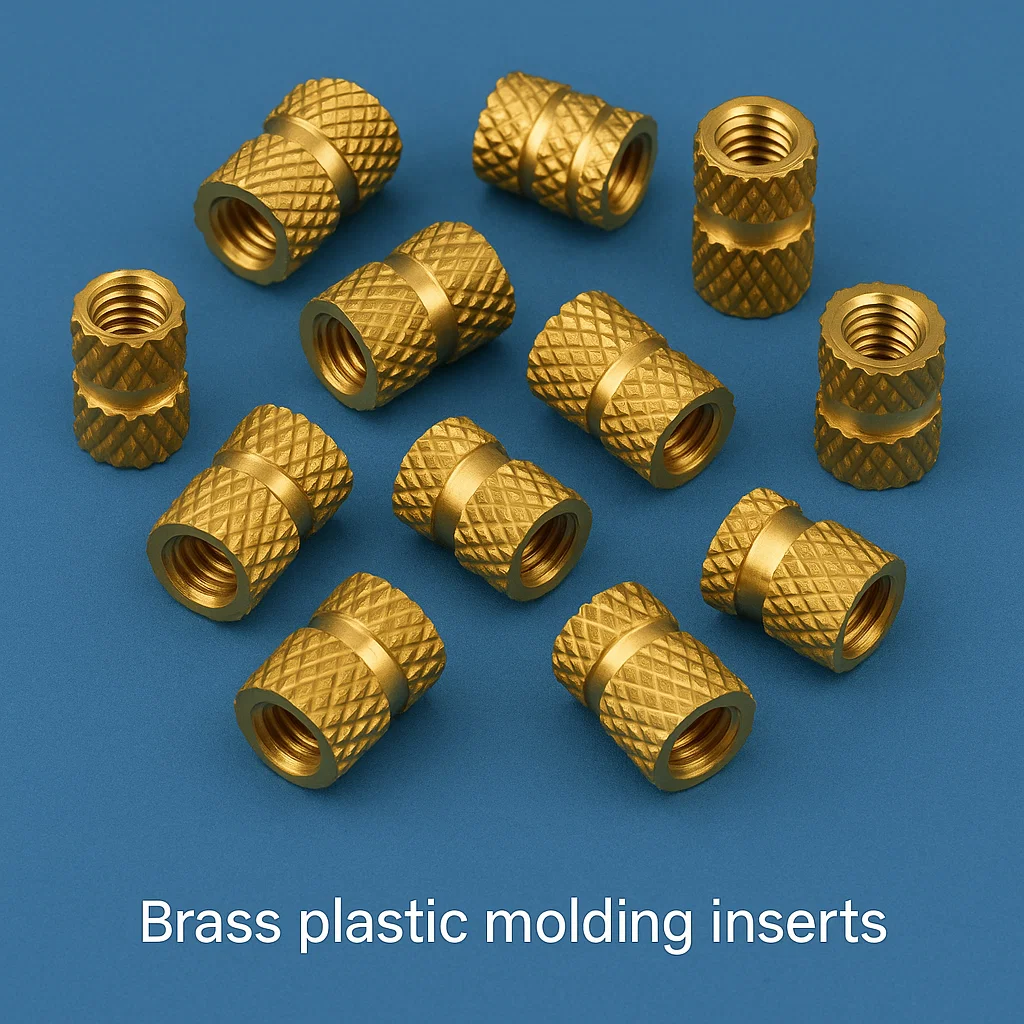

Brass plastic molding inserts, Brass molding inserts, Brass threaded inserts

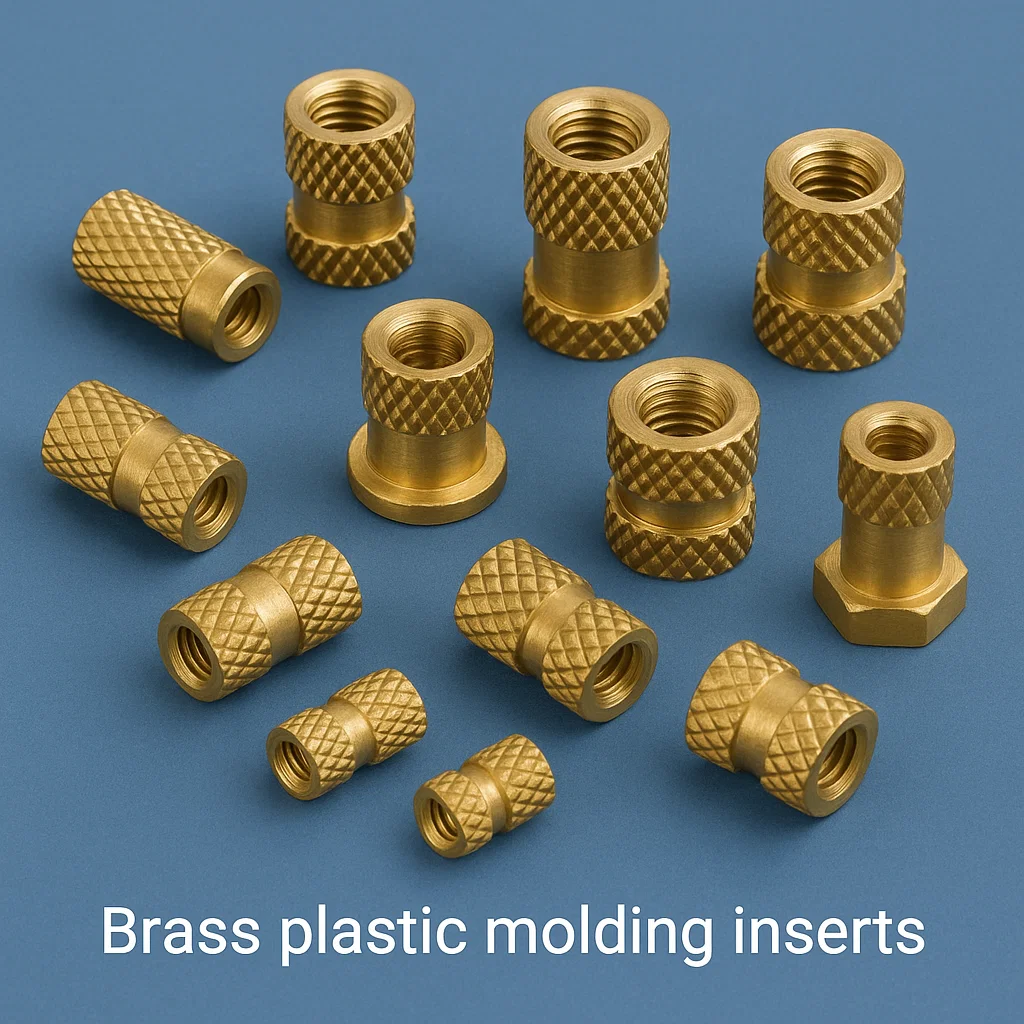

Brass plastic molding inserts, Brass inserts

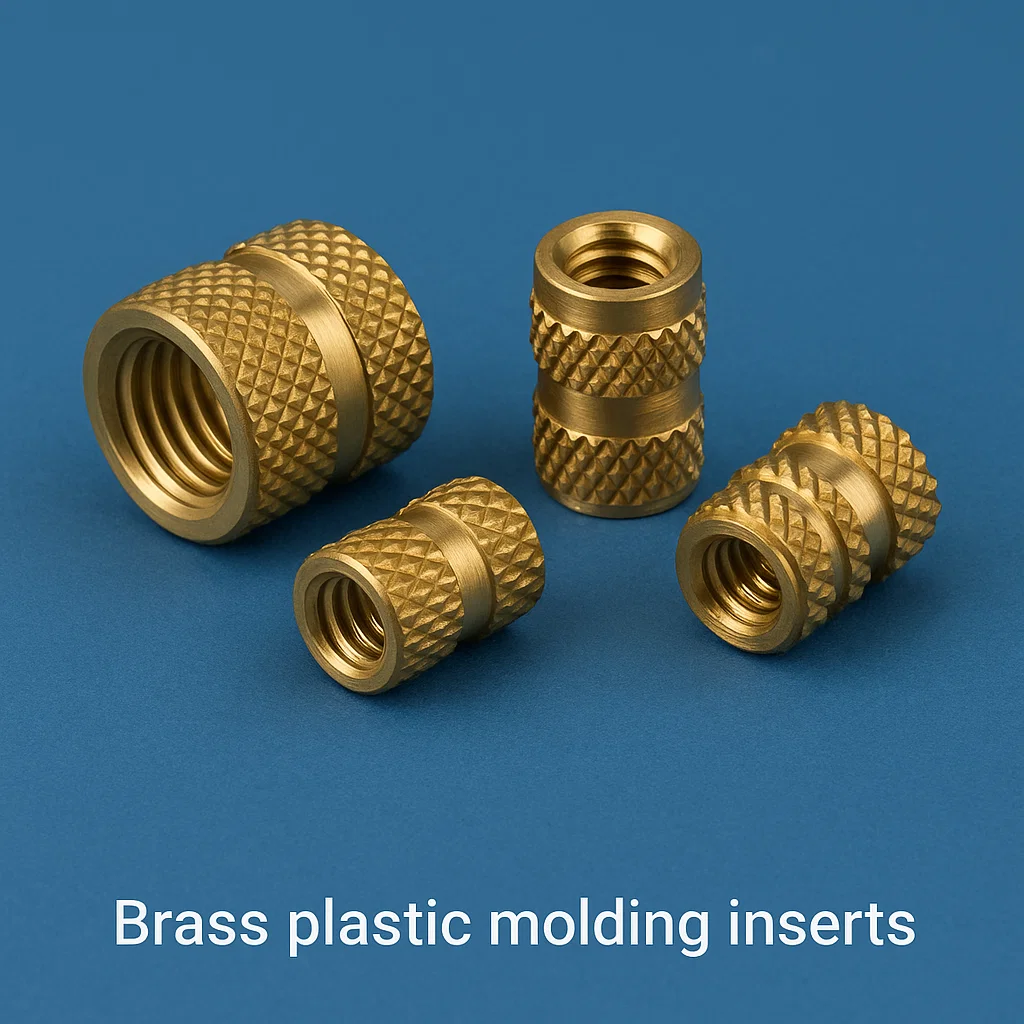

Brass plastic molding inserts

Introduction

Brass plastic molding inserts are threaded metal components embedded into plastic parts during or after the molding process to provide strong, durable threaded connections. These inserts combine the lightweight, cost-effective properties of plastic with the superior thread strength and durability of brass, making them essential components in automotive, electronics, appliances, and industrial applications.

Types of Brass Molding Inserts

Heat-Set Inserts (Press-In)

  • Knurled exterior: Diamond or straight knurl patterns for mechanical retention
  • Tapered design: Facilitates insertion and prevents cracking
  • Applications: Post-molding installation using heated insertion tools

Ultrasonic Inserts

  • Energy director features: Sharp ridges that focus ultrasonic energy
  • Undercut design: Mechanical locks created during ultrasonic welding
  • Applications: High-volume production with automated insertion

Molded-In Inserts

  • Retention grooves: Multiple circumferential grooves for plastic flow
  • Pilot features: Ensure proper positioning in mold cavities
  • Applications: Insert molding during plastic injection process

Self-Tapping Inserts

  • External cutting threads: Cut into pre-formed holes
  • Hex or slotted drive: For installation with standard tools
  • Applications: Field installation and repair applications

Threaded Studs and Standoffs

  • Male threaded ends: For through-hole mounting applications
  • Various lengths: Custom lengths for specific stack-up requirements
  • Applications: PCB mounting, panel assembly

Thread Specifications

Metric Threads (ISO Standard)

  • M2 to M12: Most common sizes for plastic applications
  • Pitch specifications: Fine pitch (0.4-1.75mm) for precision applications
  • Class fits: 6H internal threads typical for inserts

Imperial Threads (ANSI Standard)

  • #2-56 to 1/2-13: Standard sizes for North American markets
  • UNC/UNF: Coarse and fine thread options available
  • Class fits: 2B internal threads standard

Specialized Threads

  • Self-tapping threads: Modified profiles for direct plastic engagement
  • Captive threads: Internal features prevent complete screw removal
  • Left-hand threads: For applications requiring reverse rotation

Molding Styles and Installation Methods

Insert Molding (In-Mold)

  • Process: Inserts placed in mold before plastic injection
  • Advantages: Highest strength, automated process, no secondary operations
  • Considerations: Requires mold modifications, higher tooling costs
  • Temperature range: Withstands injection molding temperatures (200-300°C)

Heat Installation (Post-Mold)

  • Process: Heated insertion tool melts plastic around insert
  • Temperature: Typically 200-260°C depending on plastic type
  • Installation speed: 2-5 seconds per insert
  • Equipment: Heated insertion presses, soldering iron adapters

Ultrasonic Installation

  • Process: High-frequency vibration melts plastic interface
  • Frequency: 20kHz or 40kHz systems common
  • Advantages: Fast installation, precise control, no external heating
  • Cycle time: 0.5-2 seconds per insert

Cold Press Installation

  • Process: Mechanical interference fit
  • Applications: Soft plastics, temporary assemblies
  • Limitations: Lower holding strength, potential for stress cracking

Brass Grades and Specifications

Free-Cutting Brass (C36000)

  • Composition: 60% Cu, 35% Zn, 3% Pb
  • Properties: Excellent machinability, good corrosion resistance
  • Applications: High-volume production, complex geometries
  • Tensile strength: 345-415 MPa

Naval Brass (C46400)

  • Composition: 60% Cu, 39% Zn, 1% Sn
  • Properties: Superior corrosion resistance, marine applications
  • Applications: Outdoor, marine, chemical environments
  • Tensile strength: 380-450 MPa

Architectural Bronze (C38500)

  • Composition: 57% Cu, 40% Zn, 3% Pb
  • Properties: Good strength, decorative finish capability
  • Applications: Architectural, decorative assemblies
  • Tensile strength: 325-395 MPa

Unleaded Brass (C37700)

  • Composition: 60% Cu, 40% Zn, low lead content
  • Properties: Environmentally compliant, good machinability
  • Applications: Potable water, food contact, RoHS compliance
  • Tensile strength: 340-410 MPa

Technical Specifications

Dimensional Standards

  • Length tolerance: ±0.05mm standard, ±0.02mm precision
  • Thread tolerance: 6H (metric), 2B (imperial) standard
  • Concentricity: 0.05mm TIR maximum
  • Surface finish: 1.6 Ra maximum on threads

Mechanical Properties

  • Thread strength: 80-120% of base screw strength
  • Pull-out force: 500-2000N depending on size and plastic
  • Torque values: 60-80% of metal-to-metal values
  • Temperature range: -40°C to +150°C continuous

Installation Parameters

  • Heating temperature: 15-30°C above plastic softening point
  • Insertion force: 50-200N depending on insert size
  • Cooling time: 5-15 seconds for heat-set installation
  • Hole size: 0.1-0.2mm larger than insert OD

Foreign Terms and Related Terminology

German Terms

  • Gewindeeinsatz: Threaded insert
  • Einpressmutter: Press-in nut
  • Warmeinbau: Heat installation
  • Spritzgießen: Injection molding
  • Messinggewinde: Brass thread

French Terms

  • Insert taraudé: Threaded insert
  • Écrou à sertir: Clinch nut
  • Moulage par injection: Injection molding
  • Pose à chaud: Heat installation
  • Filetage laiton: Brass threading

Japanese Terms

  • ねじインサート (Neji insāto): Screw insert
  • 真鍮 (Shinchū): Brass
  • 射出成形 (Shashtsu seikei): Injection molding
  • 熱圧入 (Netsu atsunyū): Heat press-fit
  • めねじ (Me-neji): Female thread

Italian Terms

  • Inserto filettato: Threaded insert
  • Stampaggio a iniezione: Injection molding
  • Installazione a caldo: Heat installation
  • Ottone: Brass
  • Madrevite: Female thread

Quality Control and Testing

Visual Inspection

  • Thread form verification: Pitch diameter, major/minor diameters
  • Surface defects: Cracks, porosity, machining marks
  • Dimensional compliance: Length, diameter, concentricity

Functional Testing

  • Go/No-Go gauging: Thread fit verification
  • Pull-out testing: Insertion strength validation
  • Torque testing: Installation and removal torques
  • Salt spray testing: Corrosion resistance (ASTM B117)

Process Validation

  • Installation force monitoring: Real-time force feedback
  • Temperature profiling: Heat-set installation temperatures
  • Cycle time optimization: Production efficiency metrics
  • Statistical process control: Dimensional variation tracking

Heat-Set Inserts (Press-In)

heat-set inserts, heated inserts, press-in inserts, thermal installation inserts, knurled brass inserts, diamond knurl inserts, straight knurl inserts, tapered brass inserts, post-molding inserts, heated insertion tools, soldering iron inserts, temperature controlled installation, thermoplastic inserts, hot press inserts, heated installation press, brass heat inserts, thermal expansion inserts, installation temperature inserts, heated brass inserts, press-fit inserts, hot installation inserts, thermal bonding inserts, heat-activated inserts, warm installation inserts, heated press inserts

Ultrasonic Inserts

ultrasonic inserts, ultrasonic welding inserts, energy director inserts, ultrasonic installation, high-frequency inserts, vibration welding inserts, sonic welding inserts, 20kHz inserts, 40kHz inserts, ultrasonic brass inserts, automated ultrasonic installation, ultrasonic plastic welding, energy focusing inserts, undercut design inserts, ultrasonic horn compatible, vibration installation inserts, sonic bonding inserts, ultrasonic embedding, frequency welding inserts, oscillating installation, ultrasonic fusion inserts, acoustic welding inserts, resonant frequency inserts, ultrasonic molding inserts, high-frequency bonding inserts

Molded-In Inserts

molded-in inserts, insert molding, in-mold inserts, injection molded inserts, overmolded inserts, retention groove inserts, pilot feature inserts, mold cavity inserts, insert overmolding, thermoplastic overmolding, injection molding inserts, molding process inserts, in-situ molding, embedded molding inserts, plastic encapsulation inserts, molded brass inserts, insert positioning systems, mold-integrated inserts, captive molding inserts, precision molded inserts, automated insert molding, robot-placed inserts, multi-shot molding inserts, insert feeding systems, molding cycle inserts

Self-Tapping Inserts

self-tapping inserts, thread-cutting inserts, self-drilling inserts, cutting thread inserts, external thread inserts, hex drive inserts, slotted drive inserts, field installation inserts, repair inserts, retrofit inserts, thread-forming inserts, tap-in inserts, screw-in inserts, direct installation inserts, threaded hole inserts, cutting edge inserts, installation tool inserts, manual installation inserts, service inserts, maintenance inserts, removable inserts, adjustable inserts, thread-cutting brass, drilling inserts, penetrating inserts, sharp thread inserts

Threaded Studs and Standoffs

threaded studs, brass standoffs, spacer studs, mounting studs, PCB standoffs, circuit board spacers, male threaded studs, double-ended studs, hex standoffs, round standoffs, electronic standoffs, panel mounting studs, through-hole studs, stack-up spacers, board-to-board spacers, chassis mounting studs, custom length studs, precision standoffs, insulated standoffs, grounding studs, support pillars, mounting posts, threaded spacers, electronic assembly studs, mechanical standoffs, hardware standoffs, fastener studs, assembly standoffs, component spacing studs, electronic hardware standoffs

Universal/Cross-Type

brass inserts, threaded inserts, plastic inserts, molding inserts, fastener inserts, mechanical inserts, precision inserts, industrial inserts, automotive inserts, electronics inserts, appliance inserts, furniture inserts, assembly hardware, threaded fasteners, permanent fasteners, captive hardware, embedded fasteners, metal inserts, engineering fasteners, specialty fasteners, custom inserts, OEM inserts, production inserts, manufacturing hardware, assembly components, joining hardware, connection hardware, mounting hardware, structural inserts, load-bearing inserts

Applications by Industry

Automotive

  • Interior trim panels, dashboard assemblies
  • Electronic control unit housings
  • HVAC system components
  • Seat adjustment mechanisms

Electronics

  • PCB standoffs and spacers
  • Enclosure assemblies
  • Connector housings
  • Heat sink mounting

Appliances

  • Control panel assemblies
  • Door handle mechanisms
  • Internal component mounting
  • Service access panels

Industrial Equipment

  • Control enclosures
  • Instrument housings
  • Maintenance access points
  • Assembly fixtures

Design Considerations

Plastic Compatibility

  • Thermoplastics: ABS, PC, Nylon, POM optimal
  • Wall thickness: Minimum 2x insert diameter
  • Boss design: Tapered walls prevent sink marks
  • Gate location: Avoid direct impingement on insert

Stress Management

  • Thermal expansion: Brass/plastic CTE mismatch considerations
  • Stress concentration: Generous radii around inserts
  • Assembly torques: Reduced values for plastic assemblies
  • Environmental factors: Temperature cycling, chemical exposure

This comprehensive guide covers the essential aspects of brass plastic molding inserts, from basic types through advanced technical specifications and international terminology. Proper selection and application of these components ensures reliable, long-lasting threaded connections in plastic assemblies across diverse industrial applications.
