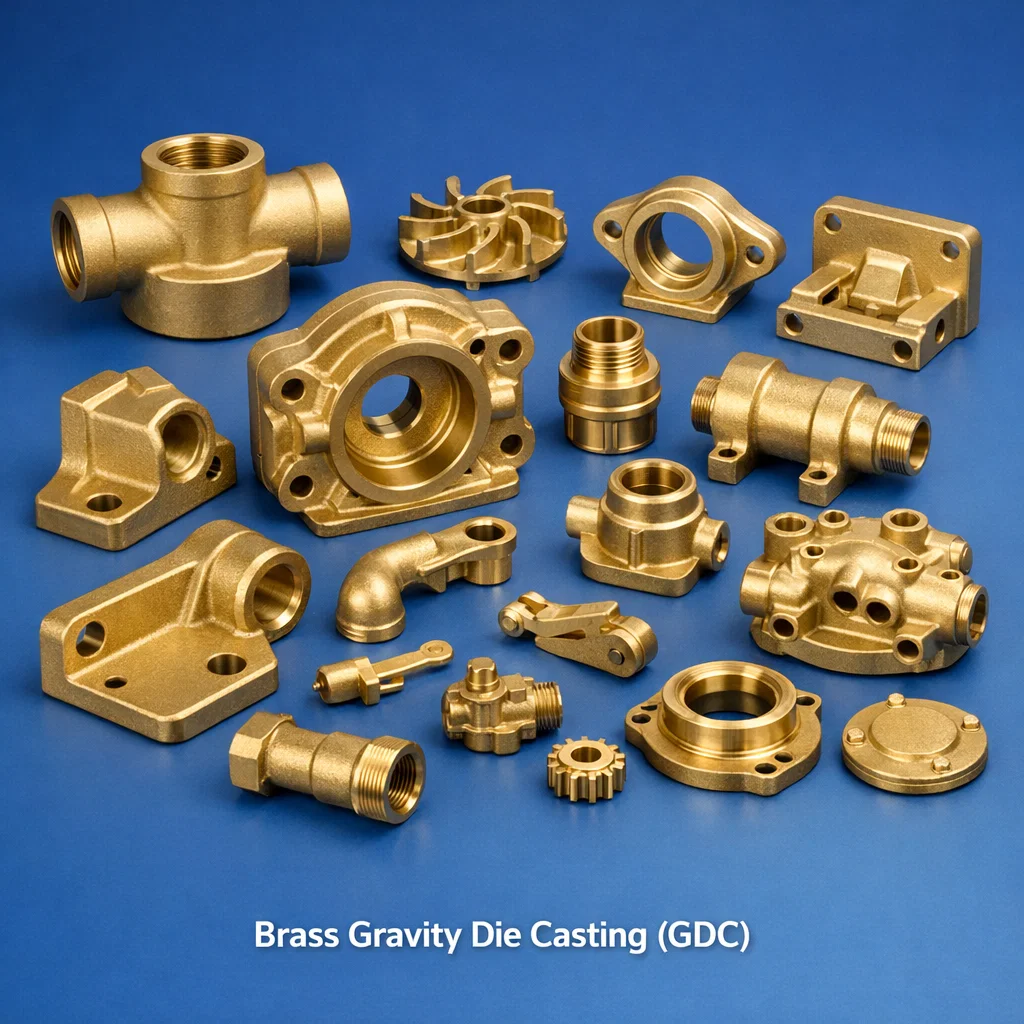

Brass Gravity Die Casting (GDC)

Brass gravity die casting (GDC), also referred to as brass permanent mold casting or brass gravity permanent mold casting, is a casting process where molten brass is poured under gravity into a reusable metal die (mold) made from steel or cast iron, producing castings with significantly better dimensional accuracy, superior surface finish, and improved mechanical properties compared to sand casting. The gravity die process is distinct from pressure die casting — the metal fills the die solely under gravitational force without applied pressure, making it suitable for thicker-wall brass components where porosity-free dense microstructure is required. Brass & Copper Parts operates brass GDC facilities producing components in CuZn39Pb2 (CZ121), CuZn38Pb2 (CW608N), lead-free brass (C87850), and dezincification-resistant (DZR) grades for plumbing valves, fittings, electrical components, and precision engineering applications.

Product Overview

Brass gravity die casting uses split metal dies (typically H13 or P20 tool steel or ductile iron) preheated to 200–300°C to reduce thermal shock and improve metal flow. Molten brass at 950–1050°C is ladled or automatically poured into the die cavity, fills under gravity, and solidifies in 15–60 seconds depending on section thickness. The reusable die provides consistent cavity geometry across thousands of casting cycles, delivering production repeatability unachievable with expendable sand molds. GDC brass castings achieve dimensional tolerances CT5–CT7 (ISO 8062-3), surface finish Ra 3.2–6.3 μm as-cast, and denser microstructure (fewer shrinkage voids) compared to sand cast brass. Brass & Copper Parts produces GDC brass castings in component weights from 0.05 kg to 5 kg, with production rates of 100–300 pieces per hour per cavity depending on section thickness and cooling.

Key Features

• Better dimensional accuracy than sand casting – CT5–CT7 vs CT8–CT10 for sand cast brass
• Improved surface finish – Ra 3.2–6.3 μm as-cast, reducing secondary machining
• Denser microstructure – Faster solidification in metal die refines grain structure, improving mechanical properties
• Reusable tooling – Steel dies last 50,000–200,000+ shots, reducing per-piece tooling amortization
• High production rates – 100–300 pieces/hour vs 20–50 for sand casting
• Good thin-wall capability – Wall thickness from 3 mm achievable in brass GDC
• Lead free brass capability – NSF/ANSI 61 compliant lead free GDC castings for potable water

Technical Specifications

Brass Alloy Grades for GDC

Product Types and Variants

Brass GDC Valve Bodies and Plumbing Fittings

Gate valve bodies, ball valve bodies, globe valves, angle valves, and pipe fittings from ½” to 3″ nominal bore in CuZn39Pb2 or lead-free silicon brass (C87850) are produced by gravity die casting for high-volume plumbing hardware supply. GDC produces valve bodies with consistent wall thickness, accurate bore dimensions, and clean flange face surfaces, reducing per-piece machining time compared to sand cast alternatives. Valve bodies produced by GDC at Brass & Copper Parts conform to BS 1400, EN 1982, and ASTM B584 material requirements, with hydrostatic pressure testing at 1.5× rated pressure as standard for PN10/PN16 rated components.

Brass GDC Electrical and Electronic Components

Electrical connector bodies, switchgear components, distribution board fittings, busbar connectors, and cable gland bodies in free-cutting brass (C36000 / CW614N) are gravity die cast for the electrical industry at production rates compatible with high-volume assembly requirements. GDC produces electrical brass components with consistent thread form accuracy and dimensional repeatability suitable for automated assembly line use. The dense microstructure of GDC brass castings provides reliable mechanical clamping strength in threaded connections compared to sand cast alternatives with higher porosity levels. Brass & Copper Parts GDC electrical components meet IEC 60669, BS 951, and equivalent national electrical standards upon request.

Lead Free Brass GDC for Potable Water Applications

NSF/ANSI 61 and AB 1953 (California) compliant lead free brass gravity die castings in silicon brass C87850 (CC756S) are produced for the US, Canadian, and Australian plumbing fixture markets where lead-free compliance is mandatory for potable water contact components. GDC lead free brass achieves the same dimensional accuracy and production efficiency as standard leaded brass GDC, while providing certified weighted average lead content ≤0.25%. Brass & Copper Parts supplies NSF 372 documentation, RoHS compliance declaration, and chemical analysis certificates with all lead free GDC brass shipments, supporting OEM plumbing product certification submissions to NSF International or equivalent bodies.

DZR Brass GDC for Hot Water Systems

Dezincification-resistant (DZR) brass gravity die castings in CW602N (CuZn35Pb1AlAs) conforming to BS EN 12288 are produced for hot water system valves, radiator valves, compression fittings, and central heating components where aggressive soft water conditions require dezincification resistance. DZR GDC brass components pass the dezincification resistance test per ISO 6509 (plug depth ≤200 μm) and are certified for use in plumbing systems in the UK, Australia (AS 2345), and EU markets where DZR compliance is required by building codes. Brass & Copper Parts supplies DZR GDC castings with EN 12288 compliance documentation and ISO 6509 dezincification test reports.

Brass GDC Automotive and Industrial Components

Hydraulic fittings, pneumatic valve bodies, decorative trim components, sensor housings, and precision mechanical assembly parts in brass alloys are produced by gravity die casting for automotive, HVAC, and general industrial OEM applications. GDC provides the production economics and dimensional consistency required for JIT (just-in-time) component supply to assembly plants, with lot-to-lot consistency ensured by the reusable metal die tooling. Brass & Copper Parts produces automotive and industrial GDC brass components with PPAP (Production Part Approval Process) documentation, SPC (statistical process control) capability analysis, and IATF 16949-aligned quality planning for tier-1 and tier-2 automotive supply chain customers.

Brass GDC with Integral Sand Cores for Internal Passages

Complex brass GDC components requiring internal passages — such as multi-port manifolds, pump bodies, valve bodies with internal chambers, and hydraulic connector bodies — are produced using resin-bonded sand cores inserted into the metal die prior to casting. Sand cores enable internal cavity geometries that cannot be formed by the metal die alone, combining the dimensional accuracy of GDC external surfaces with the flexibility of sand core internal features. Brass & Copper Parts manufactures GDC components with up to 4 sand cores per casting, with core setting accuracy of ±0.3 mm ensuring consistent wall thickness on cored passages.

Applications by Industry

Manufacturing Process

Brass GDC at Brass & Copper Parts uses split steel dies preheated to 200–280°C with release agent coating to prevent metal sticking and extend die life. Molten brass is prepared in induction furnaces at 950–1020°C, analyzed by OES spectrometer for compositional compliance, and ladled or poured by semi-automatic pouring robots into the die cavity. Solidification time is controlled by die cooling channels carrying water or air at regulated flow rates. After solidification, dies are opened, castings extracted, and flash trimmed in power press trimmers with matched trim dies. Shot blasting, visual inspection, and dimensional sampling are performed before despatch. Die life monitoring is maintained with shot count recording, dimensional audit of the die cavity, and scheduled maintenance intervals to ensure casting quality consistency throughout the die life.

Quality Standards and Certifications

• ASTM B584 – Copper alloy sand castings (applicable to GDC brass alloys)
• EN 1982 / EN 12164 – European copper alloy casting and wrought standards
• BS 1400 – British standard for copper alloy castings
• NSF/ANSI 61 & 372 – Lead free brass GDC for potable water
• BS EN 12288 – Dezincification resistance for DZR grade GDC
• ISO 9001:2015 – Quality management system
• RoHS / REACH compliance – For lead free and standard brass GDC

Why Choose Brass & Copper Parts

Brass & Copper Parts operates dedicated brass GDC production lines with in-house die design, die manufacturing, and die maintenance capabilities. Our tool room produces H13 steel GDC dies with CNC die-sinking EDM accuracy, ensuring cast cavity dimensions hold tight tolerances throughout the die life. We maintain dedicated production lines for lead free, DZR, and standard leaded brass GDC, with segregated raw material storage and dedicated furnaces to prevent cross-contamination. SPC monitoring is implemented on critical casting dimensions, with process capability indices (Cpk) reported to customers on request. We supply GDC brass castings to plumbing OEMs, electrical manufacturers, automotive tier suppliers, and distributor customers globally.

Frequently Asked Questions

What is the difference between gravity die casting and pressure die casting for brass?

In gravity die casting (GDC), molten brass fills the die under its own weight (gravity only). In high-pressure die casting (HPDC), metal is injected at high pressure (700–1,000 bar) using a plunger system. HPDC produces finer surface finish (Ra 0.8–3.2 μm), tighter tolerances (CT3–CT5), and faster cycle times, but the high injection pressure traps gas, producing porosity that prevents heat treatment and limits pressure-tight applications. GDC produces lower-porosity, more pressure-tight castings suitable for valve and fitting applications where hydrostatic integrity is critical.

Can GDC brass castings be used for potable water without NSF certification?

In most US states, California, and other NSF/AB 1953 jurisdictions, plumbing components in contact with potable water must be tested and certified under NSF/ANSI 61 and/or NSF/ANSI 372 by an accredited third-party certification body (NSF International, UL, CSA, etc.). Brass & Copper Parts supplies the GDC castings with chemical analysis documentation (NSF 372 weighted average lead calculation) to support OEM customers’ NSF certification submissions, but the final product NSF 61 listing must be obtained by the plumbing product manufacturer for their complete assembled product.

What is the minimum tooling investment for brass GDC?

A single-cavity H13 steel GDC die for a simple brass valve body or fitting typically costs USD 3,000–8,000 depending on complexity and size. Multi-cavity tooling (2, 4, or 6 cavities) increases tooling cost but reduces per-piece casting cost significantly. Die life expectancy of 100,000–500,000 shots makes GDC tooling cost highly economical per piece for production volumes above 5,000–10,000 pieces per year. Brass & Copper Parts offers tooling amortization arrangements for committed production volumes.

What draft angles are required for brass GDC tooling?

External surfaces in brass GDC typically require 1–2° draft angle for die release. Internal surfaces (cores) require 2–3° draft. Zero-draft or negative-draft features require side actions (sliders) in the die design, adding tooling cost and cycle time. Brass & Copper Parts’ in-house die design engineers review customer drawings for draft angle compliance before tooling manufacture, providing design for manufacture (DFM) recommendations to minimize tooling cost while achieving all functional requirements.

What is the typical cycle time for brass GDC production?

Cycle time for brass GDC depends on casting weight and wall thickness: thin-wall components (3–5 mm, 0.1–0.5 kg) cycle in 20–40 seconds; medium components (5–10 mm wall, 0.5–2 kg) cycle in 40–80 seconds; heavier castings (2–5 kg) cycle in 80–150 seconds. Including trimming and inspection, net production rates of 100–300 pieces per hour per die set are typical for standard brass valve and fitting components.

Can complex internal passages be produced in brass GDC?

Yes, using expendable resin-bonded sand cores or permanent metal cores (for simple internal geometries). Resin sand cores enable complex, non-tapered internal passages in GDC brass — commonly used for manifold bodies, valve internal chambers, and pump bodies with inlet/outlet ports. Core setting accuracy of ±0.3–0.5 mm is achievable. Complex cored castings require longer cycle times for core setting but remain significantly faster than sand casting equivalents.

What surface treatments are available for GDC brass castings?

Standard: as-cast (Ra 3.2–6.3 μm) or shot-blasted finish. Optional: CNC machining to drawing, electroless nickel plating, electrolytic nickel or chrome plating, powder coat painting, anodizing (for aluminum alloys), and hot-dip tinning for food-contact applications. Brass GDC components can also be supplied polished to mirror finish for decorative applications. Surface treatment specifications are discussed at order placement stage with lead time and cost implications considered.

Request a Quote

Brass & Copper Parts produces brass gravity die castings (GDC) in standard and lead-free alloys for plumbing, electrical, automotive, and industrial applications. Share your drawings, alloy requirements, and annual volumes for a competitive tooling and per-piece pricing proposal.
