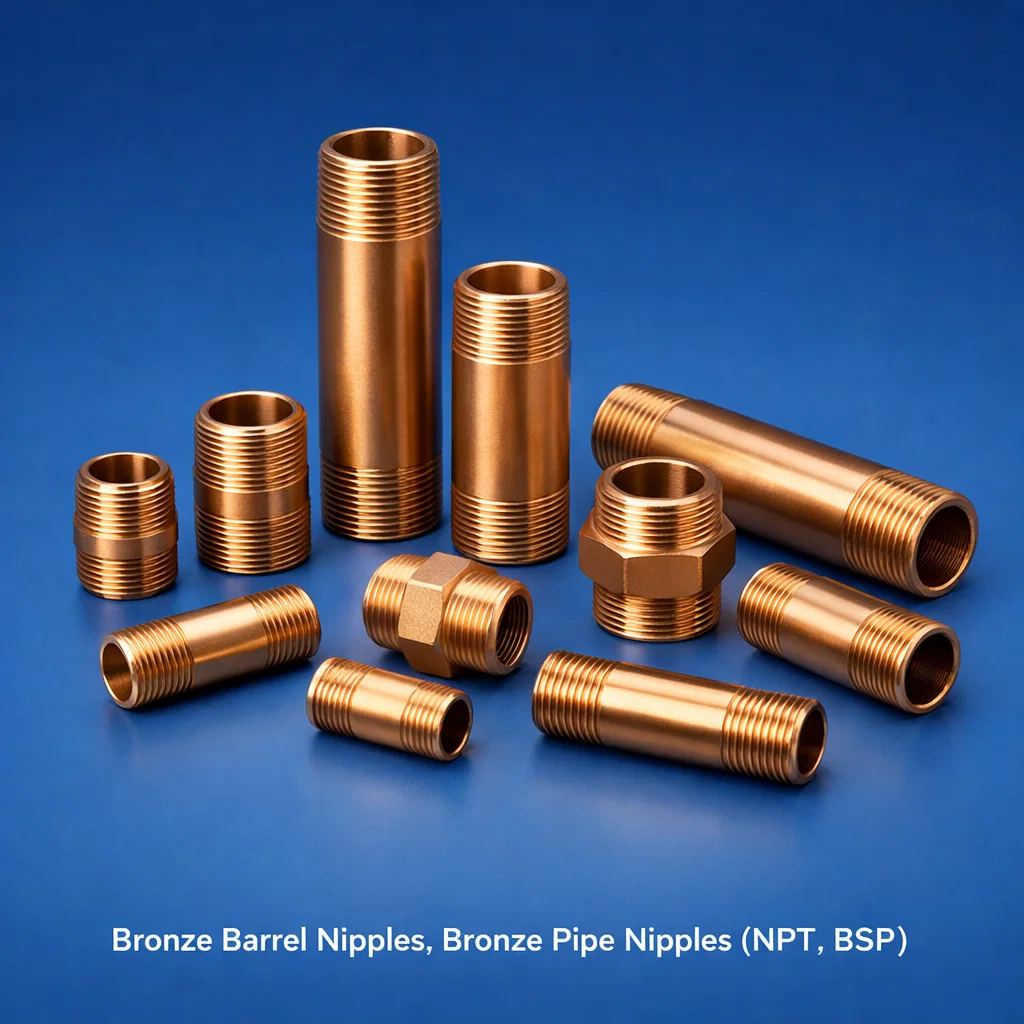

Bronze Barrel Nipples, Bronze Pipe Nipples (NPT, BSP)

Overview: Bronze Barrel Nipples and Bronze Pipe Nipples (NPT, BSP)

Brass & Copper Parts manufactures precision Bronze Barrel Nipples and Bronze Pipe Nipples in NPT (ASME B1.20.1) and BSP (ISO 7/1, BS 21) thread forms from its ISO 9001:2015 certified facility in Jamnagar, India. Bronze pipe nipples are short-length externally threaded pipe fittings used to connect two female-threaded pipe fittings, valves, or equipment ports. They are produced from LG2 gunmetal (ASTM B62 / BS 1400 LG2 / EN CC491K) and naval brass (C46400 / CW712R) in sizes from 1/8″ (DN6) to 4″ (DN100) NPT and BSP. Nipple configurations include barrel nipples (close nipples), hex nipples, long nipples, tank nipples, and reducing nipples. We export to OEM buyers, marine fitting distributors, pump and valve OEMs, and industrial piping contractors across the USA, UK, Europe, Australia, and the Middle East.

What is a Bronze Barrel Nipple?

A barrel nipple (also called a close nipple, barrel nipple, or short nipple) is a fully-threaded pipe nipple in which the two external threads meet at or near the centre of the fitting with no plain centre shank. Both ends carry the same size thread. The term “barrel” refers to the thick-walled, full-body construction that gives the fitting its characteristic barrel-like appearance when both thread helices meet in the centre. Barrel nipples provide the shortest possible connection between two female-threaded fittings when centre-to-centre distance needs to be minimised. Bronze barrel nipples in LG2 gunmetal or naval brass are widely used in marine piping, fire protection systems, steam service, hydraulic manifolds, and corrosion-resistant industrial piping where the wall thickness of a full barrel nipple provides greater structural integrity than thin-wall welded tube nipples.

Key Features of Bronze Pipe Nipples

• Full Machined Construction: Bronze barrel and hex nipples are CNC-machined from solid LG2 gunmetal or naval brass bar stock, not roll-formed from tube, ensuring uniform wall thickness, accurate thread form, and absence of seam defects.
• Marine and Seawater Grade: LG2 gunmetal (C83600) and naval brass (C46400) are inherently resistant to dezincification, seawater corrosion, and galvanic corrosion in copper alloy piping systems.
• Broad Thread and Size Range: NPT 1/8″ to 4″ per ASME B1.20.1; BSP taper 1/8″ to 4″ per ISO 7/1; same-end and reducing configurations available.
• High Pressure and Steam Rated: Class 150 (300 PSI WOG) and Class 300 bronze nipples; steam service to 150 PSI SWP (saturated steam, Class 150).
• Multiple Configurations: Close/barrel, hex, long (defined length), tank (with hex centre), and reducing nipples available in standard and custom lengths.
• Clean Thread Form: Taper thread angle (1:16) and thread pitch conform to ASME B1.20.1 (NPT) or ISO 7/1 (BSPt) tolerance class. All nipples gauged with Go/No-Go taper thread gauges.
• Galvanic Compatibility: LG2 gunmetal and naval brass nipples are galvanically compatible with copper, bronze, brass, and gunmetal piping system components, eliminating galvanic cell formation.

Technical Specifications: Bronze Pipe Nipple Alloys

International Bronze / Naval Brass Grade Equivalents

Bronze Pipe Nipple Types and Dimensional Range

Product Types and Variants

Bronze Barrel Nipples (Close Nipples) – NPT and BSP

Bronze close nipples in LG2 gunmetal or naval brass are fully threaded from end to end, with the two NPT or BSP taper thread helices meeting at the centre body. This creates the shortest possible rigid connection between two female-threaded fittings. Available in 1/8″ to 4″ NPT per ASME B1.20.1 and 1/8″ to 4″ BSPt per ISO 7/1. Manufactured from LG2 gunmetal bar stock by CNC turning for sizes up to 2″, and from cast and machined blanks for 2.5″ to 4″. Thread taper angle and pitch tolerance comply with ASME B1.20.1 Class 2 (NPT) and ISO 7/1. Barrel nipples are gauged 100% with Go/No-Go taper thread plug and ring gauges traceable to NIST/NPL.

Bronze Hex Nipples – NPT and BSP

Hex nipples have a hexagonal centre body with NPT or BSP taper threads on both ends. The hex body allows installation and removal with an open-end or box spanner without the pipe wrench damage risk associated with plain-body nipples. Available in 1/8″ to 2″ NPT and BSPt. Hex across-flat dimensions comply with ASME B16.11 or ISO 4145 dimensional standards. LG2 gunmetal hex nipples are widely used in marine piping systems, instrument connections, and hydraulic panel assemblies where a spanner-accessible fitting is preferred over a pipe-wrench-only design. Same-end and reducing (different thread size each end) configurations are available.

Bronze Long Nipples – NPT and BSP

Long nipples have a plain (unthreaded) centre section between two externally threaded ends, providing a defined standout length for penetrating bulkheads, tank walls, manifold faces, or instrument panel cutouts. Standard lengths follow ASME B16.3 (NPT) or are produced to specified overall or thread-to-thread dimensions. Available in 1/8″ to 4″ NPT and BSP in lengths from 50 mm (2″) to 300 mm (12″). Custom lengths are produced from bar stock by CNC turning. LG2 gunmetal is standard; naval brass and silicon bronze available for specific applications.

Bronze Tank Nipples

Tank nipples (also called tank connectors or through-wall nipples) have a long hex body that passes through a tank wall, bulkhead, or panel, with threads on both sides to accept lock nuts or flanged fittings for through-wall piping connections. Widely used in marine freshwater tanks, HVAC expansion vessels, fire protection tank outlets, chemical storage tank connections, and hydraulic reservoir fittings. Available in 1/4″ to 2″ NPT and BSP; hex body length specified by customer based on wall thickness. Manufactured from LG2 gunmetal by CNC turning with knurled or hex body centre for rotation prevention during lock-nut tightening.

Bronze Reducing Nipples

Reducing nipples have different thread sizes on each end (e.g., 3/4″ NPT × 1/2″ NPT, male both ends), allowing a pipe or hose to transition to a smaller size in a single compact fitting. Available in NPT and BSP taper in reducing combinations from 1/4″ down to 1/8″ through 2″ down to 1″. LG2 gunmetal construction provides corrosion resistance in wet environments. The taper on each end is machined to its own independent Go/No-Go gauge; concentricity between the two thread axes is maintained within 0.1 mm TIR. Widely used in refrigeration, HVAC, compressed air, and chemical process piping.

Swaged (Concentric Reducer) Nipples

Swaged bronze nipples have a concentric tapered body that transitions smoothly from a larger bore at one end to a smaller bore at the other, with threaded connection points at each end. The swaged profile minimises flow turbulence at the reduction point compared to concentric reducer bushings. Used in liquid process systems, hydraulics, and compressed air supply lines where laminar flow transition is preferred. Produced from LG2 gunmetal by CNC turning and swaging from hexagonal bar stock; sizes from 1/2″ × 1/4″ to 2″ × 1″.

Applications by Industry

Manufacturing Process

Step 1 – Material Verification: LG2 gunmetal or naval brass bar/rod is received with EN 10204 3.1 MTCs from certified mills. XRF analysis confirms alloy composition per heat. Bar diameter and straightness are verified.

Step 2 – CNC Turning and Body Profiling: Bar stock is CNC-turned to produce the nipple OD, hex (if applicable), centre section, and transition profiles. For barrel nipples, the full OD is turned to the root diameter of the taper thread. Concentricity between both ends is held within 0.05 mm TIR.

Step 3 – External Thread Machining: NPT or BSPt taper threads are single-point cut on CNC turning centres using calibrated taper thread inserts. Thread pitch, taper angle, and thread form are maintained within ASME B1.20.1 or ISO 7/1 Class 2 tolerances. Long reach tooling is used for barrel nipples where both ends must be threaded simultaneously.

Step 4 – Thread Gauging: Every nipple is gauged with Go/No-Go taper thread ring gauges (NPT or BSPt). Gauge standoff from the reference plane is verified to confirm engagement length compliance. Gauges are calibrated to NIST/NPL/NABL traceability.

Step 5 – Deburring and Cleaning: Vibratory tumbling removes thread start and end burrs. Ultrasonic alkaline cleaning removes coolant residue. Thread entries are inspected for laps, tears, and incomplete form.

Step 6 – Pressure Testing (on Request): Hydrostatic pressure testing at 1.5× rated WOG pressure per ASME B16.14. Leak testing by air under water or helium mass spectrometer for critical applications.

Step 7 – Marking and Packing: Size, material grade, and thread type markings stamped or laser-marked on hex body or centre section where space permits. Packing in polythene bags by size and thread standard with EN 10204 3.1 MTC, dimensional report, and Certificate of Origin.

Quality Standards and Certifications

• ISO 9001:2015 Certified Quality Management System
• Material per ASTM B62 (C83600 / LG2), ASTM B21 (C46400 / Naval Brass), BS 1400 LG2, EN 1982 (CC491K)
• Thread form per ASME B1.20.1 (NPT), ISO 7/1 / EN 10226-1 (BSPt), ISO 228-1 (BSPP)
• Dimensional compliance with ASME B16.3 (threaded fittings), MSS SP-83 (union nipples)
• 100% taper thread gauging with Go/No-Go ring gauges (NIST/NPL traceable)
• EN 10204 Type 3.1 material test certificates with composition and mechanical properties
• Lloyds Register and DNV GL third-party inspection available for marine classification
• Hydrostatic pressure testing at 1.5× WOG per lot (on request)

Why Choose Brass & Copper Parts for Bronze Pipe Nipples

• Full Machined Construction: All bronze nipples are CNC machined from solid bar or cast blanks—not formed from tube—ensuring consistent wall thickness, accurate thread, and marine-grade strength.
• NPT and BSP Expertise: Both NPT and BSP thread standards produced in the same facility with dedicated gauging stations; cross-standard orders filled from one supplier.
• Marine Classification Ready: Lloyds Register and DNV GL inspection arranged for naval and offshore nipple supply; material certificates reference LG2 / BS 1400 and ASTM B62 equivalence.
• Custom Lengths: Long nipples, tank nipples, and reducing nipples in non-standard lengths produced from engineering drawings with 2–4 week turnaround.
• Competitive Pricing: 30–45% cost advantage vs. European and US bronze nipple suppliers for equivalent LG2 / C83600 quality with full certification.
• Volume Flexibility: From 100-piece proto orders to 100,000+ piece annual production runs; stocked common sizes available for quick shipment.

Frequently Asked Questions

What is the difference between a barrel nipple and a close nipple?

The terms are used interchangeably in most markets. A barrel (or close) nipple is fully threaded with both thread helices meeting at the centre with no plain shank. A “short nipple” technically has a very short plain centre section; a “long nipple” has a longer plain section of defined length. Our barrel nipples conform to the fully-threaded close nipple definition.

Are LG2 gunmetal nipples suitable for potable water?

Yes. LG2 gunmetal (C83600, CuSn5Zn5Pb5) has low zinc content (4–6%) and is inherently resistant to dezincification, meeting the base material requirements of WRAS (UK) and WaterMark (Australia) for potable water contact. Lead content (4–6%) requires WRAS product listing for the specific fitting size and form if used in domestic potable water supply. We supply WRAS-supporting material documentation.

What is the pressure rating of bronze pipe nipples?

Class 150 LG2 gunmetal bronze nipples: 300 PSI WOG (Water, Oil, Gas) at ambient temperature; 150 PSI SWP (saturated steam). Class 300: 750 PSI WOG. Naval brass nipples are rated Class 150 maximum for water and non-steam service.

Can you supply BSP and NPT nipples from the same order?

Yes. We produce both NPT (ASME B1.20.1) and BSP (ISO 7/1 / BS 21) thread forms in LG2 gunmetal and naval brass from the same facility. Mixed-thread orders for different system connections are routine.

What is the maximum size of bronze barrel nipple you produce?

Standard production: 4″ NPT and BSP barrel/close nipples in LG2 gunmetal. For 4″ close nipples, minimum wall thickness at the thread root is verified to ensure pressure integrity. Sizes above 4″ are available by special order using cast and machined blanks.

Do you gauge every nipple before dispatch?

Yes. Every bronze pipe nipple is gauged with Go/No-Go taper thread ring gauges before dispatch. Gauge standoff from the reference plane is measured to confirm taper engagement length compliance. Gauge calibration records are maintained and available for customer QA audit.

What sealant should be used on bronze NPT and BSP nipples?

PTFE tape (white PTFE for water/oil/gas, yellow PTFE for gas per EN 751-3) and anaerobic pipe sealants (Loctite 577, Uniseal) are suitable for both NPT and BSPt bronze nipples. Hemp-and-PTFE jointing compound is traditional for BSPt in plumbing. Do not use PTFE tape on BSPP (parallel thread) nipples—a face seal is required.

Can you supply reducing nipples in non-standard reducing combinations?

Yes. Any reducing combination within our size range (1/8″ to 4″ NPT or BSP) can be produced as a custom reducing nipple by CNC turning from bar stock. Lead time for custom combinations is 2–4 weeks from drawing or specification confirmation.

What is the minimum order quantity for bronze pipe nipples?

Standard sizes (NPT or BSP): 100 pieces per size. Reducing and tank nipples: 200 pieces minimum. Custom lengths: 500 pieces minimum. Mixed-size orders: 500 pieces total minimum.

Do you supply bronze nipples with Lloyds Register certificates?

Yes. Lloyds Register (LR) and DNV GL witnessing of LG2 gunmetal nipple production and pressure testing can be arranged for marine classification projects. Third-party inspection costs are additional to product price. Please specify at enquiry stage.

Request a Quote for Bronze Barrel Nipples and Pipe Nipples

Specify thread standard (NPT/BSP/BSPt), size (1/8″–4″), nipple type (barrel/hex/long/reducing/tank), material (LG2/C83600 or naval brass C46400), quantity, and required certifications. Our team will respond within 24–48 hours.
