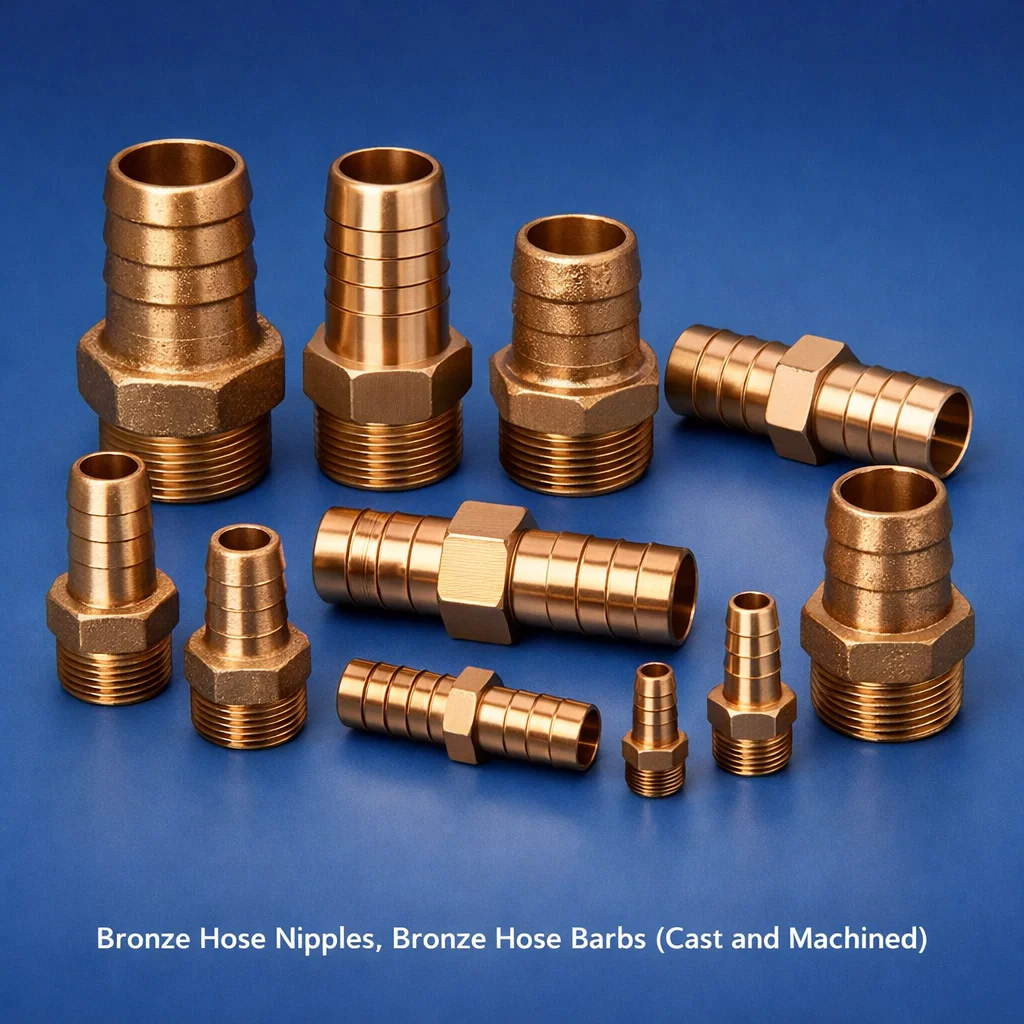

Bronze Hose Nipples, Bronze Hose Barbs (Cast and Machined)

Overview: Bronze Hose Nipples and Bronze Hose Barbs (Cast and Machined)

Brass & Copper Parts manufactures Bronze Hose Nipples and Bronze Hose Barbs in both cast and precision-machined forms from its ISO 9001:2015 certified facility in Jamnagar, India. Bronze hose nipples and hose barbs are threaded-end fittings with a barbed or serrated stem that inserts into the bore of a flexible hose, creating a grip-tight push-in connection retained by hose clamps or hose ferrules. Our bronze hose fittings are produced from LG2 gunmetal (ASTM B62 / BS 1400 LG2 / EN CC491K, C83600) and naval brass (C46400 / CW712R) in NPT (ASME B1.20.1), BSP (ISO 7/1 / EN 10226), GHT (Garden Hose Thread, ASME B1.20.7), and barbed stem configurations. Hose bore compatibility ranges from 5/16″ (8 mm) to 2″ (50 mm) hose ID; thread end sizes from 1/8″ NPT to 2″ NPT and 1/8″ BSP to 2″ BSP. Applications span marine freshwater and seawater hose connections, irrigation, compressed air, fuel and oil delivery hoses, fire protection, and industrial fluid transfer in the USA, UK, Europe, Australia, and the Middle East.

What Are Bronze Hose Nipples and Hose Barbs?

A hose nipple (or hose barb) fitting consists of two primary sections: a threaded connection end (male NPT, BSP, or other thread) that screws into a valve, pump, manifold, or pipe fitting; and a hose stem with one or more annular barbs (raised ridges) that grip the inside of a flexible hose when the hose is pushed over the stem. The barb geometry—including barb OD, barb angle, barb spacing, and stem length—determines the pull-out force and sealing performance of the hose connection. Bronze is the preferred material for marine, potable water, steam, and corrosion-resistant hose connections because of LG2 gunmetal’s dezincification resistance, seawater compatibility, and galvanic compatibility with copper and bronze piping systems into which it is installed.

Key Features of Bronze Hose Nipples and Hose Barbs

• Marine and Seawater Grade: LG2 gunmetal (C83600) and naval brass (C46400) are inherently dezincification-resistant and are Lloyds Register / DNV GL approved for seawater hose connections in marine piping systems.
• Cast and Machined Options: Small sizes (1/8″–1/2″) are precision-machined from bar stock for tightest dimensional tolerances; larger sizes (3/4″–2″) are available sand-cast in LG2 gunmetal for cost-effective supply at high volumes.
• Full Thread Standard Range: NPT (ASME B1.20.1), BSP taper (ISO 7/1), BSP parallel (ISO 228), GHT (ASME B1.20.7), and metric thread ends available from the same supplier.
• Barb and Stem Geometry Variants: Single-barb, multi-barb (2–5 barbs), and smooth stem (for hose ferrule clamp) configurations; barb angle and OD proportioned for flexible rubber, PVC, silicone, and reinforced hose types.
• Pressure Rating: Machined LG2 nipples rated to 150 PSI WOG (Class 150) with single-worm hose clamp; higher working pressures achievable with double-ear ferrule crimping or Jubilee-clip and socket-weld hose end assemblies.
• High Temperature Compatibility: LG2 gunmetal suitable for steam condensate, hot water (to 120°C), and fuel oil hose connections; naval brass suitable to 100°C water service.
• Hose Compatibility: Barb ODs sized for standard hose ID classes: 5/16″ (8 mm), 3/8″ (10 mm), 1/2″ (12 mm), 5/8″ (16 mm), 3/4″ (19 mm), 1″ (25 mm), 1-1/4″ (32 mm), 1-1/2″ (38 mm), 2″ (50 mm).

Technical Specifications: Bronze Hose Fitting Alloys

International Bronze Hose Fitting Grade Equivalents

Hose Barb and Nipple Size Range

Product Types and Variants

Bronze Single-Barb Hose Nipples (NPT and BSP)

Single-barb hose nipples are the most basic bronze hose fitting, with a single raised barb on the stem providing hose retention when secured with a worm-drive hose clamp (Jubilee clip). Available in 1/8″ to 2″ NPT and BSP thread ends for hose IDs from 5/16″ to 2″. LG2 gunmetal construction for marine service; naval brass for freshwater and general industrial applications. Single-barb nipples are most common in light-duty hose connections with moderate pressure (≤ 50 PSI), frequent hose change requirements, or applications where the hose ID is significantly larger than the barb OD, allowing easy assembly. Thread gauged 100% with Go/No-Go taper ring gauges; barb OD verified with digital verniers against drawing tolerance.

Bronze Multi-Barb Hose Nipples (Serrated Stem)

Multi-barb hose nipples have two to five sequential barbs (annular ridges) along the stem length, each successively slightly larger in OD than the previous, providing progressive hose grip and resistance to pull-out. The multiple barbs also prevent hose “breathing” (pulsating axial movement) in high-pressure or pulsating flow applications such as fuel injection return lines, hydraulic cylinder drain hoses, and fire pump suction hoses. Available in 1/4″ to 1-1/2″ NPT and BSP for hose IDs 3/8″ to 1-1/2″. LG2 gunmetal is standard; phosphor bronze C51000 is available for higher-pressure marine applications. Multi-barb nipples are specified where pull-out force requirements exceed 100 N without ferrule crimping.

Machined Bronze Hose Barbs with Female Thread (Socket End)

Female-threaded hose barbs (socket hose barbs) have an internally threaded socket end (female NPT, BSP, or metric) connecting to a male-threaded pipe or fitting, and a barbed stem on the opposite end for hose connection. These allow in-line connection of a flexible hose into a female-threaded port without an intermediate adapter. Available in 1/8″ to 1″ female NPT and BSP with barbed stems for 5/16″ to 1″ hose ID. Machined from LG2 gunmetal bar stock on CNC turning centres; socket bore is tapped or single-point threaded to 6H (metric) or 2B (ANSI) class. Used in instrument connections, engine cooling hose ports, and heat exchanger hose adaptors.

Cast Bronze Hose Elbow Barbs (90° and 45°)

Cast bronze hose elbow barbs provide a 90° or 45° change of direction from the threaded end to the barbed hose stem, useful in space-constrained installations where a straight nipple would require the hose to make a tight bend. Available in 1/4″ to 1″ NPT and BSP thread ends for 3/8″ to 1″ hose ID in 90° configuration; 45° elbows available in 1/4″ to 3/4″. Produced by LG2 gunmetal sand casting with CNC finish-machining of the thread and barb profiles. Barb OD and taper conform to the same standard as straight nipples for compatibility with identical hose and clamp specifications. Casting soundness is verified by visual inspection and hydrostatic testing per lot.

Cast Bronze Hose Tee Barbs (Three-Way Hose Connectors)

Bronze hose tee barbs allow a single threaded pipe connection to supply two hose legs simultaneously, or to create a T-junction in a flexible hose run with one threaded and two barbed ports. Available in equal-bore and reducing configurations: 1/4″ to 1″ thread end with equal hose tees (same barb size on both hose ports) or reducing tees (different barb ODs for main and branch hose sizes). Sand-cast in LG2 gunmetal with all three ports machined on CNC turning centres. Applications include cooling water distribution to twin-engine configurations, irrigation manifolds, and fire-fighting portable monitor supply tees.

Bronze Garden Hose Barbs (GHT Thread)

Garden hose thread (GHT) hose nipples and barbs per ASME B1.20.7 in bronze are produced for agricultural irrigation, municipal water supply, and landscaping applications. GHT (3/4″-11.5 NH thread) is the standard US garden hose thread; bronze GHT fittings provide superior corrosion resistance and long service life compared to zinc die-cast or aluminium garden hose fittings in saline, acidic, or chlorinated water environments. Available in male GHT to barb, female GHT to barb, and double-barb configurations for hose-to-hose splicing. Lead-free bronze (C69300 / ECO Brass) options available for potable water hose connections compliant with NSF 372 and California Prop. 65.

Applications by Industry

Manufacturing Process: Cast vs. Machined Bronze Hose Fittings

Machined Hose Nipples (Small Sizes, 1/8″–3/4″):

Step 1 – Bar Stock Preparation: LG2 gunmetal or naval brass bar is received with XRF-verified composition. Bar is cut and deburred for CNC turning.

Step 2 – CNC Turning – Thread and Barb Profile: External male thread (NPT or BSP taper) is single-point cut. Barb profiles are turned with precision carbide form tools; barb OD, taper angle, and interbarb spacing are held to drawing tolerance ±0.1 mm. Stem OD is concentric with thread axis within 0.05 mm TIR.

Step 3 – Thread Gauging and Dimensional Inspection: 100% taper ring gauge check on NPT or BSP threads. Barb OD and stem length verified by AQL sampling.

Step 4 – Deburring and Cleaning: Vibratory tumbling removes thread and barb burrs. Ultrasonic alkaline cleaning removes coolant residue.

Cast Hose Nipples and Barbs (Larger Sizes, 3/4″–2″, Elbows, Tees):

Step 1 – Sand Casting: LG2 gunmetal ingot is melted and cast in sand moulds. Casting quality is verified by visual inspection, dimensional check, and radiographic testing for critical applications. Castings are fettled and shot-blasted.

Step 2 – CNC Machining: Cast blanks are CNC-turned to machine thread, barb, and bore profiles. Critical thread and sealing surfaces are finish-machined to drawing tolerances.

Step 3 – Pressure Testing: Cast hose nipples and barbs are hydrostatic pressure tested at 1.5× rated WOG per batch. Air-under-water bubble test for body leak verification.

Step 4 – Marking and Packing: Size, thread type, and material grade stamped on hex body or body. Packing in poly bags or cartons with EN 10204 3.1 MTC, inspection report, and Certificate of Origin.

Quality Standards and Certifications

• ISO 9001:2015 Certified Quality Management System
• Material per ASTM B62 (C83600 / LG2 castings), ASTM B21 (C46400 / Naval Brass bar), BS 1400 LG2, EN 1982 (CC491K)
• Thread form per ASME B1.20.1 (NPT), ISO 7/1 / EN 10226-1 (BSPt), ISO 228-1 (BSPP), ASME B1.20.7 (GHT)
• Hydrostatic pressure testing at 1.5× WOG per batch for cast fittings
• 100% taper thread gauging (Go/No-Go ring gauges, NIST/NPL traceable) on machined nipples
• Lloyds Register and DNV GL third-party inspection available for marine classification orders
• EN 10204 Type 3.1 MTC with Cu, Sn, Zn, Pb composition stated
• Lead-free (C69300 ECO Brass) option for NSF 372 / California Prop. 65 potable water applications

Why Choose Brass & Copper Parts for Bronze Hose Nipples and Hose Barbs

• Cast and Machined Under One Roof: Both sand-cast LG2 gunmetal fittings and precision-machined bar stock nipples produced in one facility with one quality system, single-source supply for all sizes.
• Full Hose Size and Thread Range: 5/16″ to 2″ hose bore; NPT, BSP, GHT, and metric threads—complete hose fitting portfolio from one supplier without sub-contracting.
• Marine Classification Capability: Lloyds Register and DNV GL inspection arranged for naval and offshore projects; LG2 gunmetal material traceability from mill to finished fitting.
• Lead-Free Option: C69300 ECO Brass hose barbs for NSF 372 and California Prop. 65 potable water compliance, produced and certified from the same facility as standard LG2 products.
• Competitive Pricing: 30–45% cost advantage vs. European LG2 hose fitting suppliers for equivalent material and certification; FOB/CIF/DDP Incoterms to USA, UK, Australia, Europe.
• Custom Barb Geometry: Non-standard barb OD, barb count, stem length, and thread combinations produced from customer engineering drawings in 3–5 weeks.

Frequently Asked Questions

What is the difference between a hose nipple and a hose barb?

The terms are largely interchangeable in the industry. Technically, a “hose barb” emphasises the barb geometry on the stem; a “hose nipple” emphasises the nipple (short externally threaded fitting) aspect of the component. Both describe the same type of fitting: a threaded-end + barbed-stem connector for flexible hose attachment. We use both terms based on customer preference.

What hose types are compatible with bronze hose barbs?

Bronze barb fittings are compatible with natural rubber hose, EPDM rubber hose, PVC (clear and reinforced), silicone hose, polyurethane hose, and braided flexible reinforced hose. The barb is sized to the hose ID; the hose wall must be thick enough to accommodate the barb OD diameter expansion without splitting. Specific barb OD-to-hose ID compatibility is provided on request for each hose type and barb size.

Do bronze hose nipples need hose clamps?

Yes. Single-barb nipples require a worm-drive hose clamp (Jubilee clip) or double-ear crimp ferrule to retain the hose at working pressure. Multi-barb nipples provide improved pull-out resistance and may operate at low pressures (≤ 15 PSI) without a clamp, but a clamp is always recommended at rated working pressure. Ferrule crimping (swaged end) provides the highest pull-out strength and is used for pressures above 100 PSI.

Are bronze hose fittings suitable for fuel and oil service?

Yes. LG2 gunmetal and naval brass are compatible with petroleum fuels (diesel, gasoline, marine diesel, lubricating oils) and hydraulic oils. Bronze does not corrode in fuel environments. Hose selection (fuel-resistant rubber or PTFE liner) is the customer’s responsibility based on fluid compatibility. We confirm material compatibility of the bronze fitting with common fuels and oils on request.

What is the maximum working pressure for bronze hose barbs?

With a standard worm-drive hose clamp: 150 PSI WOG for machined LG2 nipples in Class 150 applications. With double-ear crimp ferrules (swaged end): 200–350 PSI depending on hose wall thickness, clamp type, and hose ID. Higher pressures require hose socket-weld (socketweld end cap) connection rather than barb-and-clamp assembly.

Are cast bronze hose fittings as strong as machined ones?

For elbows and tees where the casting geometry is inherently strong, LG2 sand castings are fully adequate for the rated working pressure. For straight nipples, machined bar stock provides superior dimensional accuracy and tighter wall thickness tolerance than casting. Critical or high-pressure straight nipples are always machined from bar stock; cast elbow and tee hose barbs are produced from LG2 sand castings with hydrostatic pressure testing per lot.

Can you produce bronze hose barbs in lead-free alloy for potable water?

Yes. C69300 ECO Brass (Pb ≤ 0.09%) hose barbs are produced for potable water applications requiring NSF 372 lead-free compliance or California Prop. 65 (AB 1953) compliance. XRF Pb content verification is included with each lot. WRAS-supporting material documentation is also available.

What is the minimum order quantity for bronze hose nipples?

Standard machined nipples (NPT/BSP): 100 pieces per size and thread. Cast hose barbs (elbows, tees, large straight): 200 pieces minimum per configuration. Custom barb geometry or non-standard thread: 500 pieces minimum. GHT hose barbs: 100 pieces minimum.

Can you supply matching hose clamps with bronze barb fittings?

Yes. We can supply matching 316 stainless steel worm-drive hose clamps (Jubilee clips) sized for each bronze hose barb OD. Combined hose fitting and clamp kits are available. Hose clamps are sourced from accredited suppliers and supplied with the fitting to simplify customer procurement.

Do bronze hose fittings comply with BS 5120 (welding hose fittings standard)?

BS 5120 covers welding and cutting equipment hose fittings; for those applications (LPG/oxygen hoses), we produce specific BS 5120 / EN 559 compliant brass welding hose nuts and barbs (see our Brass Welding Hose Nuts product page). General marine and industrial bronze hose barbs are designed to ASME B1.20.1 / ISO 7/1 thread standards and customer dimensional drawings, not specifically to BS 5120.

Request a Quote for Bronze Hose Nipples and Hose Barbs

Specify thread standard (NPT/BSP/GHT/metric), thread size, hose bore (ID in mm or inches), barb configuration (single/multi/elbow/tee), material (LG2/C83600 or lead-free C69300), quantity, and any certifications required (LR/DNV GL/NSF 372/EN 10204 3.1). Our engineering team will respond within 24–48 hours with a quotation and compliance documentation plan.
