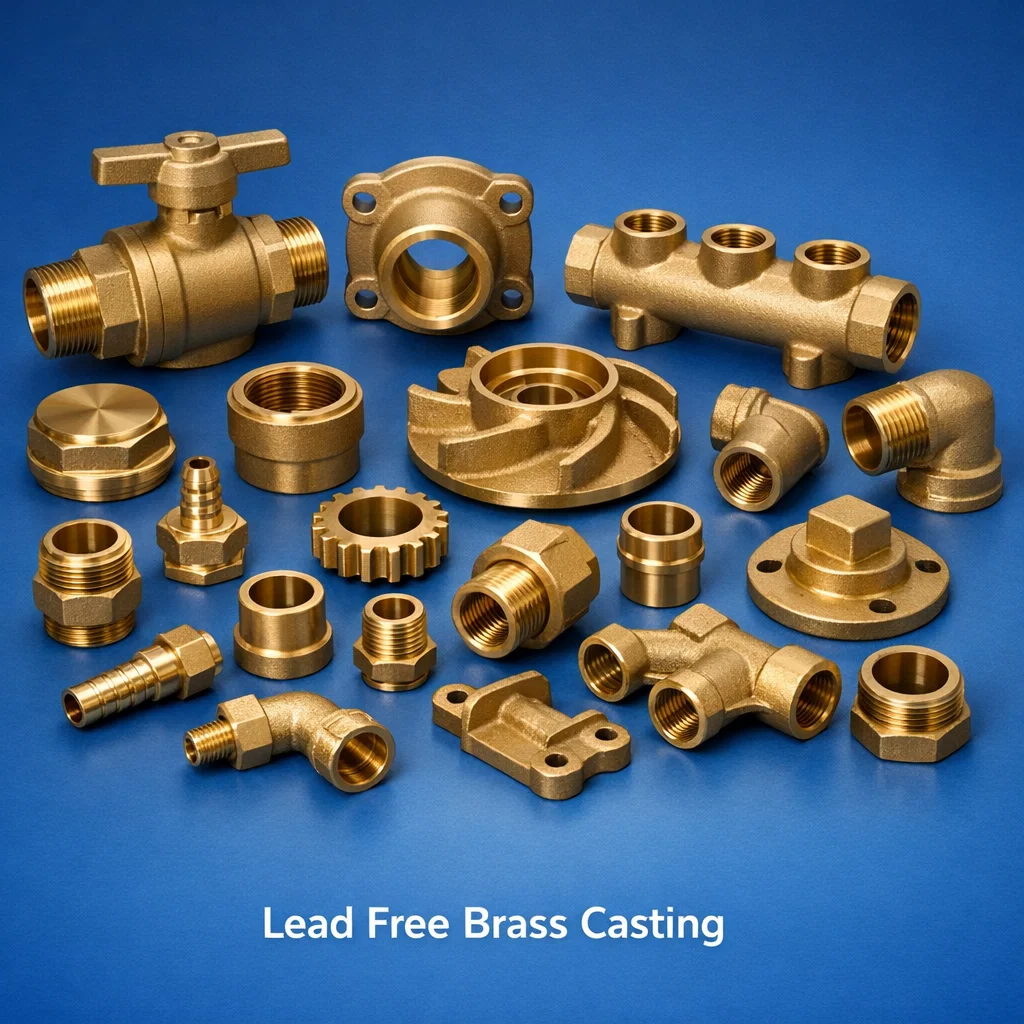

Lead Free Brass Casting

Lead free brass casting refers to copper-zinc alloy castings manufactured with lead content below 0.25% (wt), formulated to comply with RoHS, NSF/ANSI 61, California Proposition 65 (AB 1953), and EU Drinking Water Directive requirements. Traditional brass alloys contain up to 3% lead as a machining aid; lead free variants substitute bismuth, silicon, or selenium to achieve equivalent machinability while eliminating lead leaching into potable water systems. Brass & Copper Parts supplies lead free brass castings in C89550, C89833, C87850, DZR-LF, and silicon brass grades for plumbing, water infrastructure, gas fittings, medical devices, and food-grade equipment worldwide.

Product Overview

Lead free brass castings are produced by sand casting, die casting, investment casting, and gravity die casting processes. The alloys maintain excellent castability, moderate to good machinability, and corrosion resistance comparable to standard leaded brass grades. Silicon brass (C87850) offers the highest machinability among lead free alloys due to the silicon content acting as a solid lubricant during cutting. BiSn brass grades (C89833) use bismuth-tin as lead substitutes, providing chip-breaking characteristics suitable for precision turned components. All lead free brass castings from Brass & Copper Parts are tested per NSF/ANSI 61 Section 8 for weighted average lead content compliance, ensuring suitability for potable water contact applications.

Key Features

• NSF/ANSI 61 & AB 1953 compliant – Weighted average lead ≤0.25% for potable water contact
• RoHS and REACH compliant – Suitable for products sold in the EU and California
• Good machinability – Silicon and bismuth variants achieve machinability index of 60–80% relative to leaded brass
• Dezincification resistant (DZR-LF) – Arsenic-modified lead free grades for aggressive water conditions
• Pressure-tight castings – Suitable for plumbing valves, faucets, and gas fittings rated to 10–16 bar
• Cost-effective alternative – Competitive pricing versus stainless steel for water system components
• Recyclable alloy – Eco-friendly lifecycle management with full recyclability

Technical Specifications

International Grade Equivalents

Product Types and Variants

Lead Free Brass Sand Castings for Valves and Fittings

Sand cast lead free brass is used for producing valve bodies, gate valves, ball valves, check valves, and pipe fittings for potable water, gas, and low-pressure steam applications. These castings comply with NSF/ANSI 61 and EN 1982 CC499K (silicon brass) standards, providing assurance for use in drinking water infrastructure. Sand cast lead free brass components are produced in weights from 0.1 kg to 50 kg, with wall thicknesses from 3 mm to 50 mm. Dimensional tolerances conform to CT8–CT10 (ISO 8062). Secondary machining, thread cutting, and pressure testing (hydrostatic to 1.5× working pressure) are available as post-casting operations.

Lead Free Brass Die Castings for Plumbing Hardware

High-pressure die casting and gravity die casting of lead free brass alloys produce near-net-shape components with excellent surface finish and dimensional repeatability, suitable for faucet bodies, mixer valve housings, push-fit connectors, and shower hardware. Die cast lead free brass achieves dimensional tolerances of CT5–CT6 with minimal post-machining. Cycle times are short, making this process economical for medium-to-high volume production (1,000–100,000+ pieces per year). Brass & Copper Parts operates steel die tooling in-house for lead free brass die casting, enabling rapid prototyping and low-cost production tooling for new product development.

Silicon Brass Castings (C87850)

Silicon brass (C87850, CuSi4Zn3) is one of the most machinable lead free brass alloys available, achieving a machinability rating of 80% relative to standard leaded free-cutting brass (C36000 = 100%). The silicon content promotes a fine, short-chip microstructure enabling high-speed CNC turning and milling without tool wear penalties. Silicon brass castings are specified for precision plumbing fittings, gas meter components, and pneumatic valve bodies in markets where AB 1953 (California) and NSF/ANSI 372 compliance is mandated. Brass & Copper Parts supplies silicon brass castings with certified NSF documentation for use in US municipal water systems.

DZR Lead Free Brass Castings

Dezincification-resistant (DZR) lead free brass castings are manufactured from arsenic-modified alloys conforming to EN 12164 CW602N and BS 2874 CZ132. These are specifically designed for use in hot water systems, aggressive soft water conditions, and high-chloride environments where standard brass would experience dezincification corrosion. DZR-LF castings are commonly used for compression fittings, radiator valves, manifold blocks, and central heating components in the European and Australian markets where dezincification resistance is mandated by BS EN 12288 and AS 2345. Chemical composition is controlled to maintain arsenic levels of 0.02–0.10% for reliable corrosion inhibition.

Lead Free Brass Investment Castings

Investment casting of lead free brass alloys produces complex-geometry, near-net-shape components with fine surface finish (Ra 1.6–6.3 μm) and dimensional tolerances to CT5–CT7 (ISO 8062-3). This process is suitable for small, intricate fittings including manifold blocks, medical device components, dental equipment parts, and precision instrument housings where lead contamination is unacceptable. Investment cast lead free brass eliminates secondary machining on complex surfaces, reducing cost and lead time compared to machined bar stock. Tooling (wax dies) is produced in-house for short lead times, and production runs from 50 to 10,000 pieces per year are accommodated efficiently.

Lead Free Brass Castings for Gas Applications

Gas meter bodies, gas valve components, and LPG/natural gas fittings require materials that are both non-toxic and compatible with combustible gas service. Lead free brass alloys including C87850 and C89833 are used for gas service components, complying with EN 13959, EN 331, and ISO 7259 standards for gas valves and fittings. These castings undergo gas leak testing, burst pressure testing, and dimensional validation per applicable gas fitting standards. Brass & Copper Parts produces lead free brass gas fittings for BS 6755 / EN 1775 compliant systems, ensuring materials are certified for natural gas, LPG, and biogas service environments.

Applications by Industry

Manufacturing Process

Lead free brass castings are produced at Brass & Copper Parts using dedicated melting furnaces segregated from leaded alloy production to prevent cross-contamination. Raw materials include copper cathode, zinc ingot, and master alloys for bismuth, silicon, or selenium additions. Melt temperature is controlled at 1000–1050°C (silicon brass) or 950–1020°C (BiSn brass) with thermometric monitoring. Spectrometric analysis of each heat confirms lead content below 0.09% before pouring. Sand molds use chemically bonded sand for consistent dimensional accuracy. Post-casting operations include fettling, shot blasting, dimensional inspection to customer drawings, hydrostatic pressure testing, and NSF-compliant cleaning and packaging to prevent cross-contamination.

Quality Standards and Certifications

• NSF/ANSI 61 – Drinking water system components health effects
• NSF/ANSI 372 – Weighted average lead content ≤0.25%
• California AB 1953 / Prop 65 – Lead free plumbing compliance
• EN 1982 – European standard for copper alloy castings (CC499K, CC756S)
• ASTM B584 – Standard for copper alloy sand castings
• RoHS Directive 2011/65/EU – Restriction of hazardous substances
• ISO 9001:2015 – Quality management system
• EN 12288 – Dezincification resistance testing for applicable grades

Why Choose Brass & Copper Parts

Brass & Copper Parts maintains dedicated lead free brass casting lines with segregated raw material storage, dedicated furnaces, and isolated production environments to prevent lead contamination. Every heat is tested by XRF spectrometric analysis before pouring, and finished castings are re-tested to confirm weighted average lead compliance per NSF/ANSI 372 protocol. We supply NSF 61 documentation, RoHS declarations, and REACH compliance certificates with every shipment. Our export experience to North America, Europe, and Australia ensures we understand regional regulatory requirements and can pre-qualify components for use in regulated water utility and plumbing product certification programs.

Frequently Asked Questions

What does “lead free brass” mean under NSF/ANSI 372?

Under NSF/ANSI 372 and the US Safe Drinking Water Act (as amended by the Reduction of Lead in Drinking Water Act), “lead free” for brass means a weighted average lead content of 0.25% or less across all wetted surfaces. This is distinct from “zero lead” – small residual lead is permitted in the base alloy as long as the weighted average calculation across all wetted surface areas meets the 0.25% threshold.

Which lead free brass alloy has the best machinability?

C87850 (silicon brass) has the highest machinability rating among common lead free brass alloys, approximately 80% relative to free-cutting leaded brass C36000 (rated 100%). Bismuth brass (C89550, C89833) achieves approximately 70–75% machinability. Both are significantly better than other lead free alternatives such as stainless steel or aluminum bronze for high-speed CNC machining applications.

Can lead free brass castings be used in hot water systems?

Yes, but alloy selection is critical. Standard bismuth brass may be susceptible to dezincification in hot, soft water conditions. DZR-LF grades (CW602N, C35330 with arsenic) are specifically formulated for hot water systems and are required by BS EN 12288 in aggressive water conditions. Silicon brass (C87850) also has good dezincification resistance and is suitable for hot water service up to 90°C.

Is lead free brass more expensive than standard leaded brass?

Lead free brass alloys are typically 10–25% more expensive than equivalent leaded brass grades due to the higher cost of bismuth and silicon alloying elements, and the additional quality control measures required for certified compliance testing. However, for potable water, medical, and food-grade applications, the regulatory and liability benefits far outweigh the material cost premium.

What certifications do you provide with lead free brass castings?

Brass & Copper Parts provides: chemical analysis certificate (spectrometric, per EN 10204 3.1), NSF/ANSI 372 weighted average lead calculation worksheet, RoHS compliance declaration, REACH SVHC declaration, dimensional inspection report, and hydrostatic test certificate as standard documentation. Third-party NSF 61 system certification testing can be arranged at customer request for product registration purposes.

What is the difference between lead free brass and dezincification resistant (DZR) brass?

Lead free brass refers to any brass alloy with lead ≤0.25%. DZR brass is specifically engineered to resist dezincification corrosion (selective leaching of zinc) in aggressive water conditions through the addition of 0.02–0.10% arsenic. A DZR lead free brass (e.g., CW602N) is both lead free AND dezincification resistant, making it the optimal choice for hot water plumbing in soft or aggressive water areas.

What is the typical pressure rating for lead free brass castings?

Lead free brass sand castings for valve and fitting applications are typically rated at PN10–PN16 (10–16 bar working pressure at 20°C) as per EN 1982. Die castings are rated lower due to porosity considerations unless Hot Isostatic Pressing (HIP) or impregnation is applied. All pressure-retaining castings are hydrostatic tested at 1.5× rated pressure before dispatch.

Can you provide lead free brass castings in compliance with California Proposition 65?

Yes. California Proposition 65 (Prop 65) requires businesses to provide warnings when products expose consumers to listed chemicals above defined thresholds. Lead free brass castings with ≤0.25% weighted average lead content, as documented under NSF/ANSI 372, comply with the AB 1953 requirements applicable to plumbing products and should not trigger Prop 65 warnings for lead in normal use conditions. We supply full compliance documentation for US market submissions.

What minimum order quantities apply for lead free brass castings?

For sand castings, orders from 1 piece (prototype/sample) are accepted. For gravity die castings, MOQ is typically 50–100 pieces due to die preparation requirements. For high-pressure die castings, MOQ is 500–1000 pieces. Production lead times range from 3–6 weeks for sand castings and 6–10 weeks for new die tooling development. We accommodate both one-off development and ongoing production supply.

Request a Quote

Brass & Copper Parts specializes in NSF/ANSI 61 and RoHS compliant lead free brass castings for plumbing, gas, medical, and food-grade applications. Submit your drawing, required alloy grade, quantity, and compliance requirements for a technical review and competitive quotation.
